Quick Learner from New hampshire
Apr 9, 2024 6:46 pm

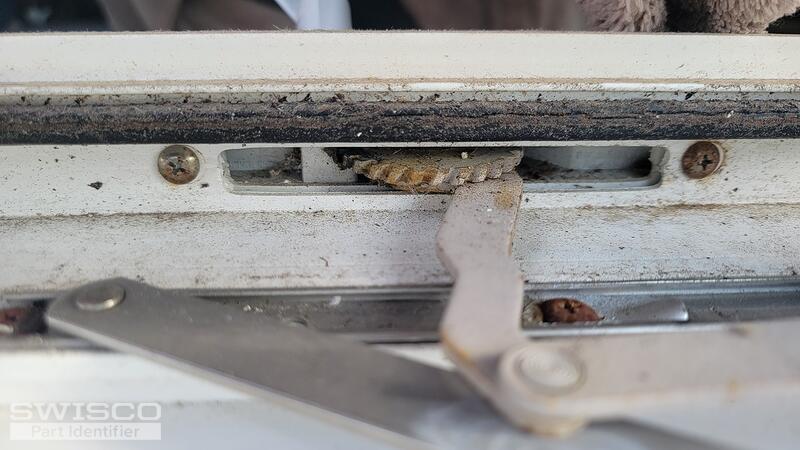

Bow window plastic piece that holds the metal bracket in place
2 user uploaded images
4 Replies
Thanks for posting. For the Tie Bar Guide, see our 39-448. For the crank handle, see the 39-114L. If you need to replace the operator it attaches to as well, see our 39-188. Just make sure the dimension of the link arm below matches what you have. Let me know if it differs.
For the hinge set, see if the 36-004-10 matches up. Let me know if you have any questions about any of this hardware.
Thanks for getting back to us. Bob's not here today, but I'll do my best to assist you.

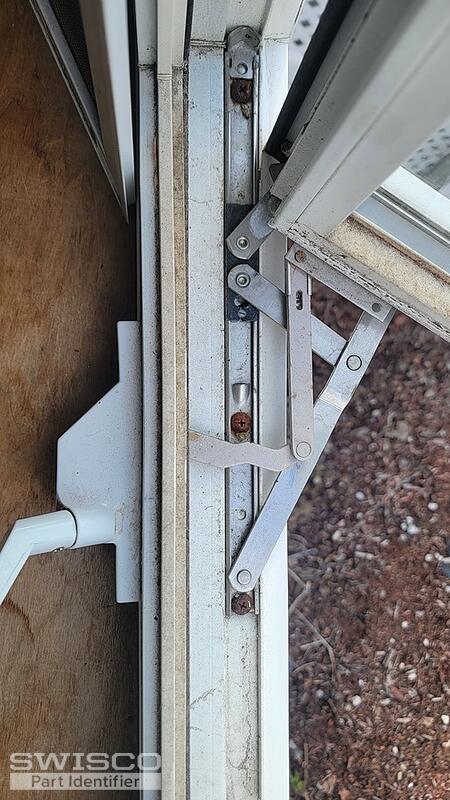

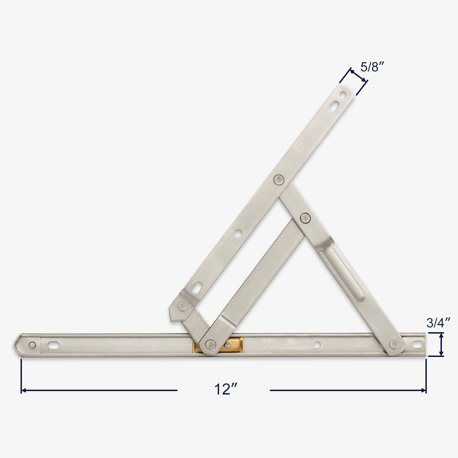

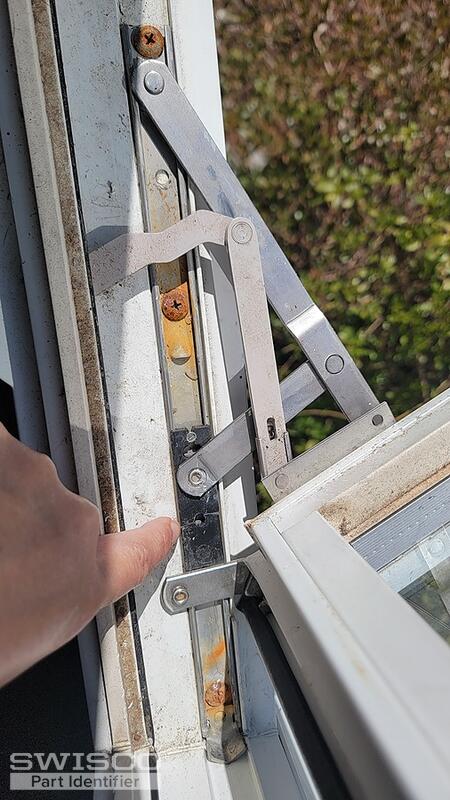

Based on your new measurement of the hinge track, and reviewing your photos above, I actually think our 36-022 might be a better match. This is a 12" 4-bar style hinge. It may not be exactly the same as your original, but as long as you replace the top and bottom at the same time, and as long as the base track is 12", then you should be okay.
