Bracket for multi lock and crank operation

Question

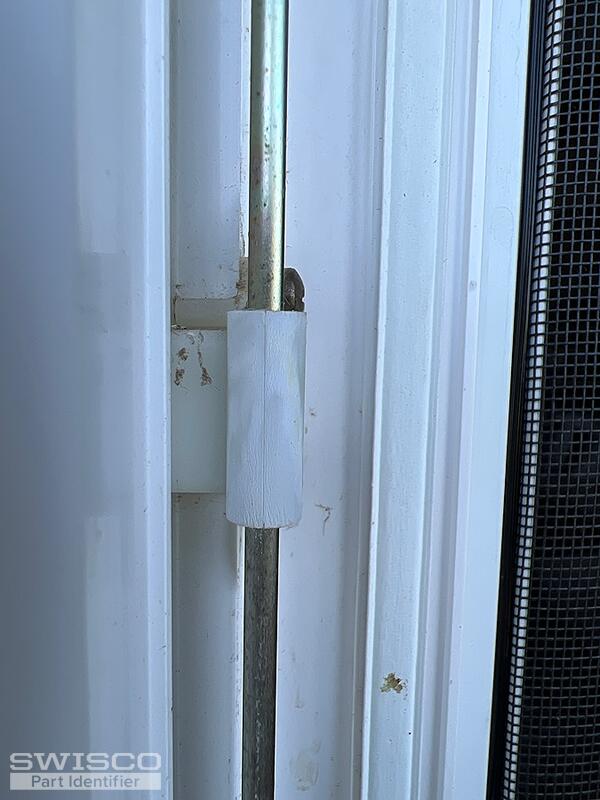

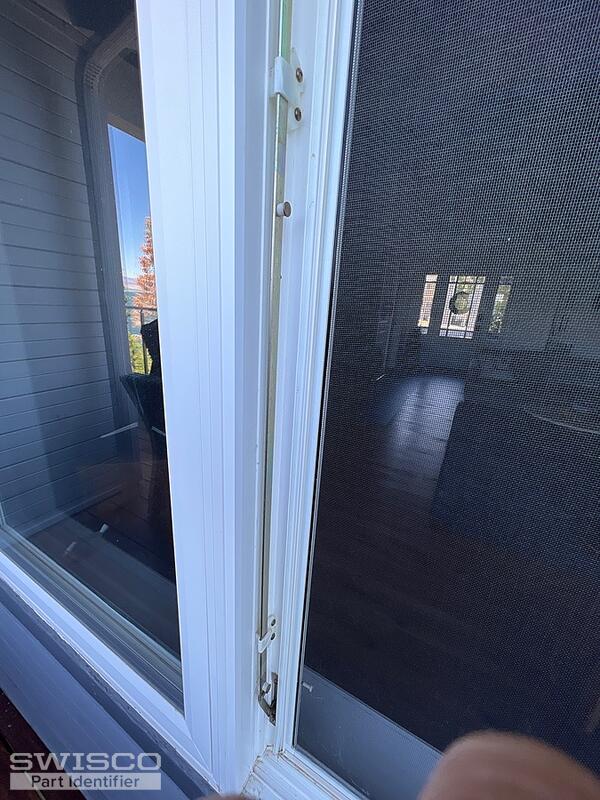

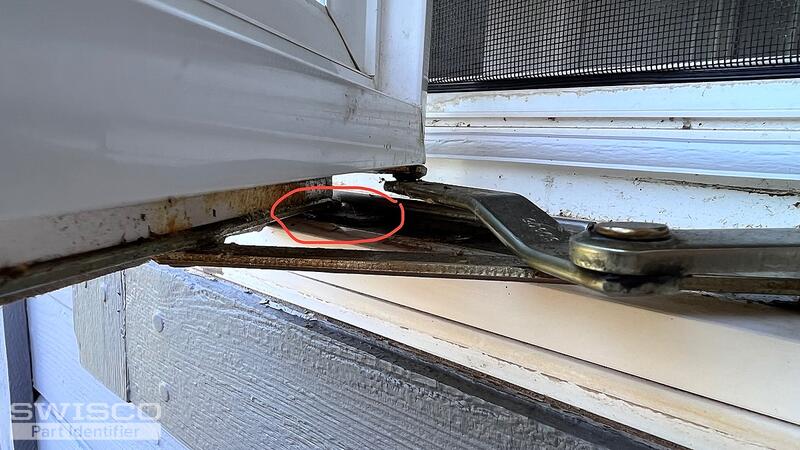

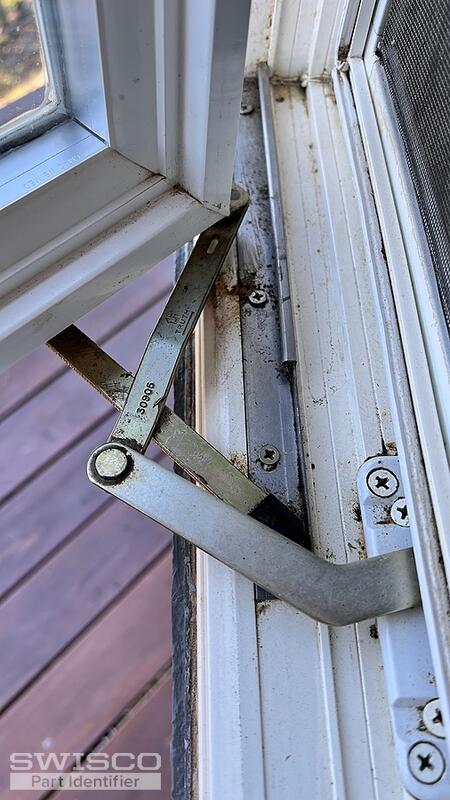

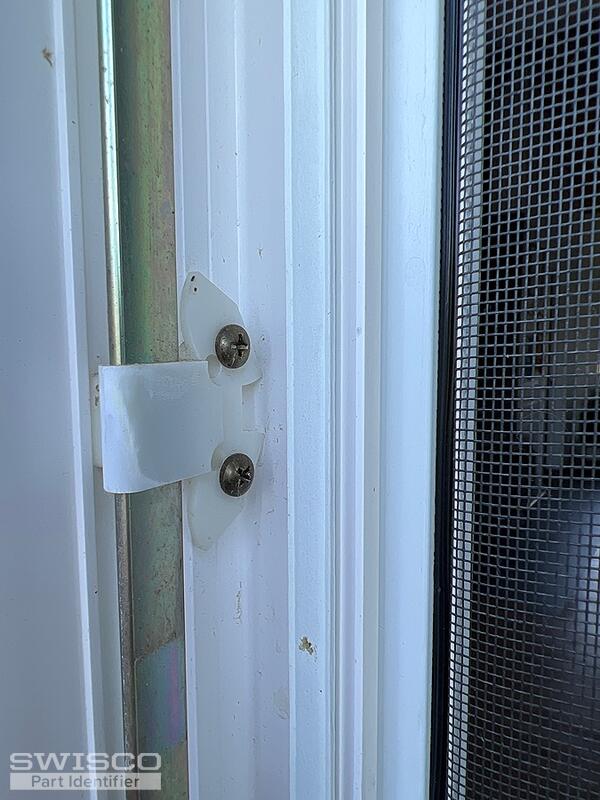

Hi I'm looking for the bracket replacement on the multi lock bar. The current bracket that hold the bar has broke off. And also the plastic piece that hold cranking arm to the track has broke off. The bottom of the window can be pull away from window. This piece is attached to the bottom of the window, no the crank operation itself. Can you recommend if there is replacement available.

Bob · Accepted Answer

Thanks for posting. For the Tie bar Guide I believe either our 39-417 or 39-448 could work as a replacement; take a look and see what you think. For the slide piece on the hinge, I am afraid the individual hinge components are not meant to be replaced and that you will have to replace the window hinges outright. Our 36-048 10" Hinge Set likely matches what you need, but review the dimensions below to confirm.

Detail of 36-048
