Brackets and pins for metal bifold

A handy person from Staten Island ny says:

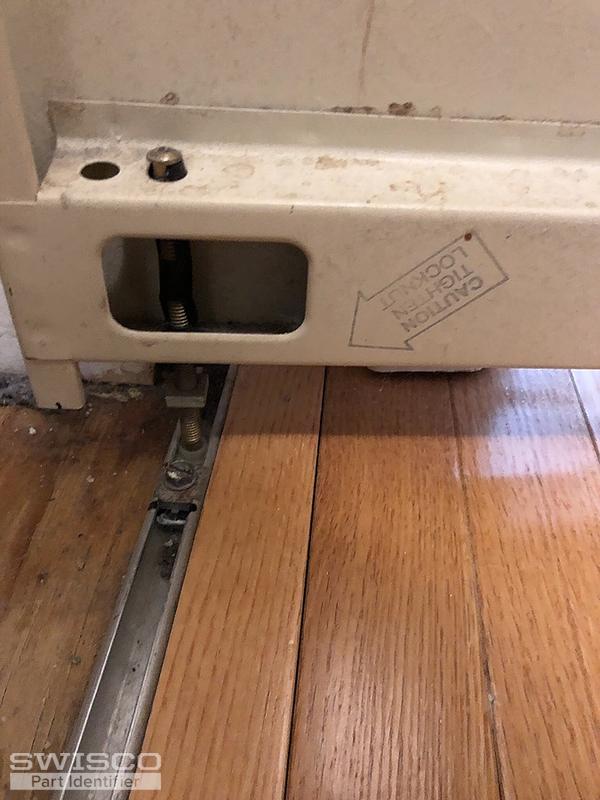

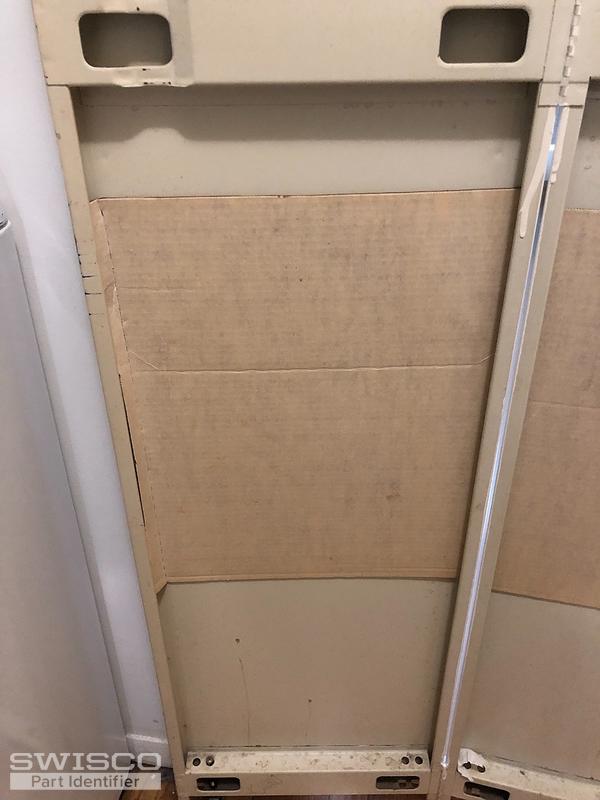

I need new 2 top and 2 bottom pivot brackets for my doors. I also need 2 top and 2 bottom pivot pins that will fit the brackets. I prefer not to remove the track but can if necessary. No manufacturer but cardboard glued to inside bottom of doors and one caution arrow. Please advise. Thanks
Thumbnail of the uploaded file named C5FA427A-B10A-4623-BB28-CDEDD54BB89A.jpeg
Thumbnail of the uploaded file named B8418F00-DE6C-4D8C-96DE-DD7594AB30BC.jpeg
Thumbnail of the uploaded file named 45A0D9AD-0347-42AE-BF2E-B4BAA2C4A3C2.jpeg
Thumbnail of the uploaded file named 33D68C3C-C8D2-4799-8077-C8DD04317A9C.jpeg
Thumbnail of the uploaded file named 817E3DDA-03E2-4D51-8206-AA4AAEC66222.jpeg
Profile picture of Paul
Paul from SWISCO responded:

Many thanks for your correspondence. We believe you have a Float-A-Way door that uses our 21-203 pivot bracket. You will need the 21-023 bottom threaded pivot pin, the 21-024 top spring loaded pivot pin and two 21-022 guide pins for the top and bottom. Please compare and see what you think.
