Broken 1/2 inch channel balance help

Quick Learner from Washington, DC

Nov 15, 2025 11:08 am

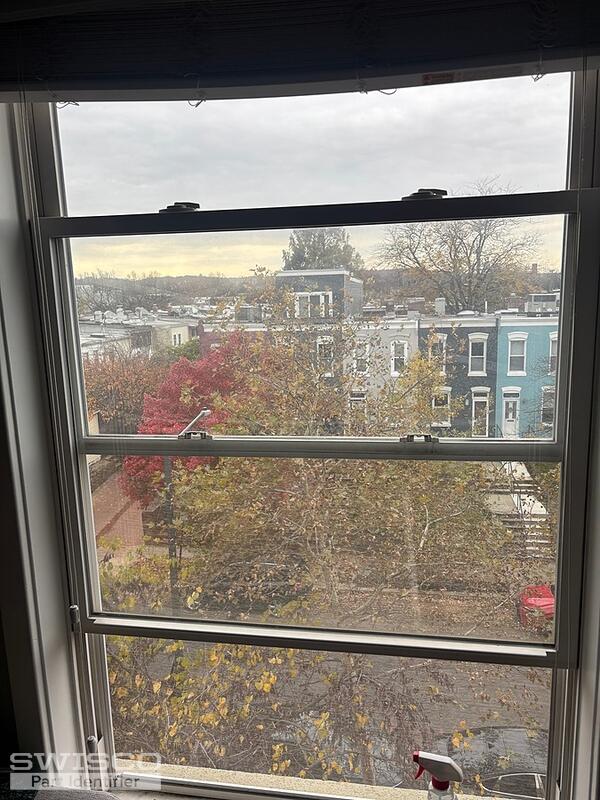

1/2 inch wide in the sash channel balance, 30 inches long. Has the following identificatino: 30C RD BS1

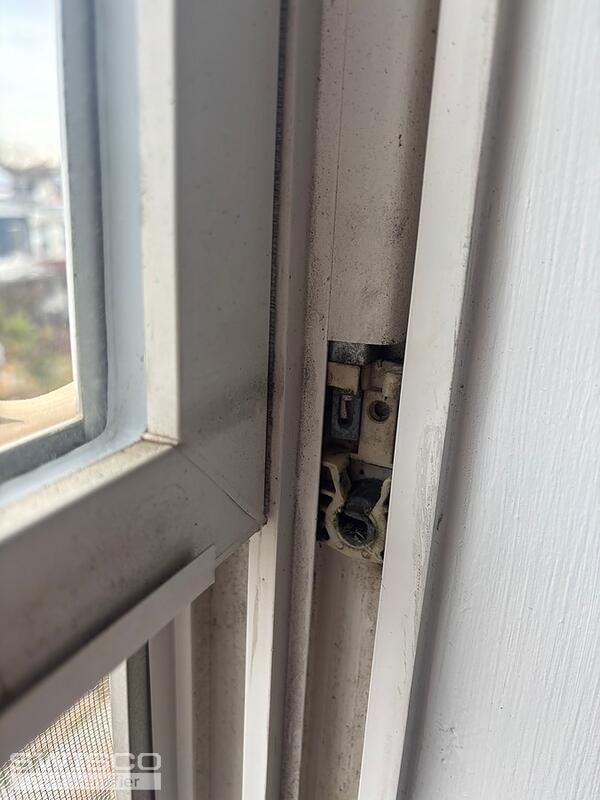

The spring seems like it became detached from its mounting rivit at the top and the pulley system at the bottom.

5 user uploaded images

2 Replies

Bob from SWISCO

Nov 17, 2025 5:07 am

Hello there. Does this channel balance attach to the top of the window jamb with a screw, rather than a hook? If so, see the S770-30, with a stamp of 30C. Let me know if you have questions.
