Broken 29 inch window balance

Start a new Discussion

Handy Person from Tarpon Springs FL

May 20, 2014 11:53 am

Please can you identify the new window balance I need.

Thanks

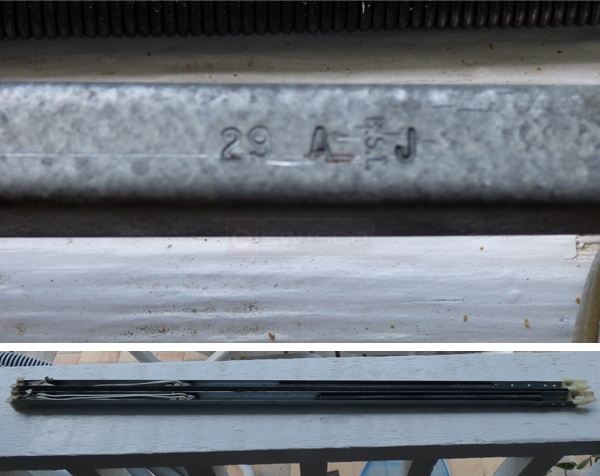

User submitted photos of a window balance.

4 Replies

Tom from SWISCO

May 20, 2014 1:08 pm

Hey, thanks for posting. I've narrowed this down to two possible channel balance Series: either our Series 380 or our Series 385 balances.

Now, as you can see, there is only one difference between these two Series, and that is their bottom shoe. The Series 380 uses the 15-005 while the Series 385 uses the 15-004. I can't quite tell what you have based on your pictures, though. Please carefully compare their dimensions to your own hardware and see which is a better match.

Comparison of 15-004 and 15-005

Handy Person from Tarpon Springs FL

May 20, 2014 4:59 pm

Thanks for the quick reply. It is the Series 380,. How do I determine the Sash Weight required.

Thanks

Tom from SWISCO

May 21, 2014 8:58 am

Usually a stamp of 29 A corresponds to our 2910 option, but you may want to weigh your window sash just in case.
