Broken Bay Window lock

Quick Learner from Minneapolis

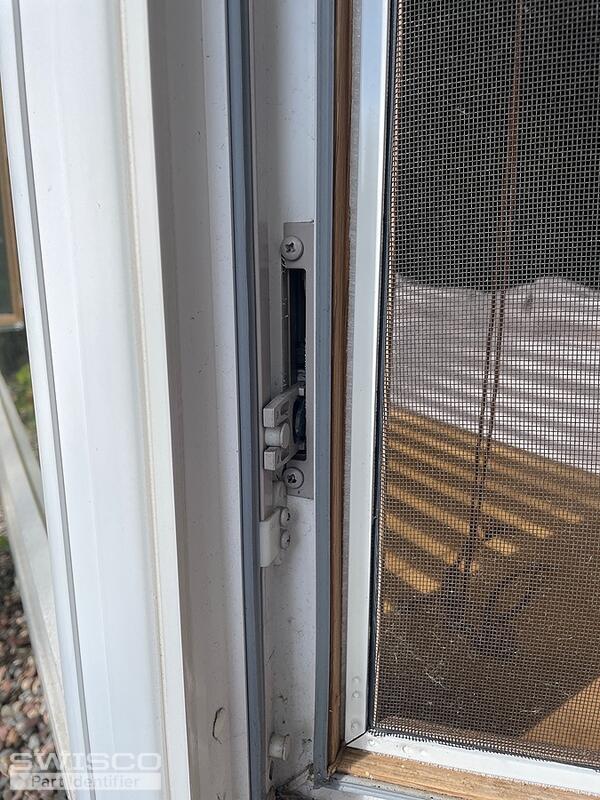

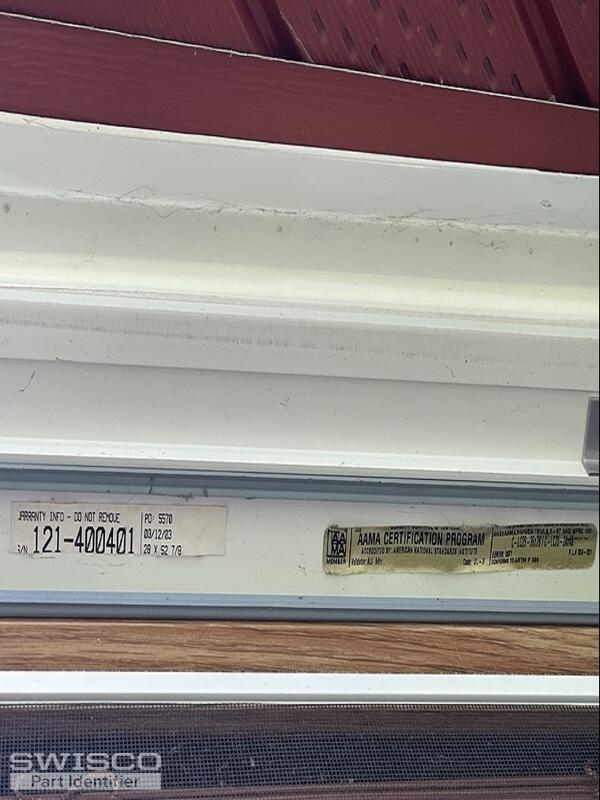

Hi, I need help identifying this hardware. It is a window lock for a bay window. I do not see any brands but there is a sticker in the photos on this window. Maybe you can tell me where to look for them. Thank you so much for your help.

Best,

Erin

5 user uploaded images
7 Replies
Casey
Casey from SWISCO
SWISCO
Expert

Hello,

We carry a few locks similar to yours. Take a look at the 38-095, 38-096, 38-138, and 38-139 multi-point locks. Compare all dimensions, paying close attention to the size of the locking fork, to see how they compare to your original. Thank you!

Quick Learner from Minneapolis
Hello,

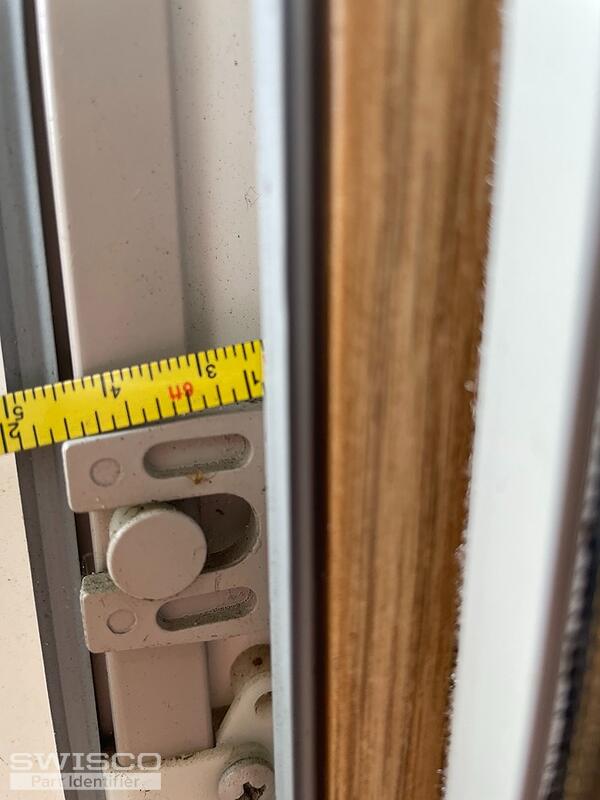

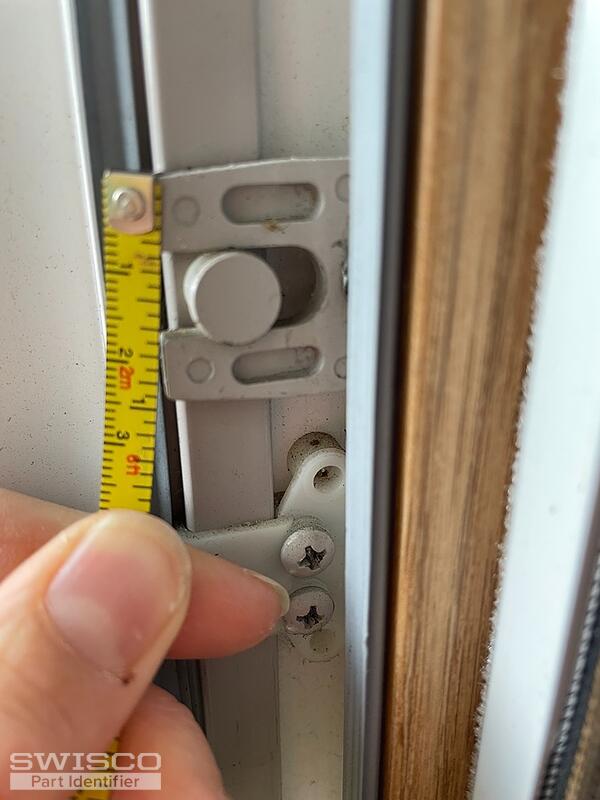

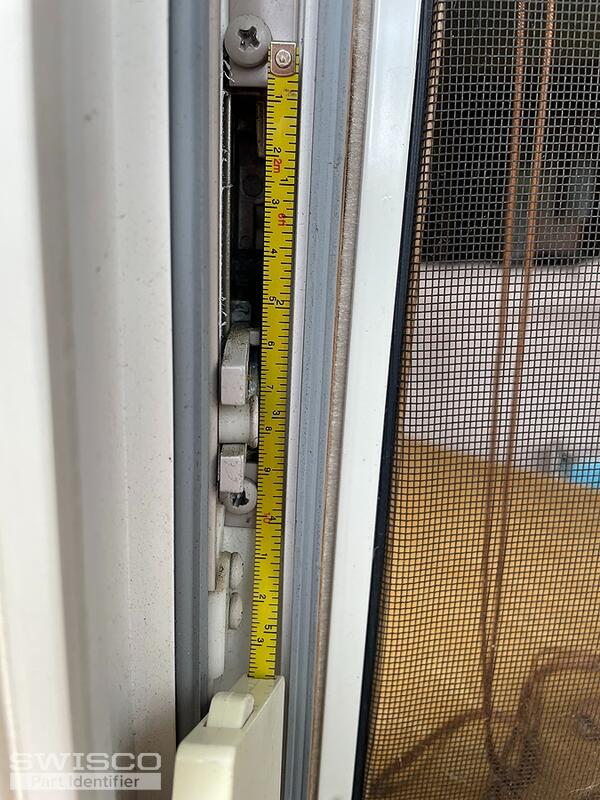

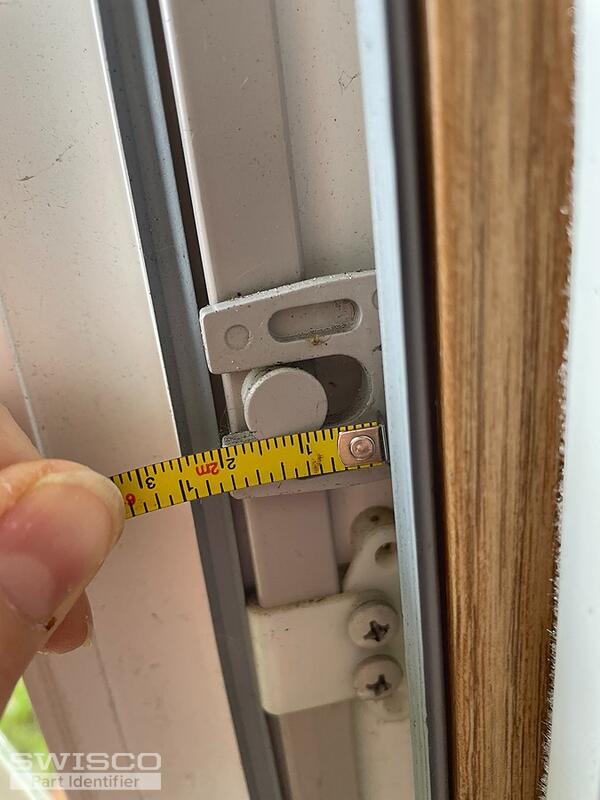

Thanks for the message. I'll attach more pictures, if you can help me narrow it down that would be appreciated.
5 user uploaded images
Quick Learner from Minneapolis

Continued...

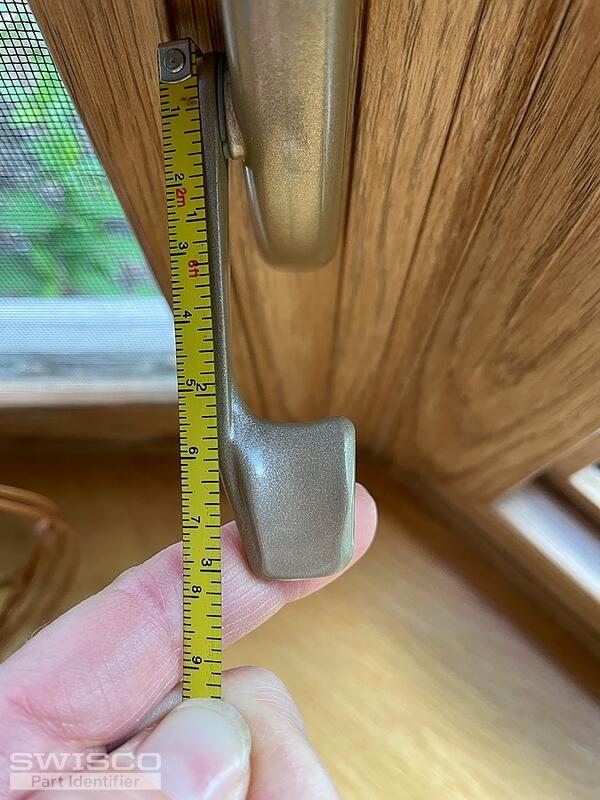

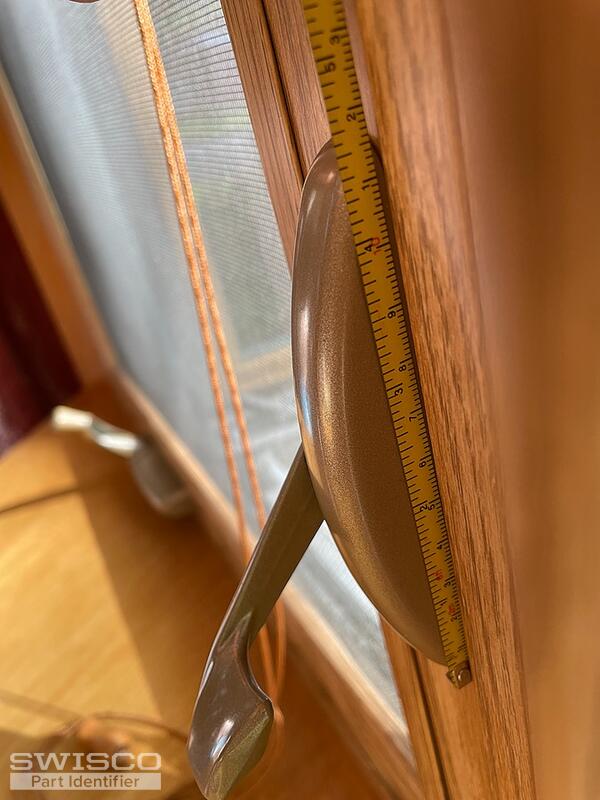

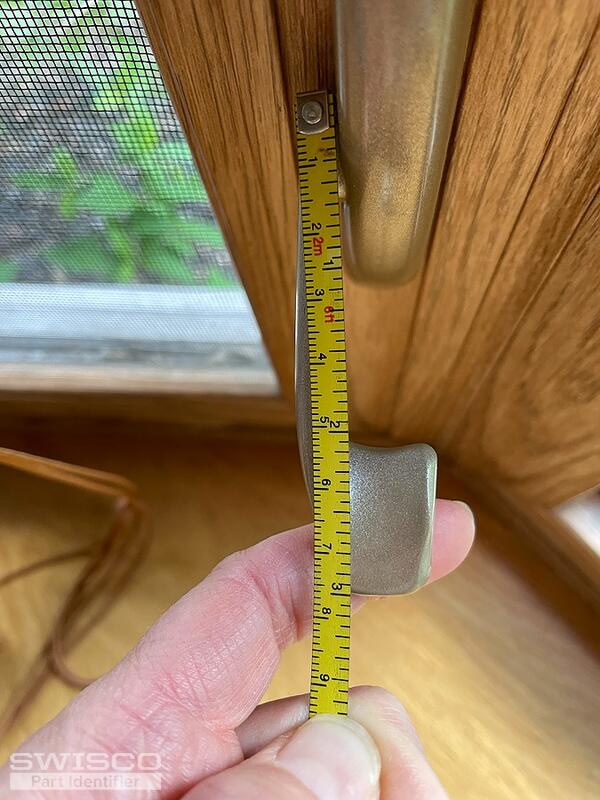

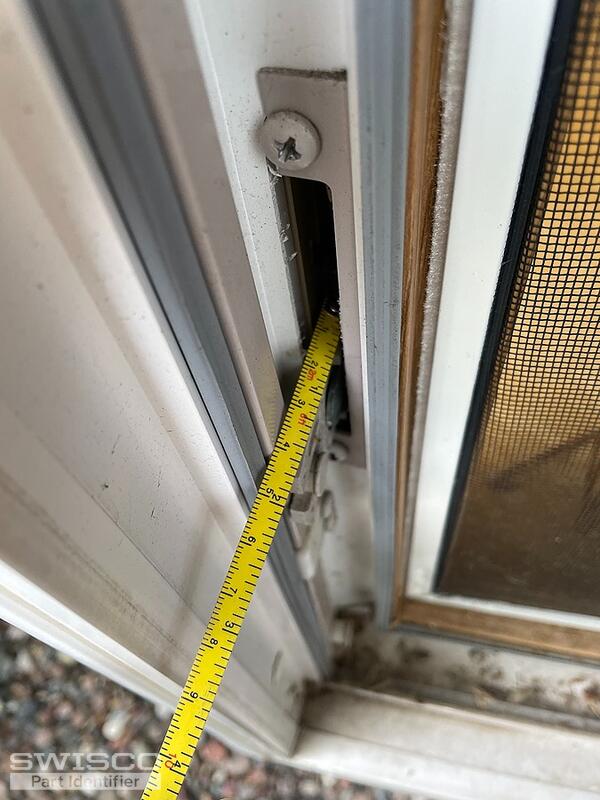

Here are pics of the front dimensions.

Thank you for any additional help!

Sincerely,

Erin

3 user uploaded images
Casey
Casey from SWISCO
SWISCO
Expert

Unfortunately, we are not able to make out accurate dimensions from photos. It's also important to remove your lock from the window entirely so that you can measure the locking fork from the base as shown in the images shown on product pages.

Quick Learner from Minneapolis
Do you have any instructions or pointers on how to remove the lock?
Thanks!

Best,
Erin
Casey
Casey from SWISCO
SWISCO
Expert

Sure, see the replacement video from our product pages below.
