Broken Channel Balance

A quick learner from Pelham, NY says:
January 2, 2023

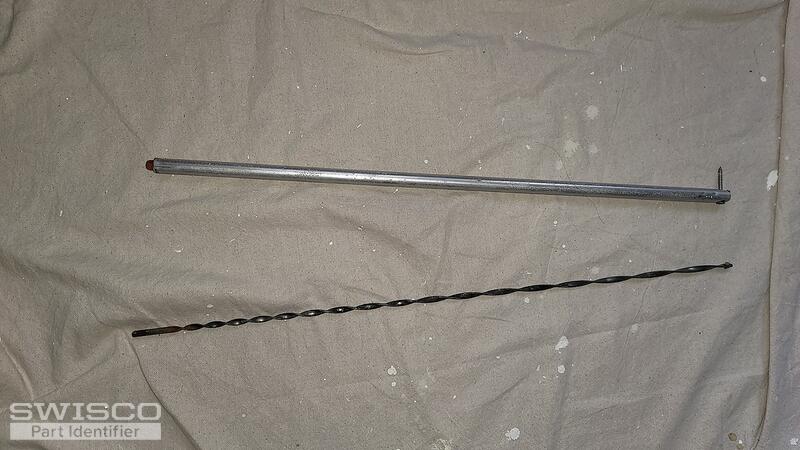

The spiral rod broke off from the metal sleeve. There is a red tip, and the metal sleeve measures 22inches. It looks like the shoe is fine.

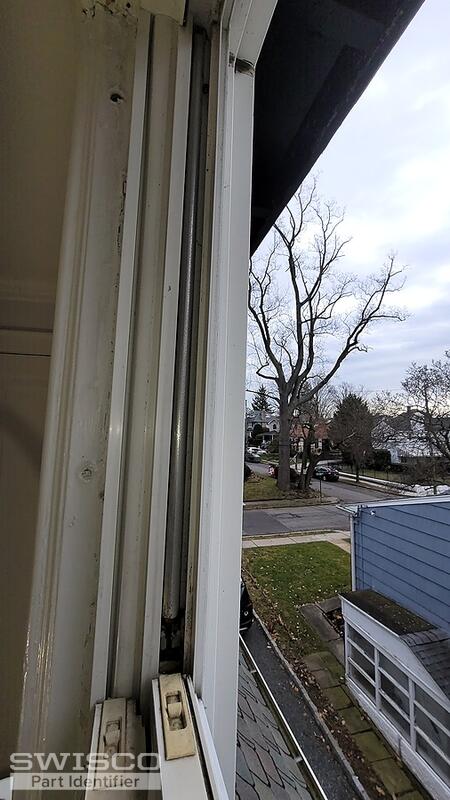

Thumbnail of the uploaded file named 20230102_101727.jpg

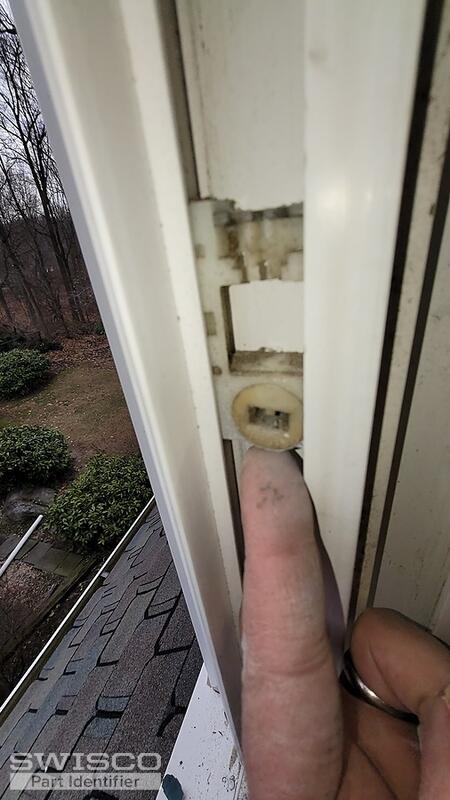

Thumbnail of the uploaded file named 20230102_111914.jpg

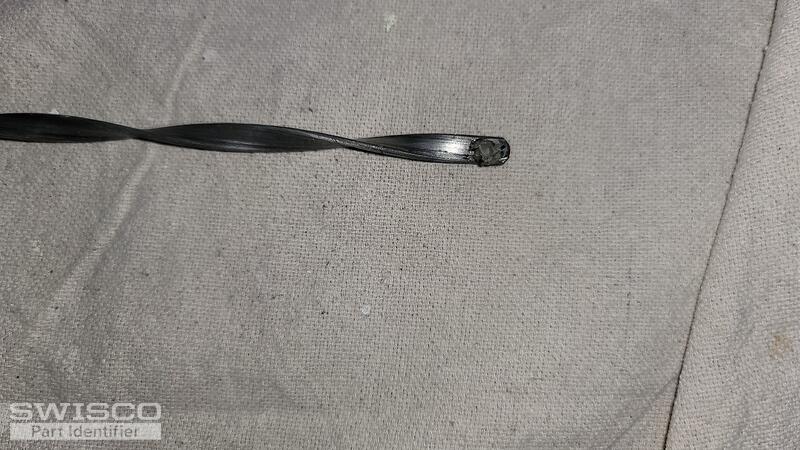

Thumbnail of the uploaded file named 20230102_114239.jpg

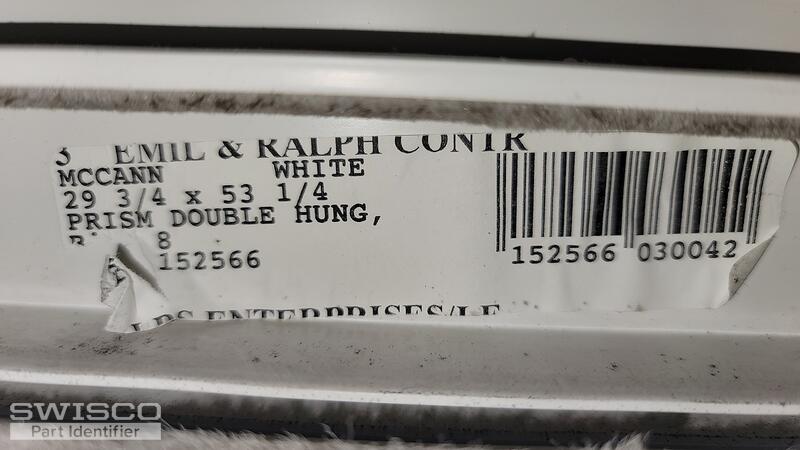

Thumbnail of the uploaded file named 20230102_153029.jpg
Thumbnail of the uploaded file named 20230102_153040.jpg
Profile picture of Lauren
Lauren from SWISCO responded:
January 4, 2023

Hello, thank you for posting,

Your balance resembles either the Series 600 spiral balance with a 5/8" diameter or the Series 900 with a 3/8" diameter. Please review and let us know if you have any additional questions.
22" Series 600 Spiral Tilt Window Balance
22" Series 600 Spiral Tilt Window Balance
S600-22
$8.72
22" Series 900 Spiral Balance
22" Series 900 Spiral Balance
S900-22
$8.47
How to replace a tilt window spiral balance.
How to replace a tilt window spiral balance.
VIDEO
WATCH >
How to Identify a Replacement Spiral Balance
How to Identify a Replacement Spiral Balance
VIDEO
WATCH >
How to choose the proper spiral balance tip color
How to choose the proper spiral balance tip color
GUIDE
READ >
How to adjust a spiral balance on a tilt window
How to adjust a spiral balance on a tilt window
GUIDE
READ >
