Broken Sash Pivot
Home Owner
May 20, 2025 4:44 pm

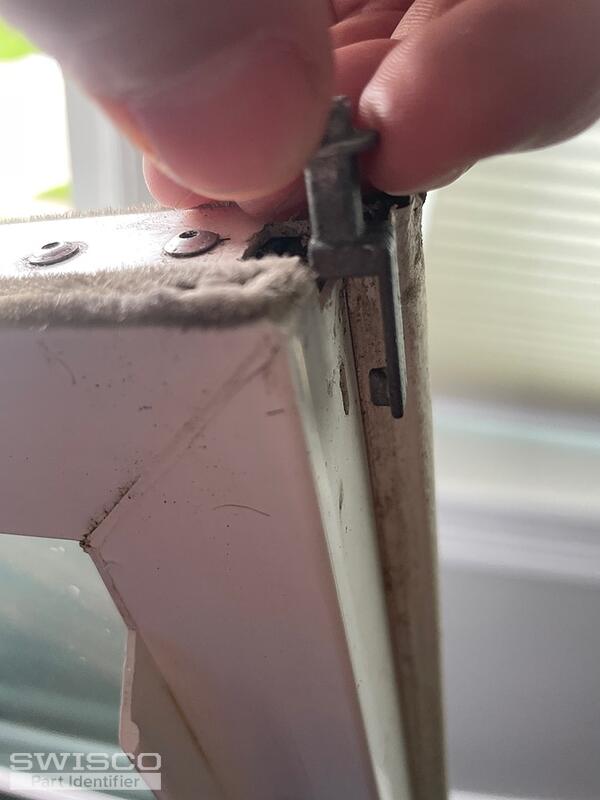

Both sash pivots broke on my window. I don't know the brand or age of the windows, and the pivots are riveted in place. Any idea which type they are, or what I can use as a replacement?
4 user uploaded images
4 Replies
Jasmine from SWISCO
May 21, 2025 11:26 am
Thanks for posting! I believe you'll need the 26-423 Pivot Bar to replace your existing pivots. Since the screws are still on the side of the sash, it is likely the top portion is still attached there.
Take a look over its dimensions and design to determine if this is the correct replacement.
Alternate image for 26-423
Home Owner
May 21, 2025 1:22 pm
Thanks for getting back to me. It's actually attached by rivets & not screws; does that make a difference? Otherwise, the dimensions look the same.
Jasmine from SWISCO
May 21, 2025 2:06 pm
My apologies for the typo, these are secured to the sash using rivets. You will need the 33-005 #44 Pop Rivet to replace them. keep in mind you will need to drill out the old rivets to install them.
Be sure to take a look at the 75-012S Professional Rivet Tool to see if you might need it for the repair as well.
Alternate image for 26-423
