Broken Shoe

Handy Person from Long Island NY

Jul 10, 2019 12:34 am

Hello!

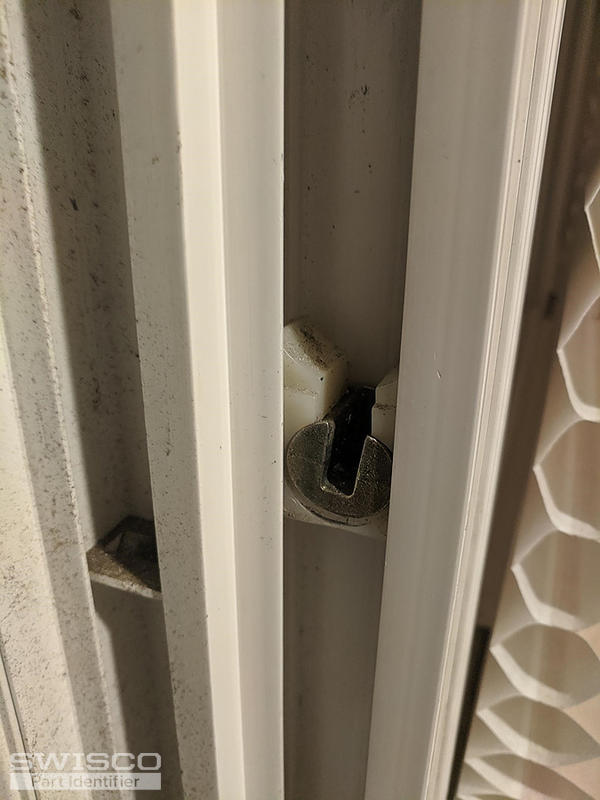

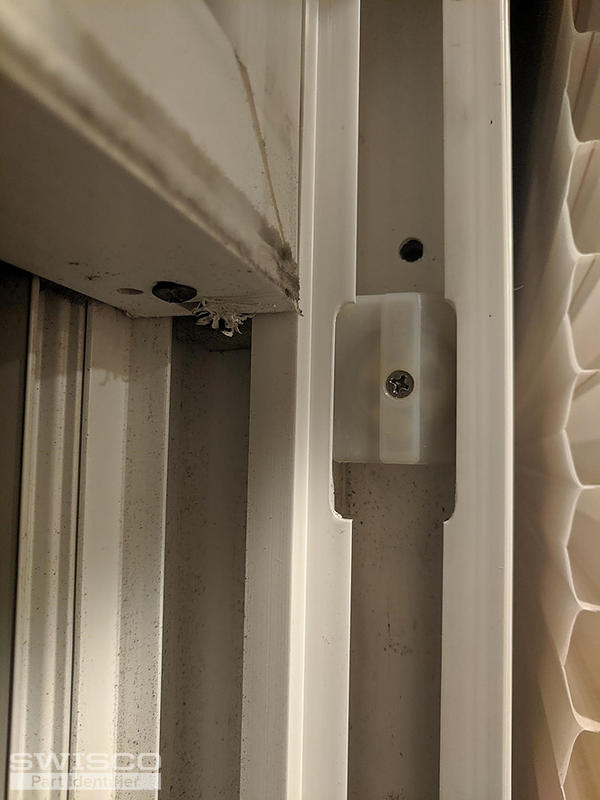

The plastic shoe on my Simonton window gave up on me. Attached are pics of a good side and the broke side. Please let me know if you have this part.

Thank you for all your help!!!

5 user uploaded images

4 Replies

Casey from SWISCO

Jul 10, 2019 1:01 pm

Take a look at our 15-192 pivot shoe that works with our S170 and S171 coil springs. If you need the pivot bar as well, Simonton normally uses the 26-336 but be sure to compare the dimensions to yours to confirm. Also, in some cases, the cam is shaped differently than ours, so if you run into any problems installing your pivot bars in our 15-192 shoe, you can swap the metal cam for your old ones to rectify the problem.

Handy Person from Long Island NY

Jul 10, 2019 2:12 pm

Thank you for your reply. When I buy the 15-192 shoe do I also need to swap out my coil spring or can this attach to the existing?

Casey from SWISCO

Jul 10, 2019 3:43 pm

You only need to replace what's damaged, so if your coils are in good shape you can just connect your existing coil to the new pivot shoe.
