Broken Snib on 1996 Milgard Sliding Door

Home Owner from San Rafael, California

Feb 1, 2024 6:21 pm

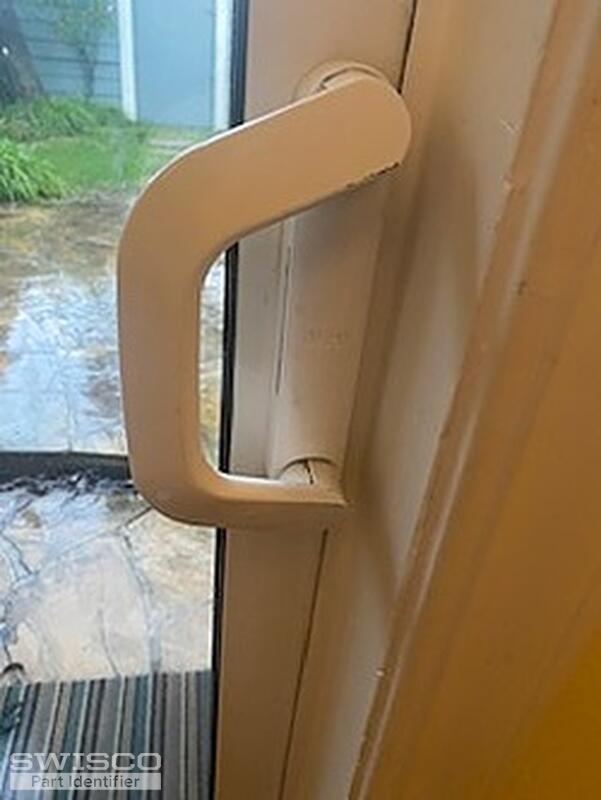

The sliding door was installed in 1996. The snib is broken. Please see attached photos.
Please provide the part numbers to repair the lock.

5 user uploaded images

4 Replies

Casey from SWISCO

Feb 2, 2024 10:54 am

Hello,

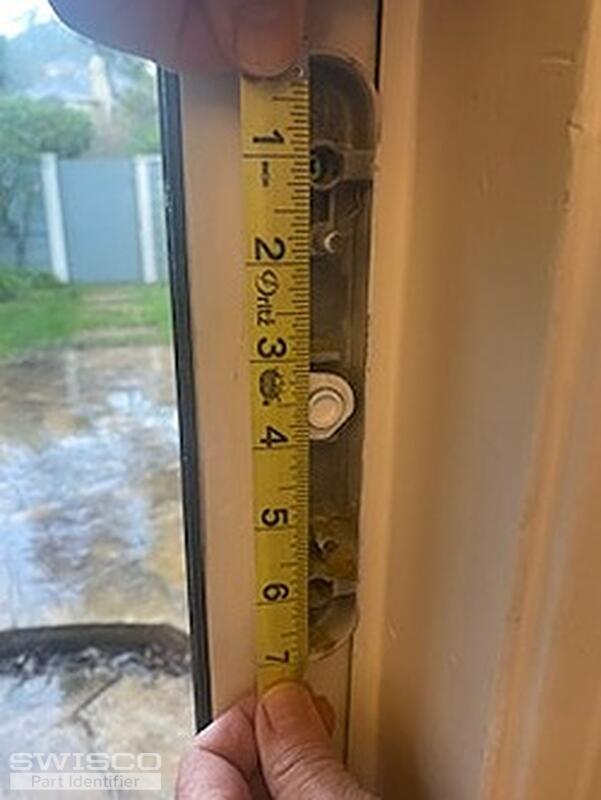

Your handle set resembles the 82-080, which uses the same type of mounting base for the inside handle. Take a look and confirm that the 4-15/16" hole spacing matches your assembly. We also offer the 82-081 keyed version of this handle set. Take a look and let us know if you have any other questions.

Dimensions for 82-080

Home Owner from San Rafael, California

Feb 2, 2024 6:18 pm

Thank you. The measurement is as you noted for the 82-080 door.
What are the parts numbers for:
1. Interior Mounting plate for this door?
2. Latch lever for this door?

Casey from SWISCO

Feb 5, 2024 7:58 am

Great, the 82-080 uses the 82-240 latch lever. If you need the mortise lock in the center of the door as well, we'll need to see a photo of yours to compare to our selection, which you are welcome to look through here in the meantime.
