Broken Spindle on Patio Door that swings open-Uncertain of Manufacturer

Question

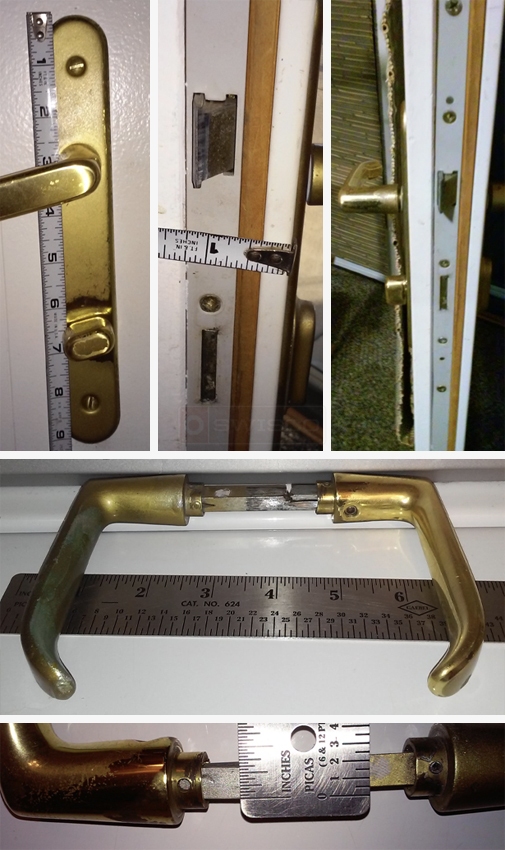

Problem: Spindle is split and I don't know the manufacturer. The handle to the outside entrance does not have a hex key but a small drilled hole with a hollow pin that holds the handle in place. The spindle is fatter than most I have seen at Lowes.

What I know? The door has bar at the top and bottom that when the thumb handle is turned locks the (Shooting?) bars into place along with the dead bolt. The door has a metal trim that will be need to be removed if I am to replace the lock inside the door.

Top right hand corner of opening glass door that is on the right side that swing into the house has etched printed the following:

IGCC CBA 1-93 or I93
Insulshield
IGMAC CIG-2

From inside of House the Door is on the right and opens into the house. The door handle is of course on the right as well.

-Don

Dave Sr. · Accepted Answer

Thanks for posting, Don. Take a look at our 40-101 and compare it to your original hardware. This might be all you need. See if it matches up to your handle and spindle.
