Broken Truth operator and hinges : SWISCO.com

Home Owner from Reno Nv

Sep 7, 2026 4:15 pm

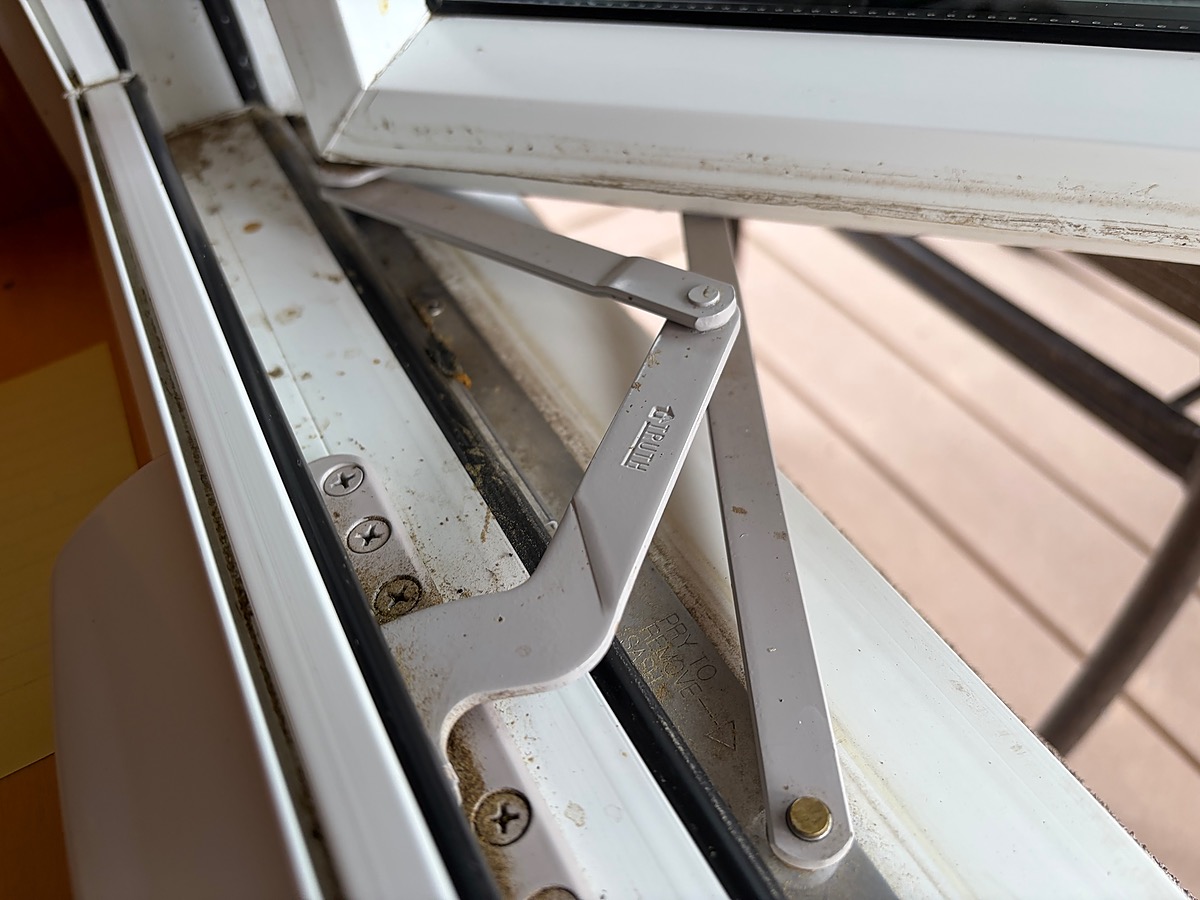

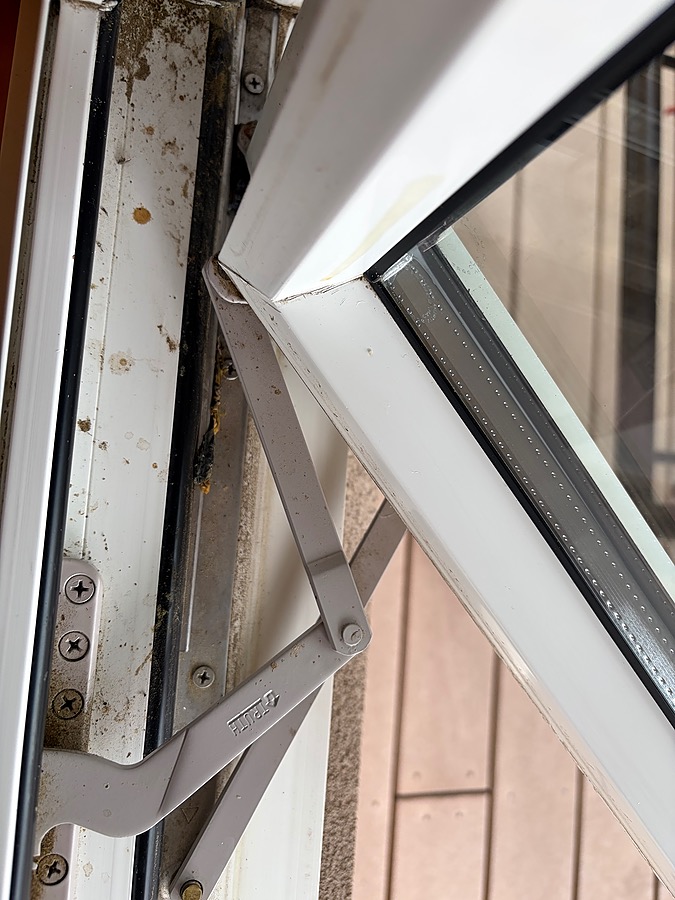

Need all parts to replace operator and crank to match same on adjacent window. Another form was submitted and photos may not have been included. Any questions text or call. John

5 user uploaded images

5 Replies

Home Owner from Reno Nv

Sep 7, 2026 6:46 pm

The window operator was damaged by a 350 pond bead clawing the window open damaging the3 moving metal components The transverse extension is 10 inches and the mobile connector 4 7/8 inches. Will need al the moving parts and hopefully with same appearance as the identical right hand window

Are you able to supply the above needed window parts.?

Casey from SWISCO

Sep 14, 2026 11:19 am

Hello,

Your operator resembles the 39-220B and 39-221B. Review the specifications below to confirm. These use the 39-376 and 39-375 handle with cover kits.

Detail of 39-220B

As for the hinge, we'll need to know the length of the base that attaches to the window sill to narrow down your options. Thank you!

Home Owner from Reno Nv

Sep 15, 2026 8:13 pm

As noted the horizontal hinge is 10 inches.Ideally we would relplace the crank with the open non recessed crank as it would match the opposite window.The fixed glide is 13 inches long and allows the window to glide on a black damaged 1 inch metal support.Also The base screws are stripped from the bear attack. Do I need to use an epoxy filler to secure the replacement?

Casey from SWISCO

Sep 16, 2026 8:29 am

We don't carry a hinge set with a 13" long base, but you can start by reviewing the 36-048 and 36-049 2-bar hinge sets with a 10" and 14" long base, as shown below.

Detail of 36-048

Dimensions for 36-049

As for the operator handle and covers, we also offer the 39-451 and 39-452.
