Broken Window Lock

Home Owner from Taghkanic Rd, NY

Sep 1, 2022 11:26 am

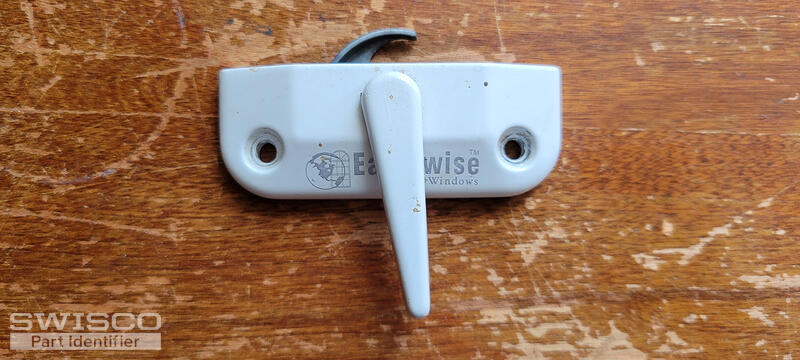

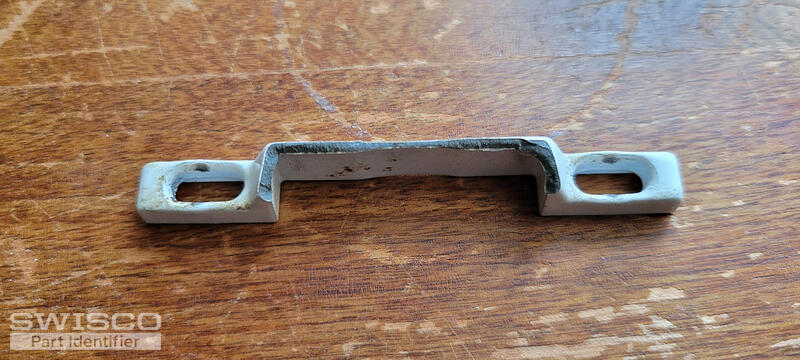

Do u carry earthwise vinyl windows Parts, I need some of the Upper parts for window lock as in picture. I will be appreciated. Thank u

5 user uploaded images

4 Replies

Casey from SWISCO

Sep 2, 2022 12:23 pm

Hello,

We'd be happy to look into this for you but we would need you to confirm the exact distance between the center of the installation holes in your lock. Also, is there another window with an undamaged keeper that you could show us? That would help us research your replacement options. Thank you!

Home Owner from Taghkanic Rd, NY

Sep 3, 2022 9:57 pm

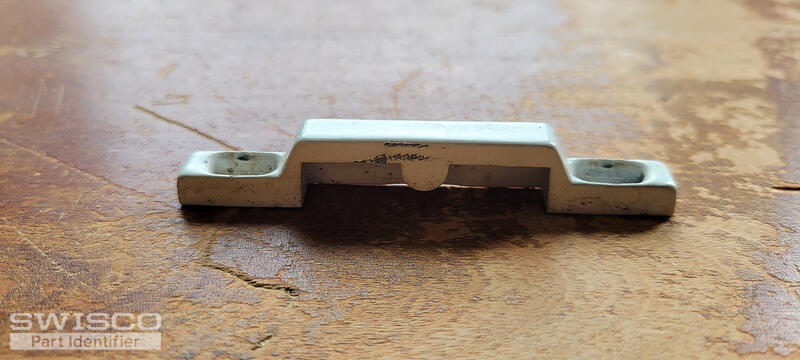

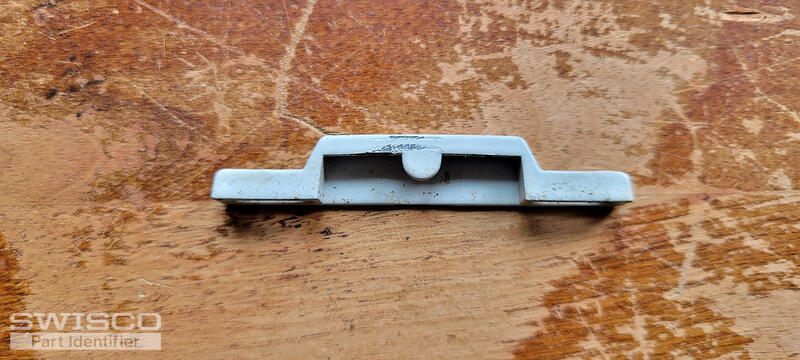

the part is 2 7/8 long the middle is 1 1/2 and the unbroken one I'm attack pic. thank u

2 user uploaded images

Paul from SWISCO

Sep 6, 2022 9:47 am

The keeper that comes with the 90-278 looks very similar to yours but, unfortunately, is not available separately. The measurements that you provided match but here are three other dimensions to compare to your original part. The installation holes are 2-1/16" apart and have a backset of 11/16". The keeper's height is 3/8" and the height of the locking tooth is 1/4" from the base. Take a look and see if you think that this might work for your repair.
