Broken Window Parts

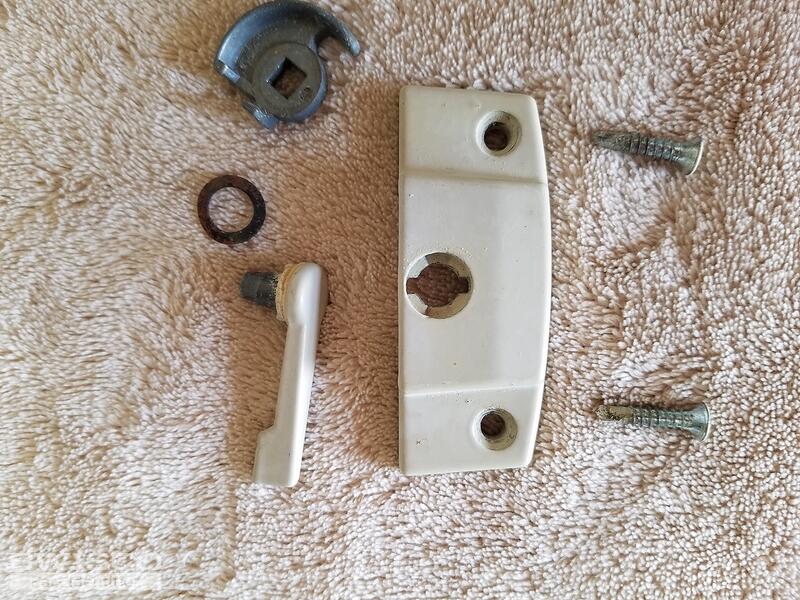

We can replace this hardware, but we'll need a bit more information. For the lock, can you tell me the distance between the installation holes, center-to-center?

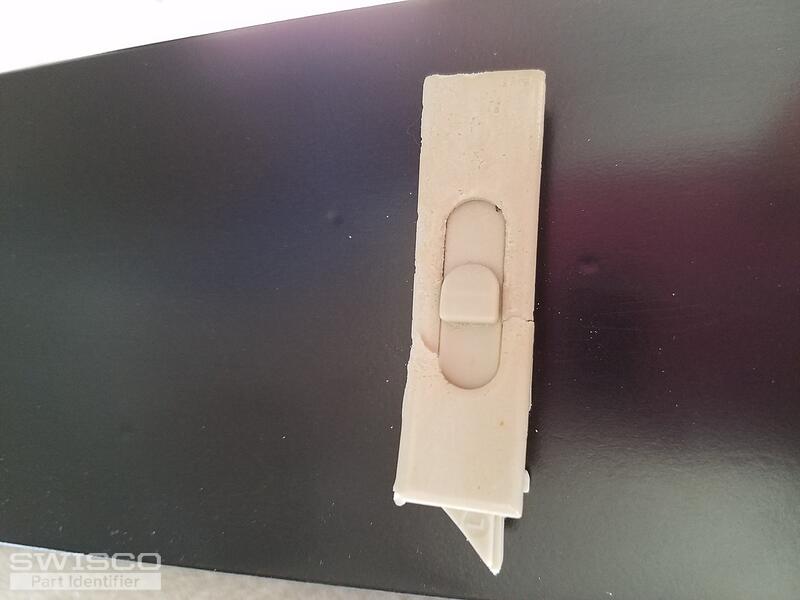

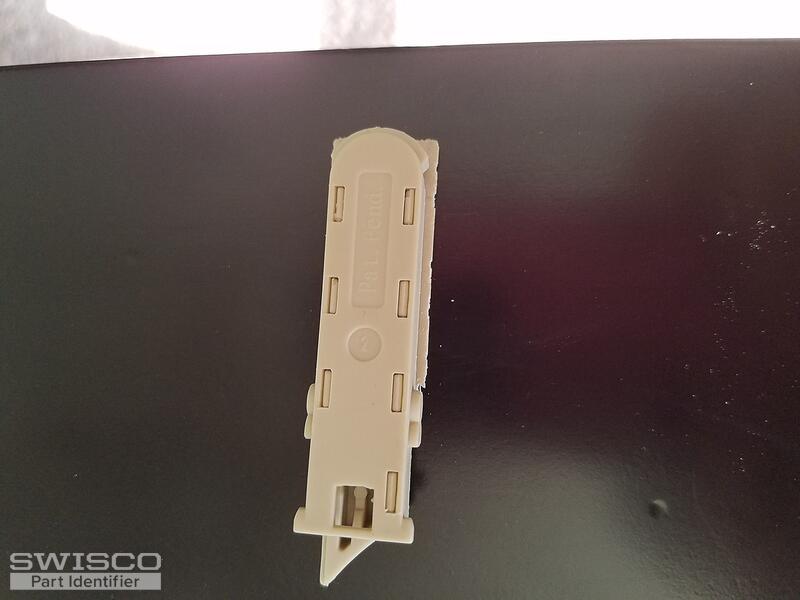

For the tilt latch, you're only showing the inside mechanism. Can you show me one complete and undamaged tilt latch removed from the window?

This information will help us find the best matches.

We placed two helpful media videos on tilt latches. Perhaps one of them may offer some assistance on the removal of your latches. Look them over and get back in touch with us.

Thank you. I'm afraid we don't have any lock with a 2" hole center spacing. Most of ours are around 2-1/16" to 2-1/4". I would triple check just to be 100% sure. You can see our entire selection here. Two notable examples are our 90-274 and 90-278.

As for the tilt latch, our 26-393B is very similar. I would just go over our dimensions to be 100% sure.

Thanks for getting back to us with the extra information. You appear to possibly have a Silverline window. We have known this brand of window to use the 26-393B top tilt latches as well as the 90-278 window lock. Look over the parts mentioned and see if our measurements are compatible with yours.
