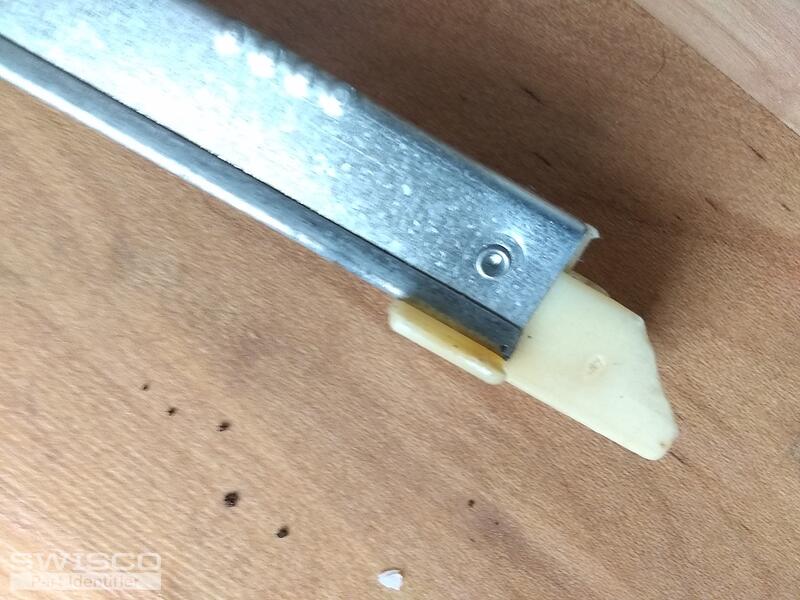

Printed Number on balance rod ; 20 3 LW CMC. 11
Metal rail dimensions:
30 inch long , O.5 inch wide , O,5 inch higher

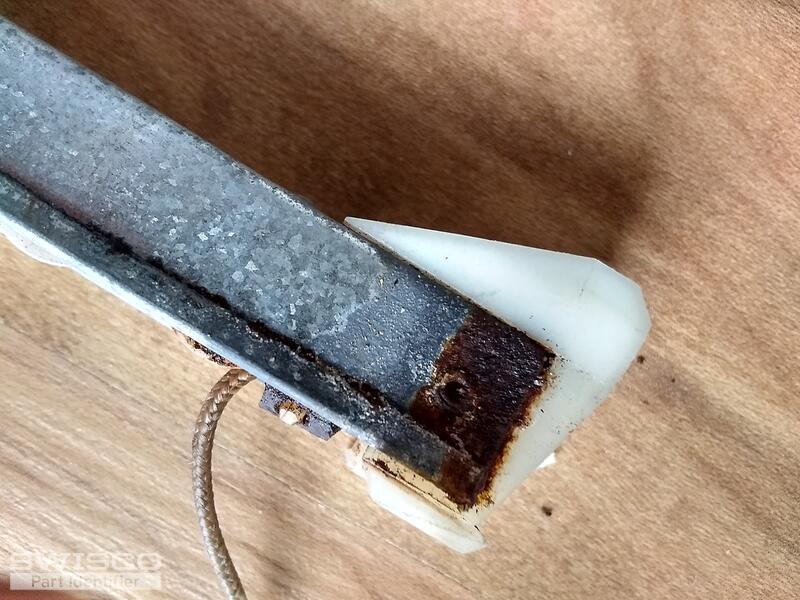

Broken balance
Home Owner from Largo florida
Mar 28, 2024 5:30 pm
5 user uploaded images
2 Replies
Bob from SWISCO
Mar 28, 2024 6:18 pm
Hello there. This looks like either an S380-30 or S385-30 Channel Balance. The only difference between these two balances is the depth of the bottom nylon shoe, or the measurement from 'heel-to-toe'. See the diagram below for reference. Measure the depth of your old balance's shoe to determine which you need. For a stamp option, choose 2930. Let me know if you have any questions.
Comparison of the S378, S380 and S385 balance shoes.
