Hello,
both of the S385-27" (2640) balances that I purchased in March of 2012 have broken again. I think its just the string. Can that be replaced? If so is there instruction on how to do this? Is there something more heavy duty S385-27
Broken balances
Home Owner from Santa Cruz, CA
Dec 1, 2015 9:33 am
6 Replies
Tom from SWISCO
Dec 1, 2015 10:27 am
I'm afraid the strings cannot be replaced. If your balances broke after only three years, the issue may be the spring strength. Let's go over that briefly.
Looking at your first discussion, your original balances were marked with "26 4," which corresponds to our 2640 option. Two balances with this option can carry a sash weight of 19 through 26 pounds.
However, this may not be correct. Did you ever find that your old balances didn't operate correctly? Can you confirm for me the weight of your sash? You can determine this by removing it from the window and placing it on a scale. This will allow us to confirm exactly what kind of stamp option will work for you, whether it be 2640 or something else.
Looking at your first discussion, your original balances were marked with "26 4," which corresponds to our 2640 option. Two balances with this option can carry a sash weight of 19 through 26 pounds.
However, this may not be correct. Did you ever find that your old balances didn't operate correctly? Can you confirm for me the weight of your sash? You can determine this by removing it from the window and placing it on a scale. This will allow us to confirm exactly what kind of stamp option will work for you, whether it be 2640 or something else.
Quick Learner from Santa Cruz
Dec 4, 2015 9:35 am
Hello Tom,
The sash weighs 21 lbs, so by your description it looks like I have the correct units. The balances are inexpensive, so I'll just buy another pair, it just that the other window has lasted a decade. Maybe my kids abuse this window more. I'll order another set. Thanks for looking into it.
The sash weighs 21 lbs, so by your description it looks like I have the correct units. The balances are inexpensive, so I'll just buy another pair, it just that the other window has lasted a decade. Maybe my kids abuse this window more. I'll order another set. Thanks for looking into it.
Tom from SWISCO
Dec 4, 2015 1:48 pm
Sure, it is possible for a balance's life span to shorten if it's used a lot. Let us know if you ever need anything else.
Quick Learner from Ca
Aug 7, 2023 7:23 pm
Stamped 2640 bs1 BL.

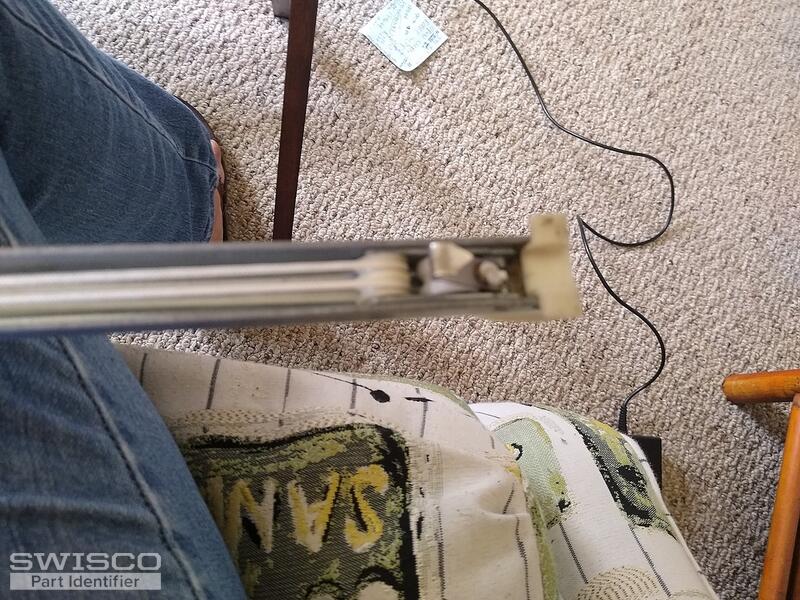

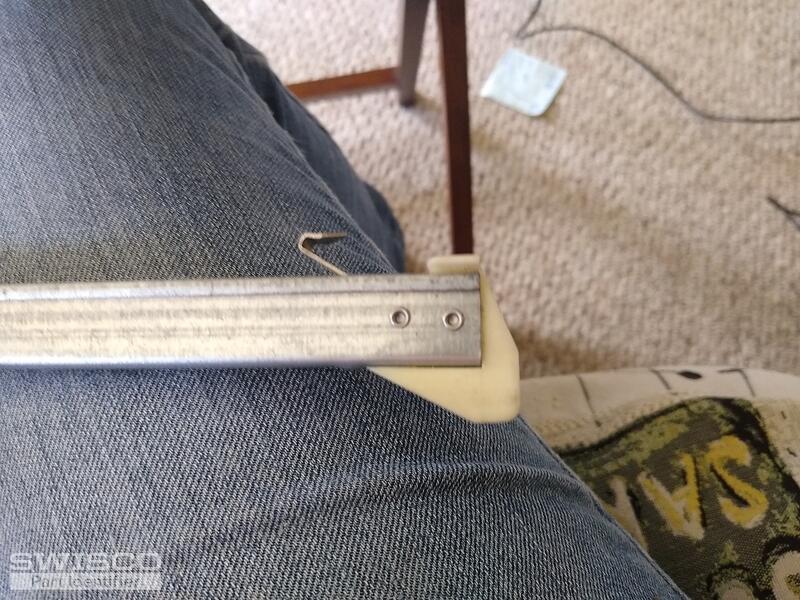

Spring does not start at end. Side with hook white plastic, other end is brown plastic. Can you help. Pictures of good one last picture of broken pin that holds springs.
Spring does not start at end. Side with hook white plastic, other end is brown plastic. Can you help. Pictures of good one last picture of broken pin that holds springs.
5 user uploaded images
Paul from SWISCO
Aug 9, 2023 9:46 am
As long as your bottom fitting has a depth of 1-3/32" as shown below, you would need the S385-27 channel balance with a 2640 strength option for a sash weighing between 19-26 lbs. Take a look and thanks for posting.
Close up view of the S385 balance shoe.
