Broken casement window handle

A home owner from Evergreen, CO says:
February 18, 2021
Hi,

We have a broken window handle - all we could find on type is the following~

Series: 7202 Casement and include a pic of the series tag that we could find

I think it id die cast and appears to be grey in color - see pics

Any help would be appreciated!

Mike
Thumbnail of the uploaded file named Casement Pic1.JPG
Thumbnail of the uploaded file named CasementPic2.JPG
Thumbnail of the uploaded file named CasementPic3.JPG

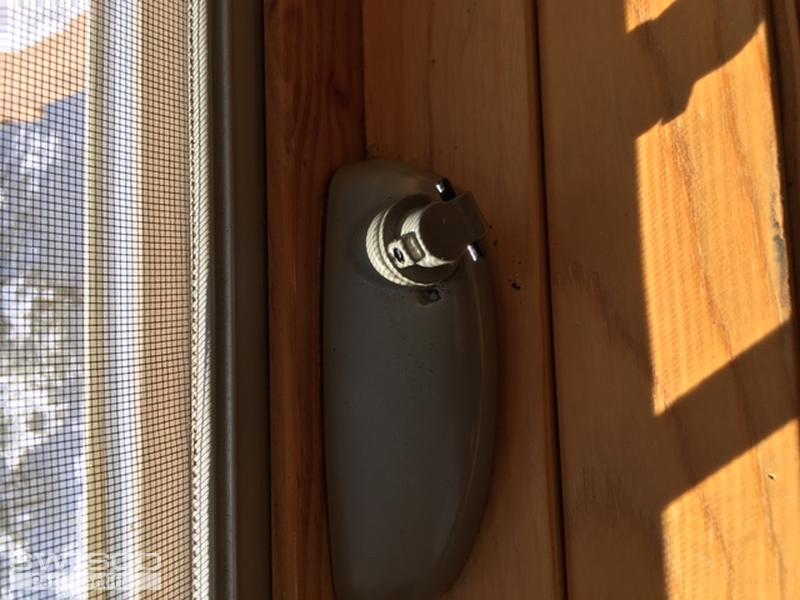

Thumbnail of the uploaded file named CasementPic4.JPG

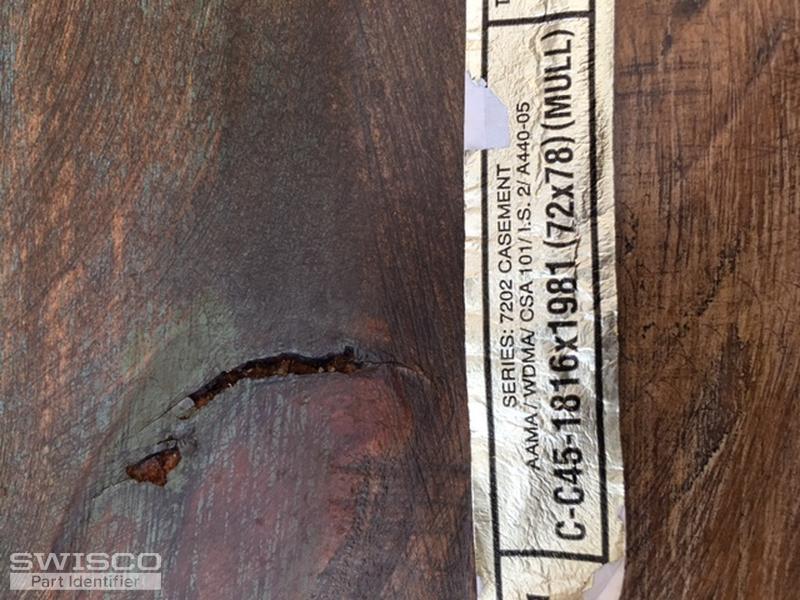

Thumbnail of the uploaded file named CasementPic5.JPG
Profile picture of Dave Sr.
Dave Sr. from SWISCO responded:
February 19, 2021

Hello,

Take a look at the 39-232 Roto folding handle that fits an 11/32" operator spline. Thanks for posting!
A home owner from Evergreen, CO says:
February 19, 2021
Hi Dave and thanks for the info! If I need to also by the arm as well - what part do you recommend?
Profile picture of Dave Sr.
Dave Sr. from SWISCO responded:
February 19, 2021

Are you referring to the arm on the operator? If so, that means you'll need an all new operator. In order to ID that, I'll require a photo of the complete operator mechanism removed from the window. That way we can see it without obstruction.
A home owner from Evergreen, CO says:
February 19, 2021
Hi - hard to take this off the window now - 40+ winds and temps near zero :) I live at 9000 feet in the Rockies - let me know if this helps! Mike

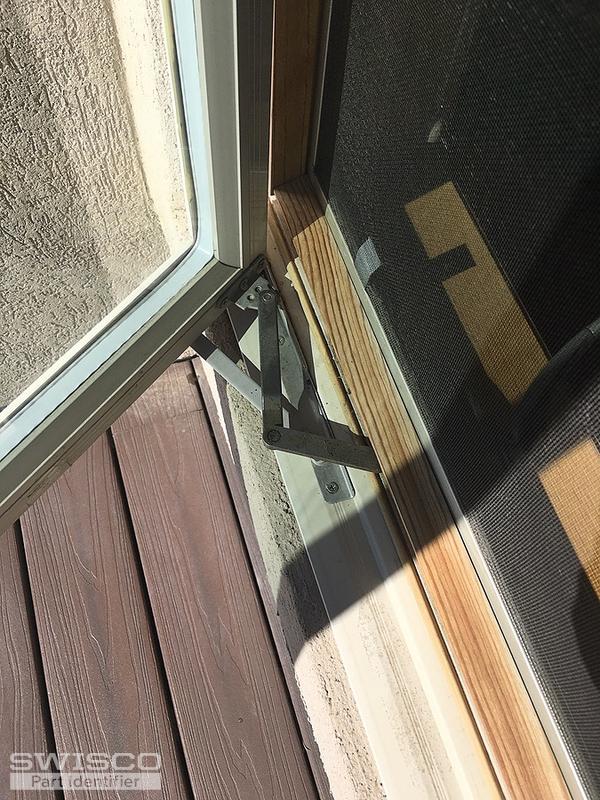

Thumbnail of the uploaded file named AA39D4C9-8653-480C-82E2-7769560F34B7.jpeg

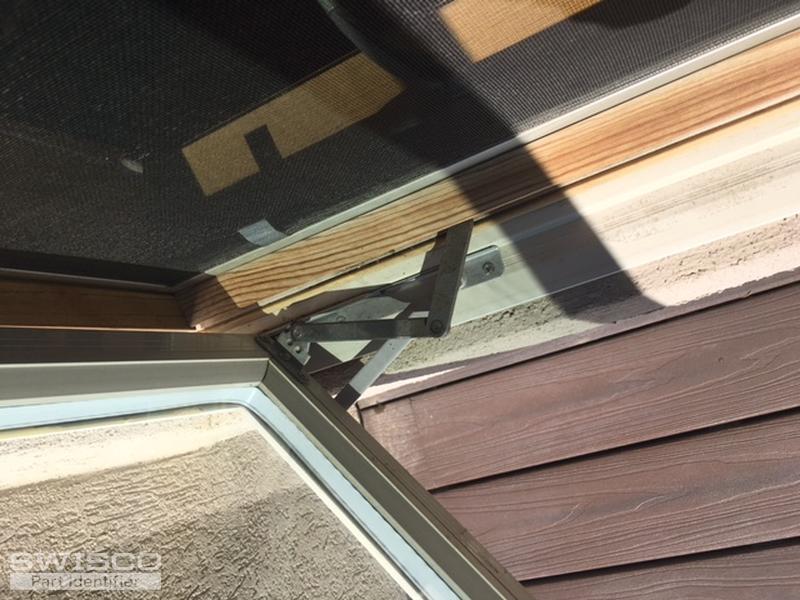

Thumbnail of the uploaded file named 78F57448-C54E-4A22-B49E-54012AC3DD83.jpeg

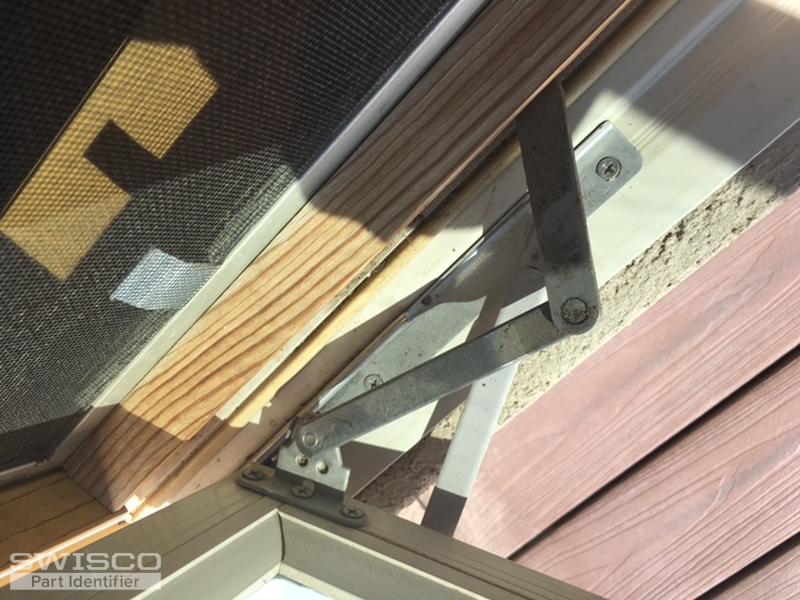

Thumbnail of the uploaded file named 2F52A2C4-F2FF-4360-A2AF-0C0A7E6A85AF.jpeg

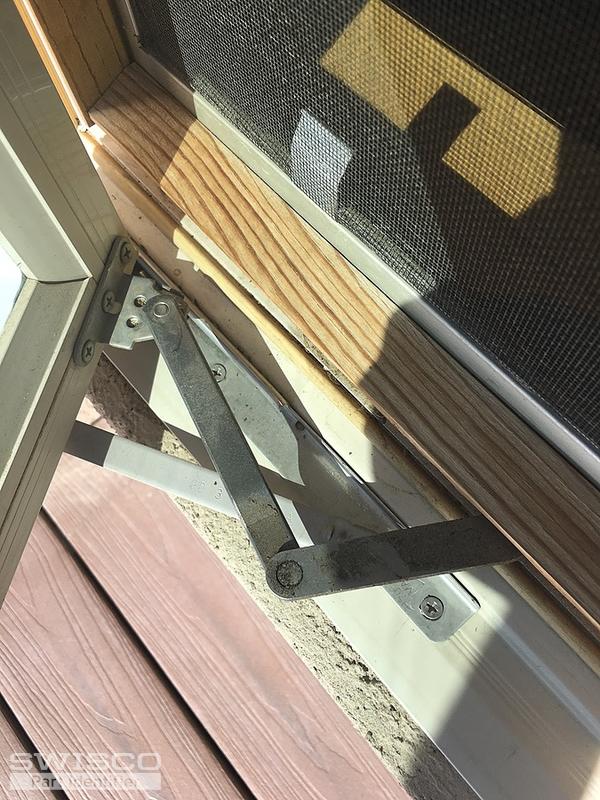

Thumbnail of the uploaded file named 4AB819DC-E2CF-4673-95C5-2A0E6ACD298E.jpeg

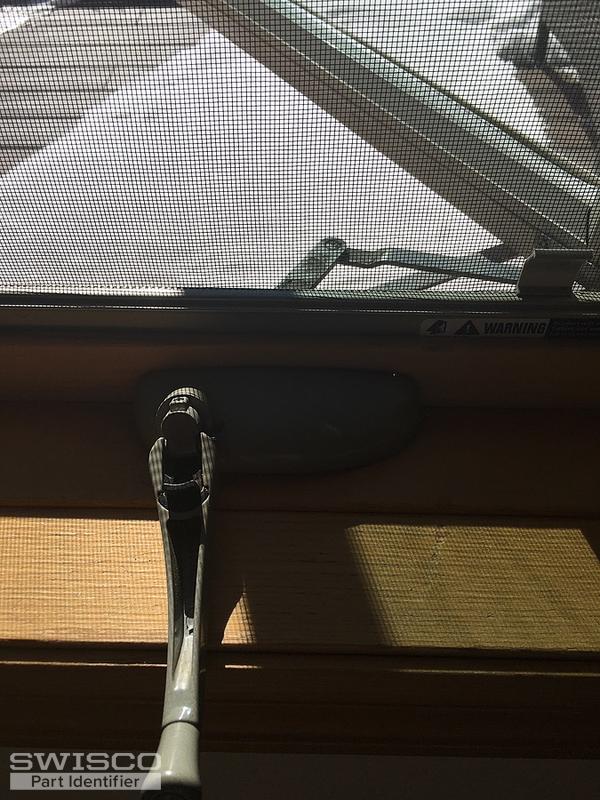

Thumbnail of the uploaded file named 68F99B2E-5BA0-410D-98E2-1F21A2CD76AE.jpeg
Profile picture of Dave Sr.
Dave Sr. from SWISCO responded:
February 22, 2021

Thanks! I believe your operator would be the 39-326. Take a look and compare the measurements with your original to confirm. We also sell the 39-325 for the opposite side.
Roto Folding Crank Handle, 11/32"
Roto Folding Crank Handle, 11/32"
39-232
$10.80
X-Drive Split Arm ROTO Operator, Vinyl App
X-Drive Split Arm ROTO Operator, Vinyl App
39-326
$34.52
X-Drive Split Arm ROTO Operator, Vinyl App
X-Drive Split Arm ROTO Operator, Vinyl App
39-325
$34.52
2-Bar Hinge Set, 10"
2-Bar Hinge Set, 10"
36-048
$17.47
