Broken channel balance 28c

Home Owner from Maryland

Aug 5, 2020 9:45 am

Hi,

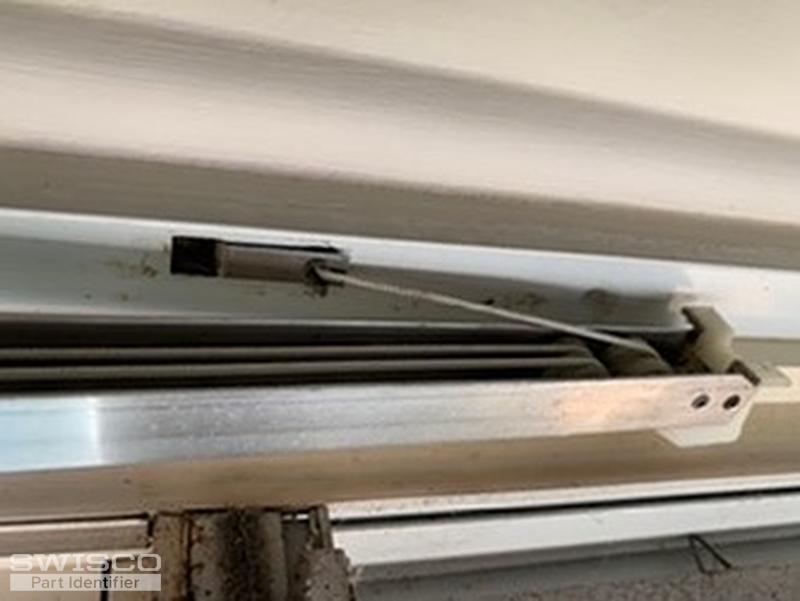

I would like to order a single channel balance, plus parts.The current channel balance indicate 28C inscribed on it. It is half an inch wide and 28 inches in length.

It's for a non- tilting window.

Thank you

5 user uploaded images

7 Replies

Casey from SWISCO

Aug 7, 2020 11:17 am

Hello,

We'd be happy to help but we'll need to see an undamaged balance fully removed from the window to identify it. I would also recommend double-checking the length of the balance, making sure you're only measuring the metal channel and not including the top or bottom attachment in your measurement. Thank you!

Home Owner from Maryland

Aug 10, 2020 10:13 am

Re-measured the metal channel only, it is 28.5" long, and .5" wide on the back, and opening for the spring.

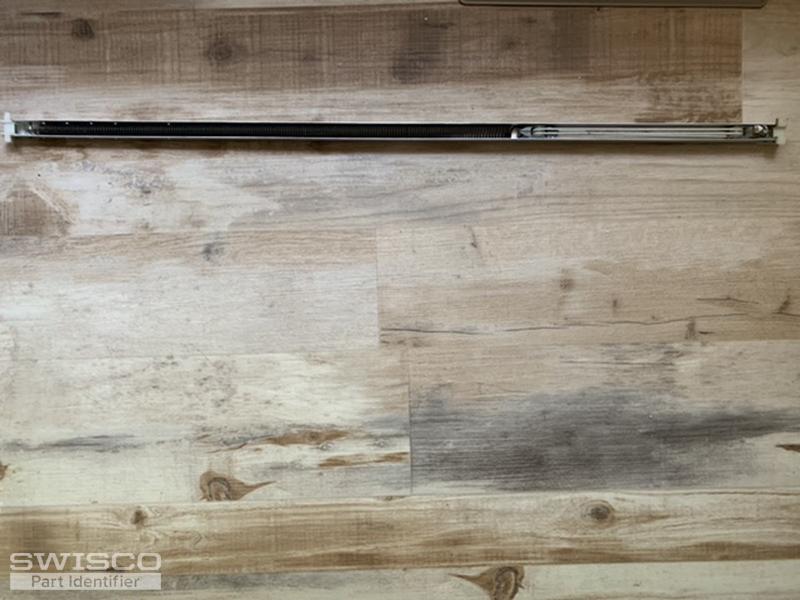

Also, took off a functional channel, photo including.
Thanks

1 user uploaded image

Casey from SWISCO

Aug 10, 2020 2:05 pm

Based on the information we've gathered thus far, I think there is a good chance that these balances would need to be custom made. To move forward, we'd like to confirm the weight of the sash that these balances are supporting, as well as see a clear, close up photo of the top and bottom attachments.

Home Owner from Maryland

Aug 10, 2020 3:09 pm

Please advise how to determine sash weigh, as I don't have a scale.

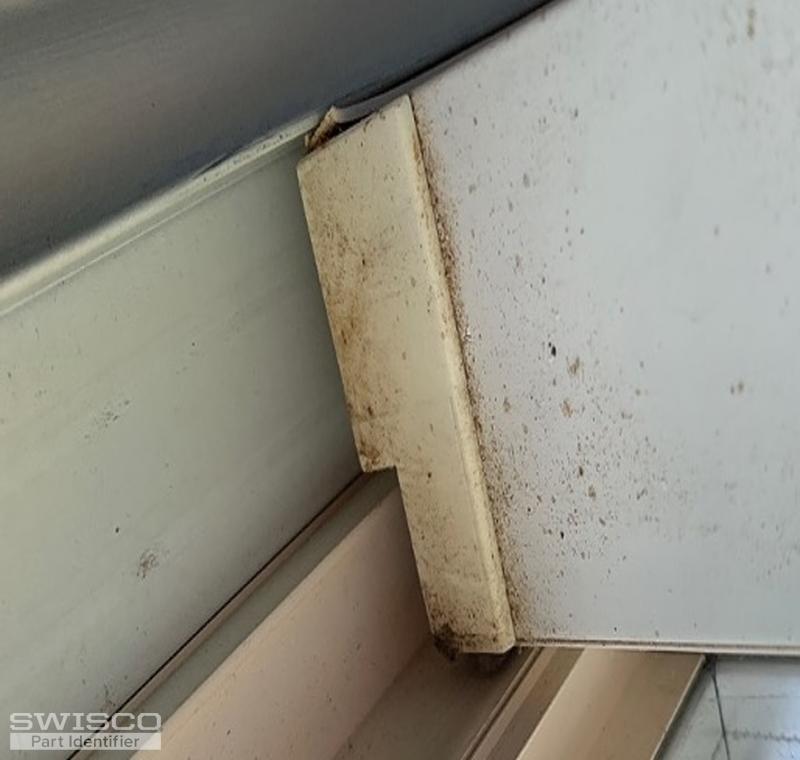

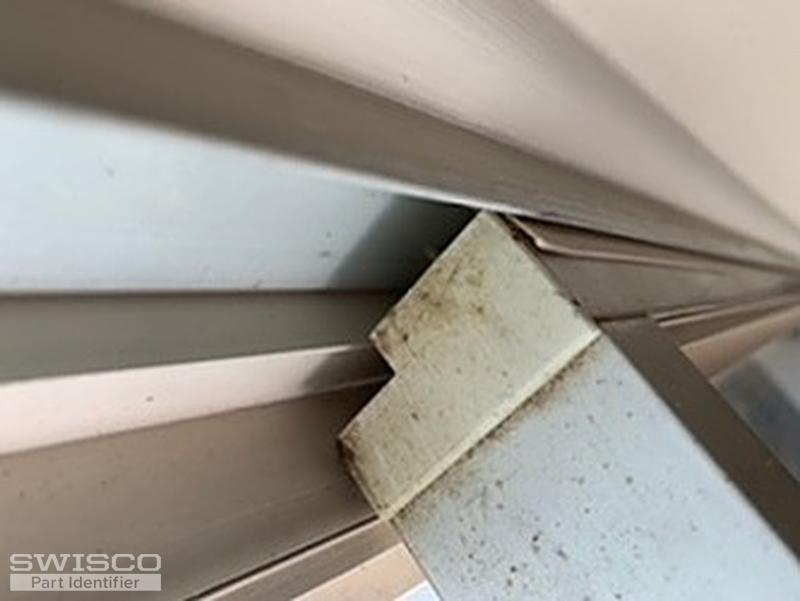

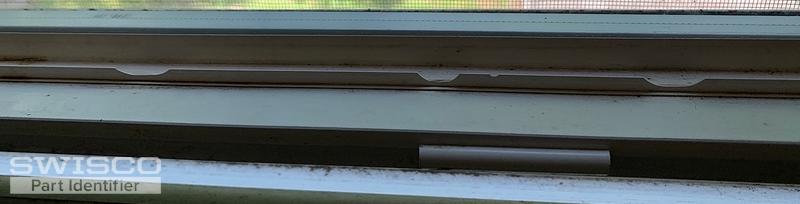

The window is a single hung , no tilt aluminum construction. Roughly the Dimensions are:56x36

4 user uploaded images

Home Owner from Maryland

Aug 11, 2020 7:13 am

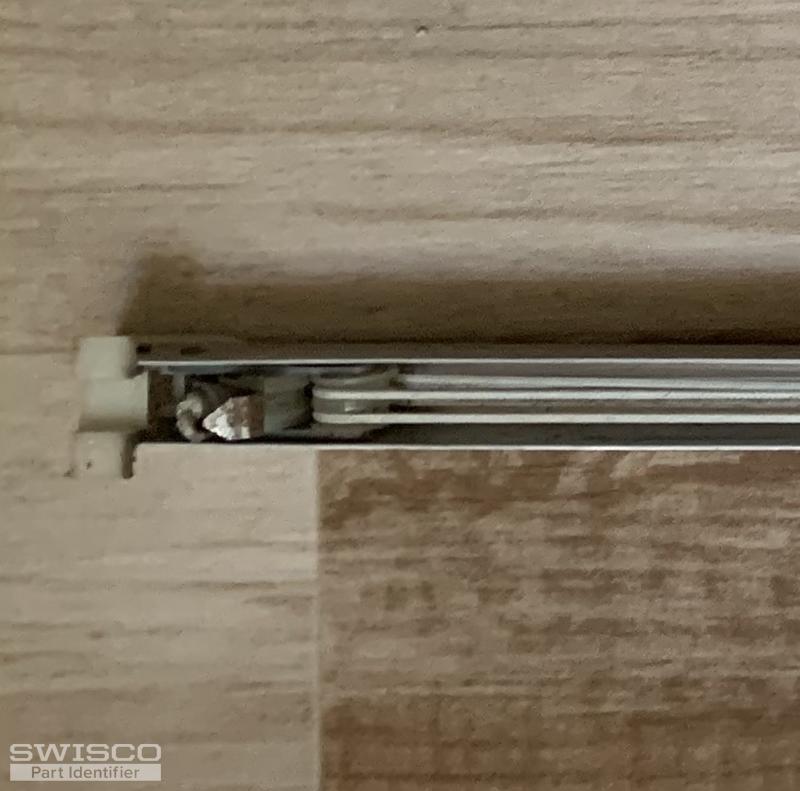

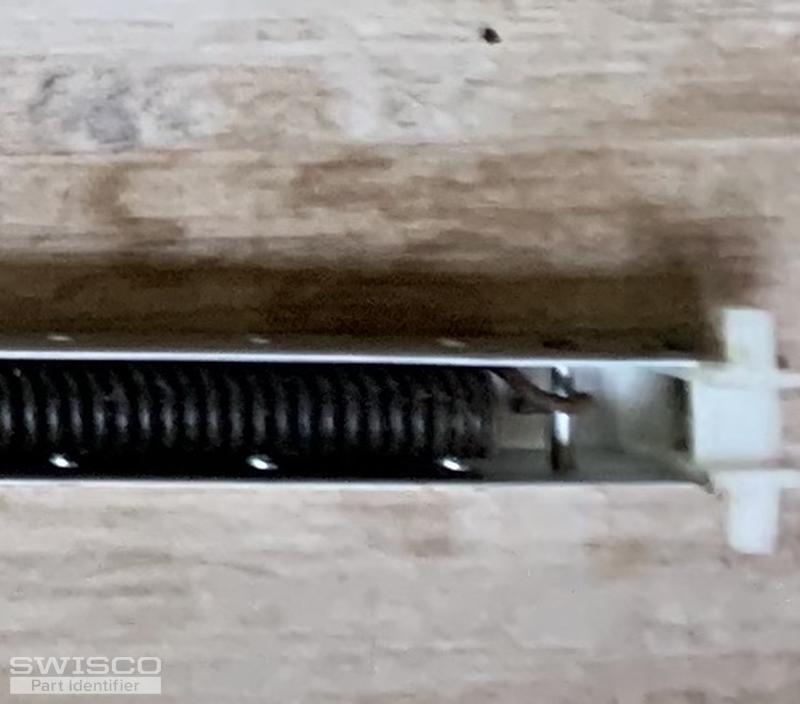

One of the previous pictures sent has closeups. And the stamped 28c bsi on it.

Casey from SWISCO

Aug 11, 2020 10:49 am

Thank you, we just sent over a custom order link for two replacement balances. Take a look and please let us know if you have any other questions. Thanks for posting!
