Broken coil balance

A home owner from Dublin, Ohio says:
I have a broken coil balance on one side of a window. Not sure what is the correct replacement part for it. Its width is 1/2" and the window length is approximately 29". Also, do I just replace the coil balance? Or the complete assembly?

Thanks,
Albert

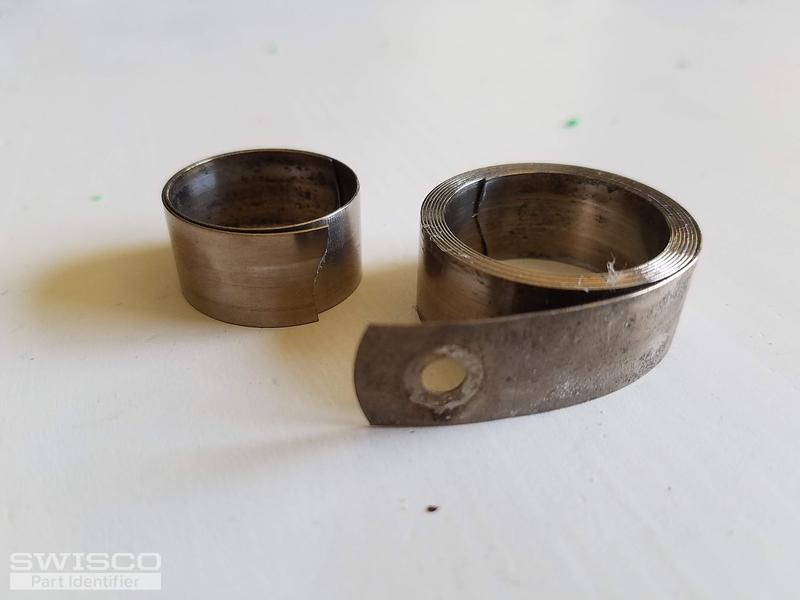

Thumbnail of the uploaded file named 20200510_141325.jpg

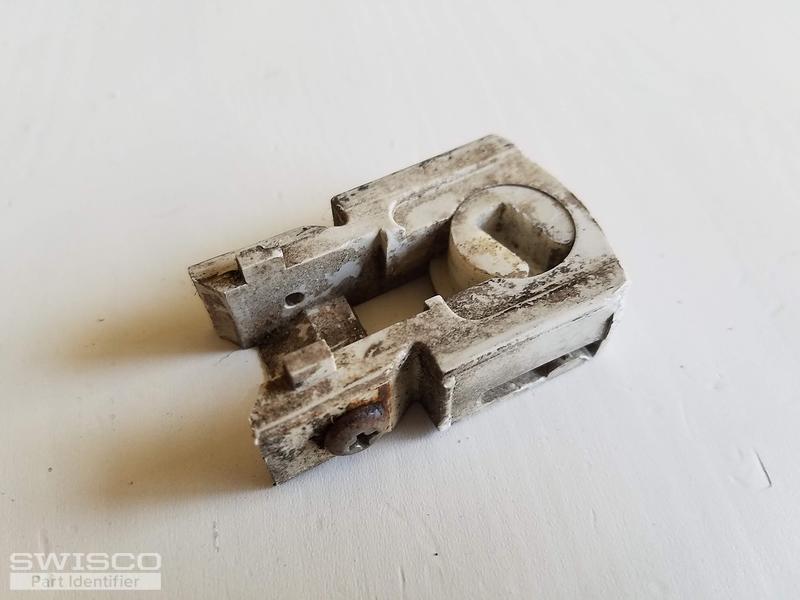

Thumbnail of the uploaded file named 20200510_141343.jpg

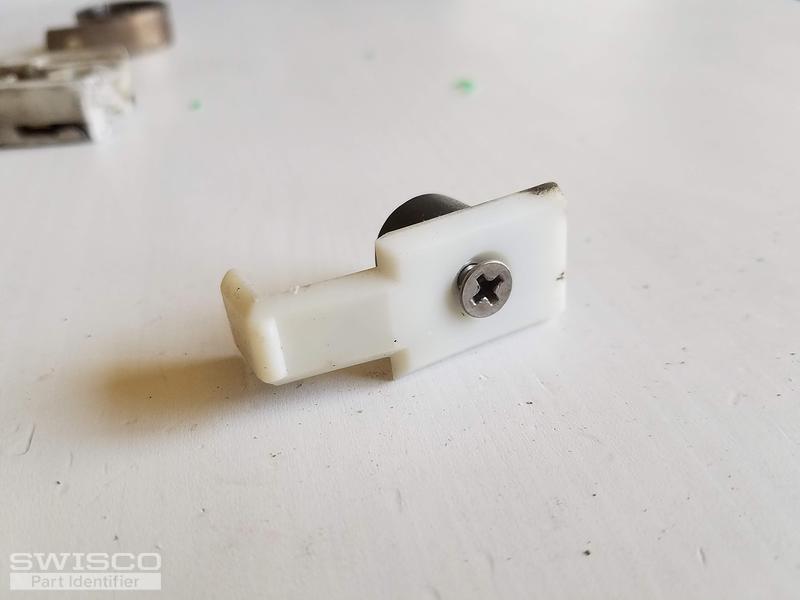

Thumbnail of the uploaded file named 20200510_141448.jpg
Profile picture of Bob
Bob from SWISCO responded:

The pivot shoe looks like our 15-180, along with the 15-186 Balance Clip and 15-182 Bushing. This system uses our Series 190 Coil Balances. If the other components are undamaged, you certainly would be all right just replacing the coil springs. Look for a stamp number on the coil that tells you what spring weight you need. If there is none, or you are uncertain, obtain the exact weight of your window sash. Give us that exact weight, and we'll work out what you need.

A home owner from Dublin, Ohio says:
Good. The stamp on the coil is 832. Thanks.
Profile picture of Bob
Bob from SWISCO responded:

In that case, see our S190-840, which is for 8 lbs of support. Let me know if you have any other questions.
