Home Owner from NY

Apr 14, 2024 4:56 pm

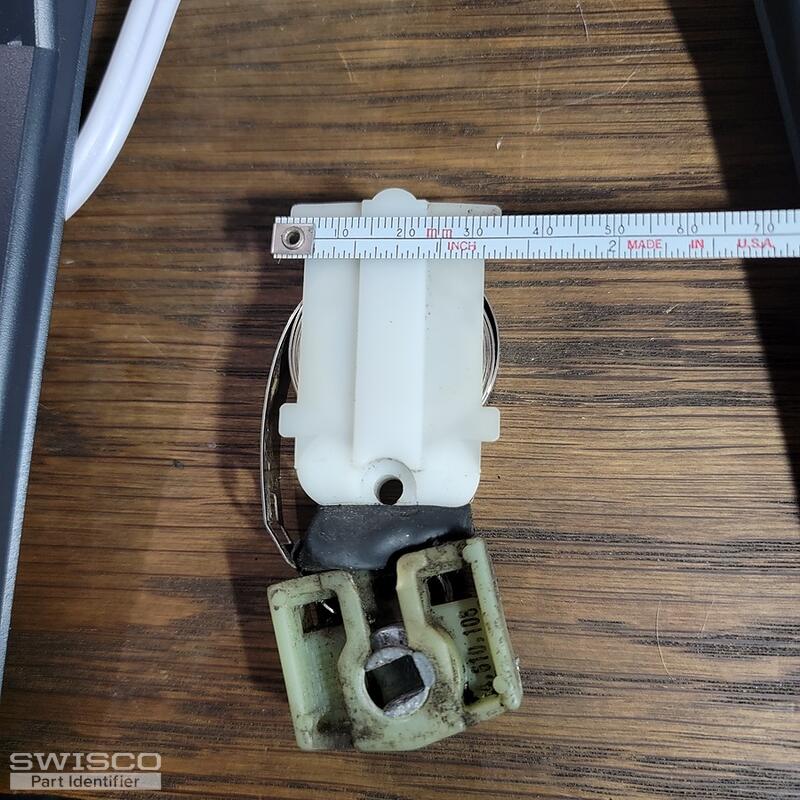

The lighter plastic part is labeled as OM137 patent pending. The lower part is labeled 4.610.108. Thank you!

4 user uploaded images

6 Replies

Casey from SWISCO

Apr 17, 2024 9:53 am

Hello,

Your pivot shoe here appears to match our 15-111. This is compatible with either the 3/8" thick Series 165 or the 1/2" thick Series 160. Look over the specifications and related items shown on our product pages. Thank you!

Alternate image for 15-111

Home Owner from NY

Apr 17, 2024 2:22 pm

any part suggestions for the top part or the part as a whole? The metal coil is broken and the rubber gasket between the parts is also worn. Thanks for your help.

Casey from SWISCO

Apr 17, 2024 2:39 pm

If you're referring to the black bumper between the pivot shoe and the coil, take a look at the 15-148 shown below. Once you determine if your coil thickness matches the S160 or S165, you'll find the support parts under the related items section of our product page.

Dimensions for 15-148

Home Owner from NY

Apr 17, 2024 7:55 pm

thank you!

Casey from SWISCO

Apr 18, 2024 8:37 am

We're happy to help! Just let us know if you need anything else.
