Broken coil balancer

Question

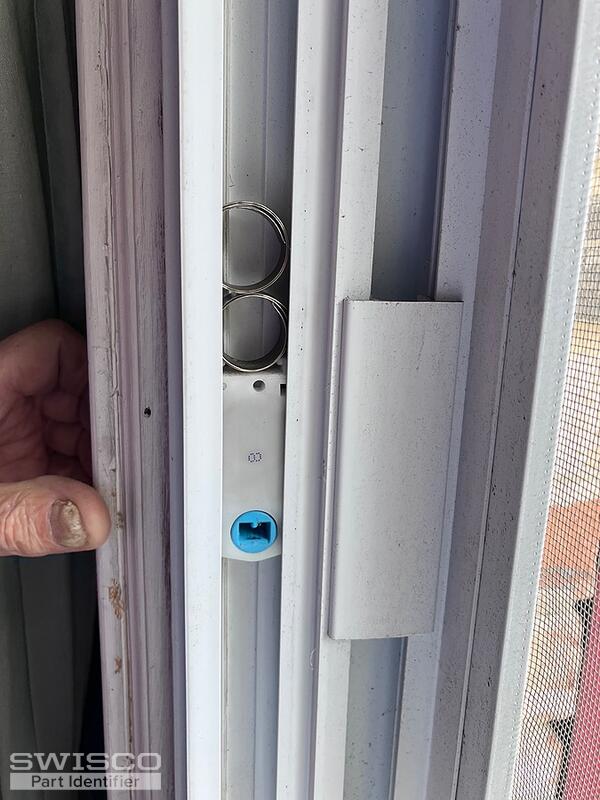

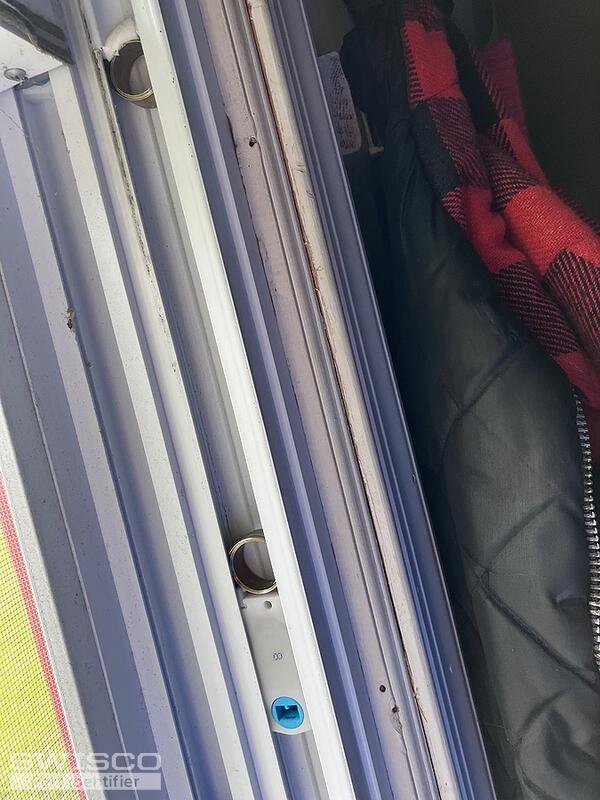

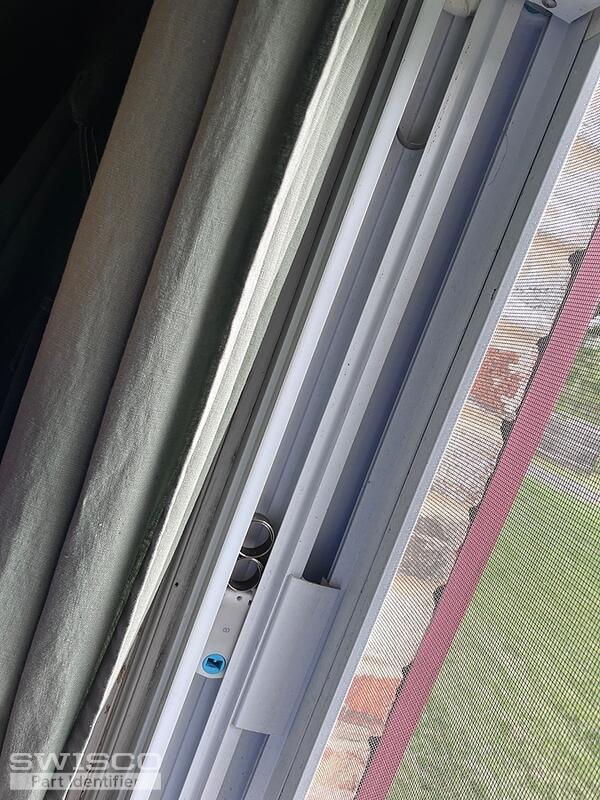

Need replacement parts for coil balancer. The plastic piece is3/4" wide and 3 1/4" tall. Window sash is 32" w X 27" t insulated glass. I think the window is Jeldwen aluminum. Maybe7-8 years old.

Jasmine · Accepted Answer

Thanks for reaching out to us! Your coil balance housing looks similar to our 15-087 coil housing pivot. Carefully review and compare the dimensions to those shown below to determine if this is the correct replacement. I am confident these are the replacement you'll need.

Detail of 15-087

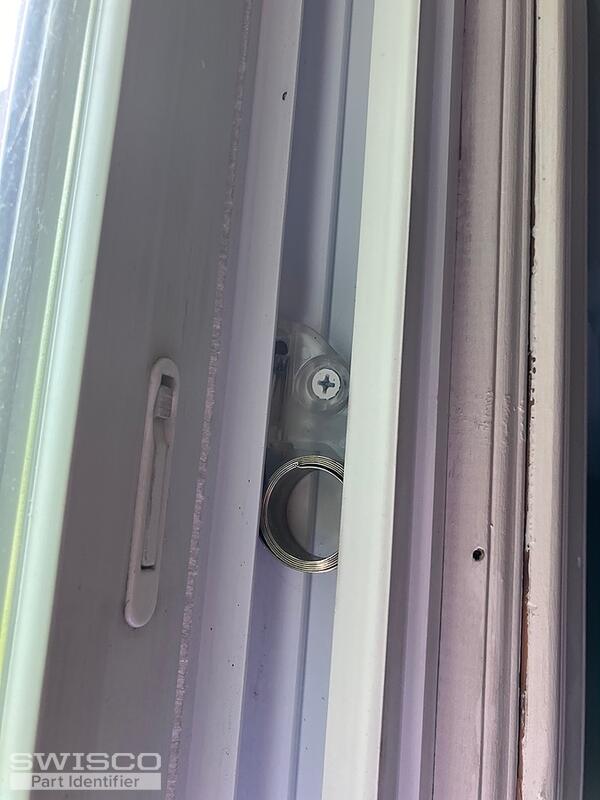

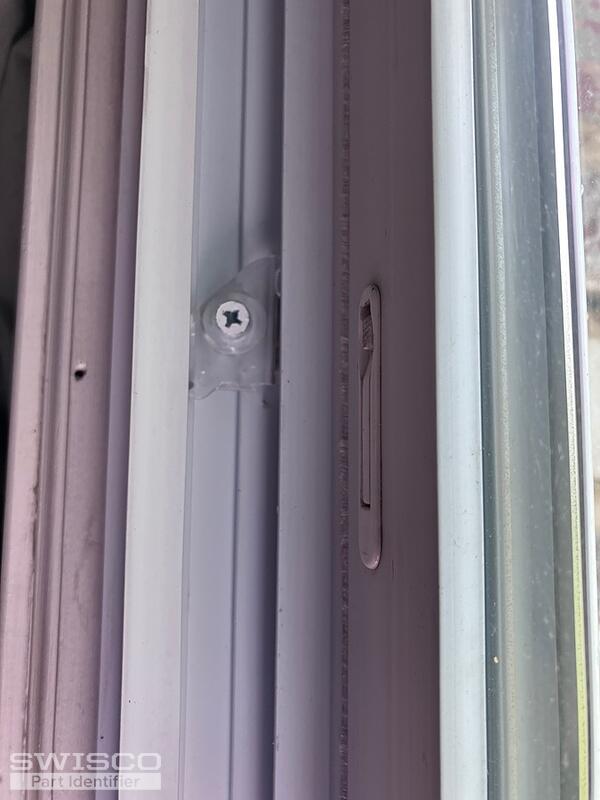

The coil housing pivot is compatible with the Series 180 coil balance spring, which is being anchored in the window channel using the 16-031 Mounting Bracket. Since your housing is stamped with an 8, you'll need the S180-08 Coil Balance.
