Broken coil spring - replacement

Question

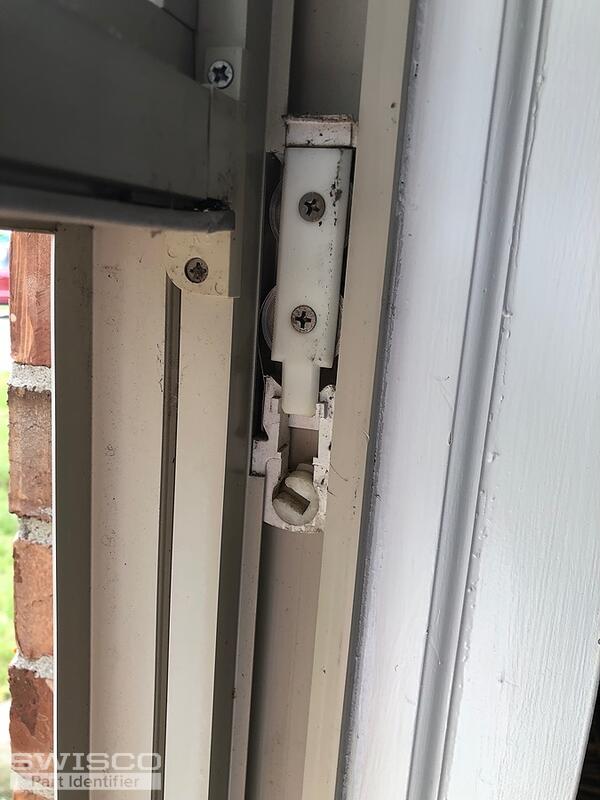

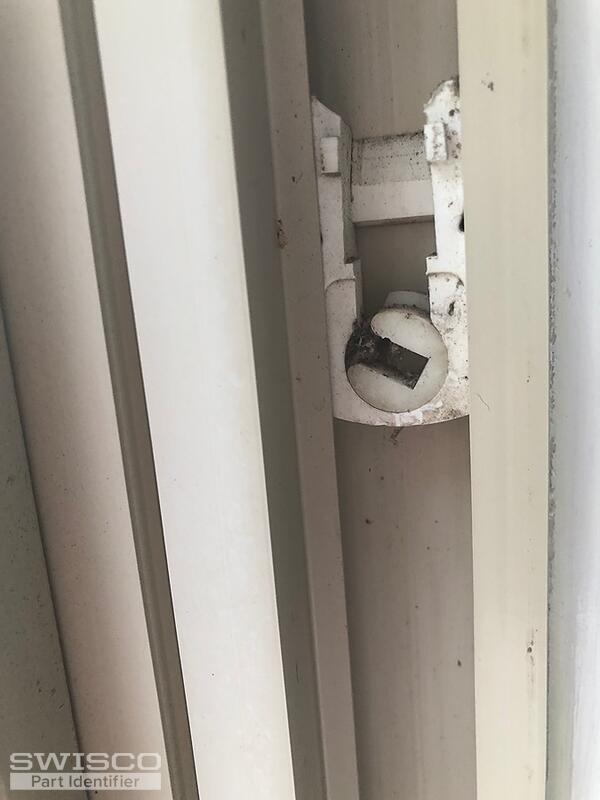

The double Support Clip is identical to your part 15-181.
The pivot shoe is identical to 15-180

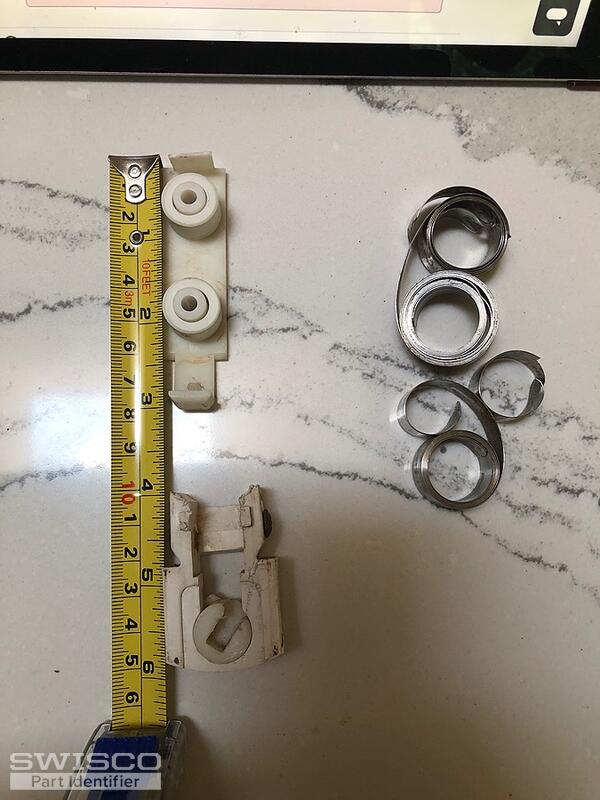

The coil has a 5 stamped in it.

The window is 42" X 30" and weighs 26 pounds.

Could you please suggest the correct spring.

Am I right that this a single spring for each side of the window?

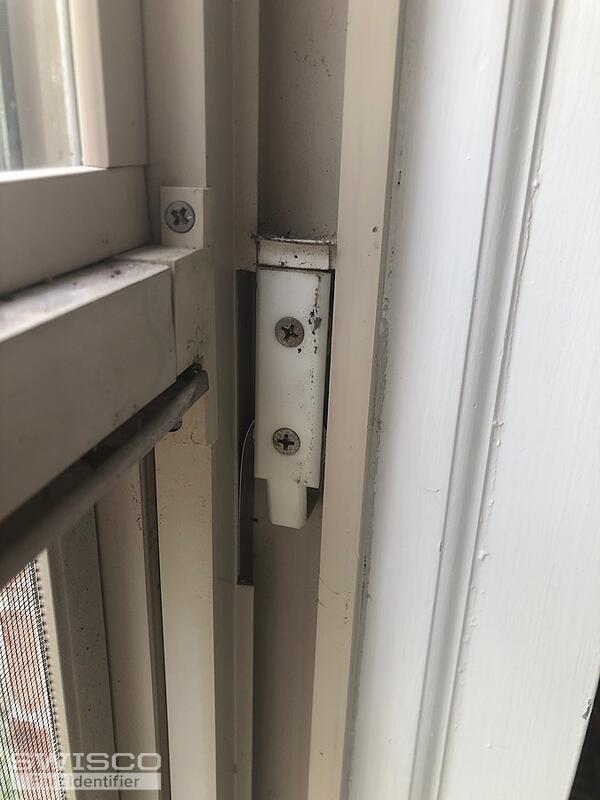

There are two screw mounting points on the picot shoe.

Emily · Accepted Answer

Thanks for reaching out to us. I agree, our 15-180 shoe looks like a good match as does the 15-181. This is a double spring support so there would be two springs on each side of the window.

If the window weighs 26 pounds, you can use one S190-540 5-pound spring and one S190-840 8-pound spring for each side of the window. 13 pounds on each side of the window will total 26 pounds of overall support.

I'll be here if you have any questions!
