Broken coil springs

Question

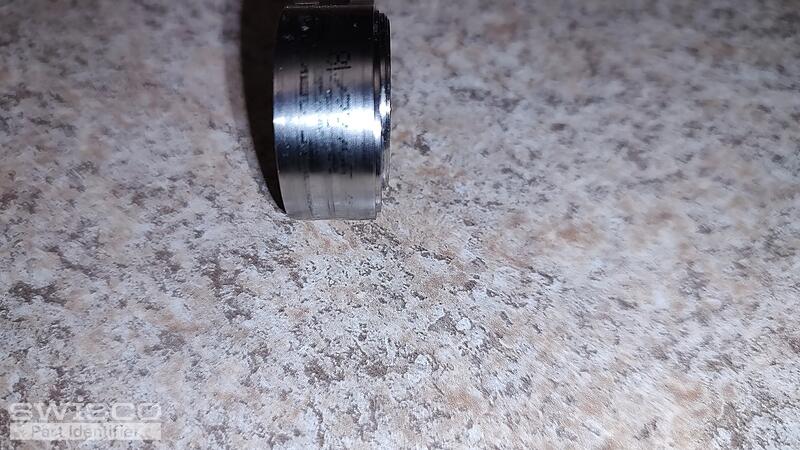

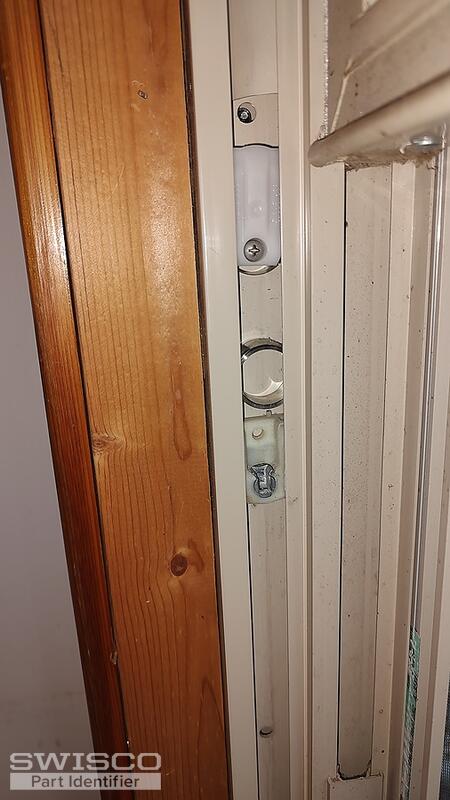

Believe this is from an Atrium window about 10 years old. Spring has a marking that is 7.5# 35". There are some other numbers that are difficult to make out. The window weighs about 15#. The holders appear to be in working order but both springs are broken and bent. Springs are 1/2" wide.

Casey · Accepted Answer

Hello,

Your pivot shoe resembles the 15-228, which uses the 1/2" Series 160. Review the specifications below to confirm it's a match. Your stamp would correspond to the S160-07. Take a look and let us know if you need anything else. Thanks for posting!

Dimensions for 15-228
