Broken exterior handle

Quick Learner from Chicago

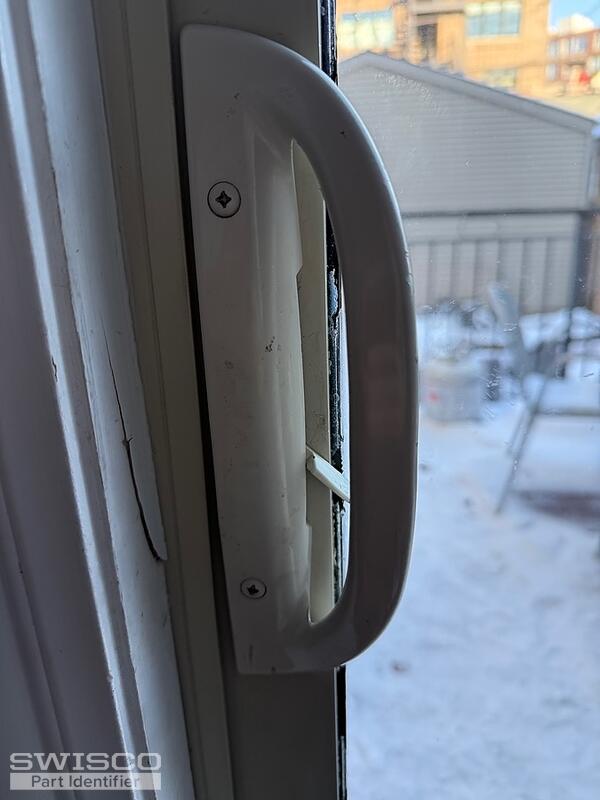

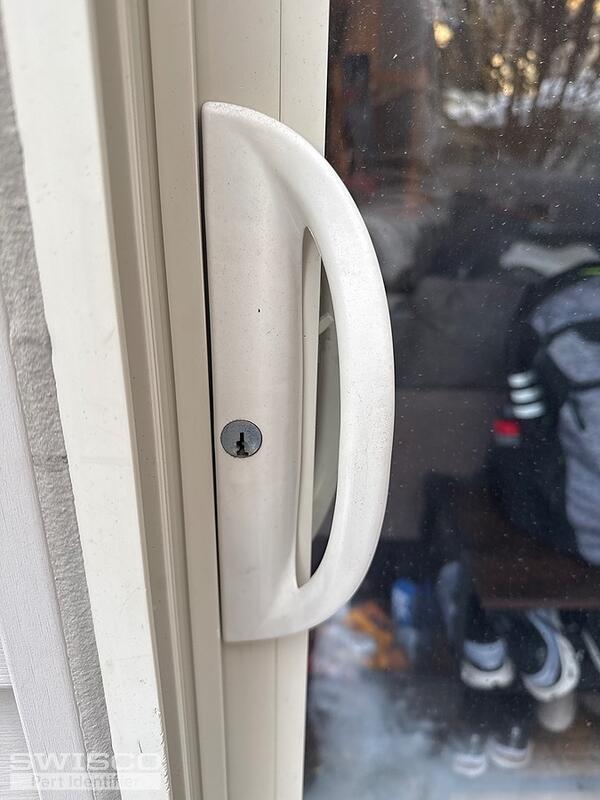

looking for a replacement to the exterior handle. The inside has a toggle and exterior is keyed. The assembly is 9.25 high

3 user uploaded images
4 Replies
Emily
Emily from SWISCO
SWISCO
Expert

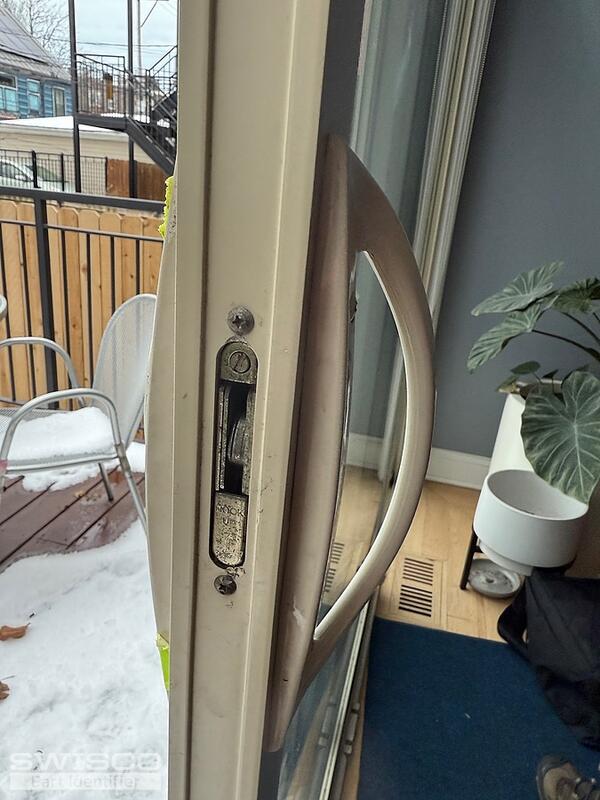

Thank you for contacting us! We're happy to look into this. Can you confirm the installation hole center spacing, measured from center to center? Can we also see a photo of the mortise lock? Those details should help with our search.

Quick Learner from Chicago
Thanks for the prompt response. The spacing is about 5.5in


1 user uploaded image
Emily
Emily from SWISCO
SWISCO
Expert

Thank you for the additional photo! I’m afraid we don’t have a handle set that matches your hole center spacing. However, your mortise lock looks similar to the 82-218, which is compatible with the 82-030B and 82-030A handle sets. Both handle sets feature keyed exterior pulls; however, the 82-030B has a thumb lever in an offset position, while the 82-030A has a centered thumb lever.

To determine which handle set is best for your door, you will need to remove the old handle and check the position of your thumb lever. Please note that the installation hole center spacing for these parts is 3-15/16”, so you will need to drill new holes. Be very careful when drilling to avoid hitting the glass. Take a look at the specifications and let us know if you have any questions.

Dimensions for 82-030B
Dimensions for 82-030B

Dimensions for 82-030B
Dimensions for 82-030B

Dimensions for 82-030A
Dimensions for 82-030A

Dimensions for 82-030A
Dimensions for 82-030A
