Broken exterior sliding glass door handle bottom female hardware

A home owner from Las Vegas, NV says:
March 17, 2023

Hello,

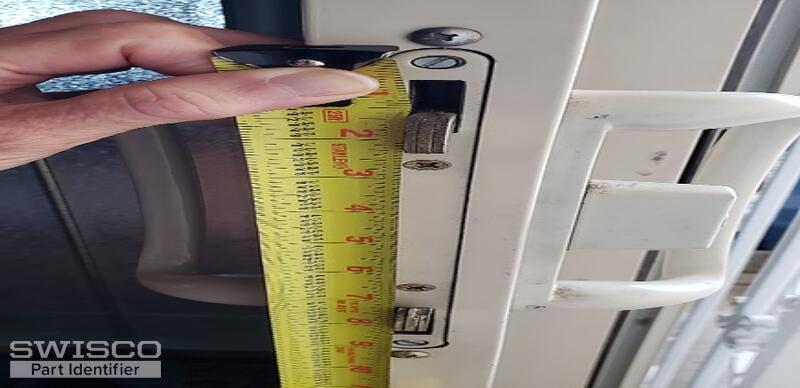

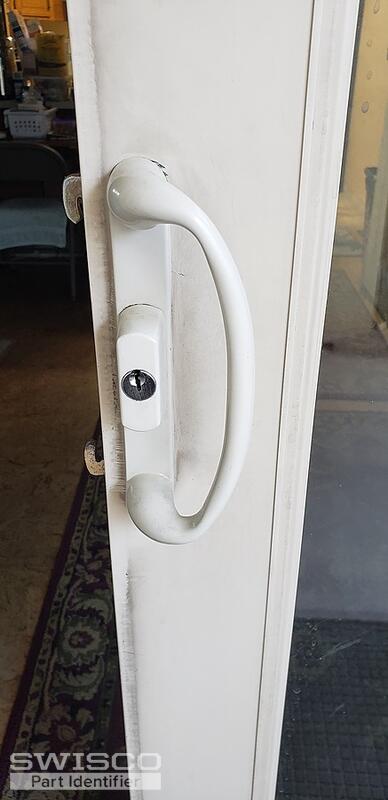

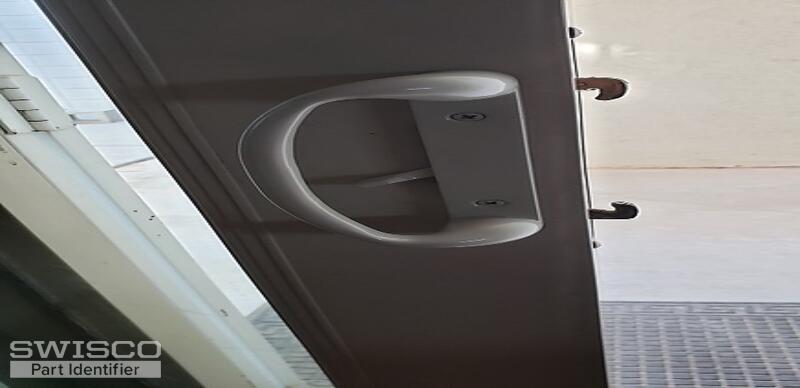

We need a replacement door handle for a Simonton sliding glass door purchased in 2005. The exterior handle, bottom female threshold is broken off. There is a double locking system with 2 hooks. The hardware inside the door jam is 9" long and the hole spacing is 3 15/16. I believe we can use the lock we have in the old handle.

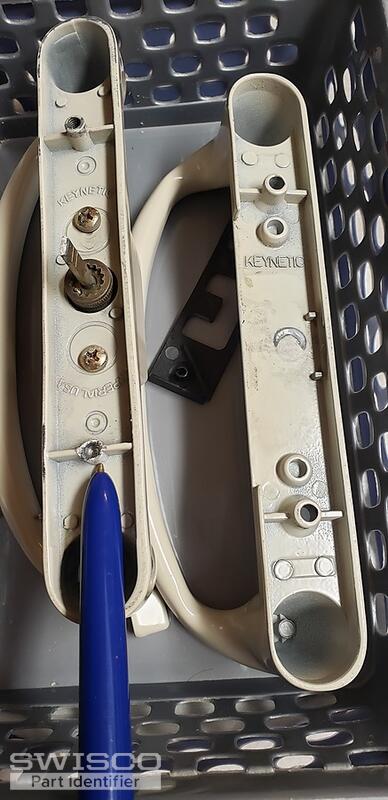

I have a couple more photos of the double lock hardware but hopefully you can see from the diagram. The broken hardware is circled in dark red and pointed out by the ink pen. The door handles are beige in color.

I would be grateful for any guidance you can share with us.

Thank you,

Marcia

Thumbnail of the uploaded file named 20230317_011751.jpg
Thumbnail of the uploaded file named 20230316_171610.jpg
Thumbnail of the uploaded file named 20230316_171419.jpg
Thumbnail of the uploaded file named 20230316_171334.jpg
Profile picture of Tom
Tom from SWISCO responded:
March 17, 2023

Thanks for reaching out to us, Marcia. We don't sell this exact handle set, but I feel confident that you could use our 82-030 as a replacement, along with our 82-310 key lock (sold separately). We also sell the 82-239 mortise lock.

A home owner from Las Vegas, NV says:
March 17, 2023
Thank you Tom. I was thinking the same thing. I will order the handle and if our lock doesn't work I will order that at a later date. I think the Multi-Point Mortise Lock and Keeper if still in working order for now too.
Marcia
Profile picture of Tom
Tom from SWISCO responded:
March 20, 2023

Awesome, sounds good! We really appreciate your business, too. It means a lot.

Please let me know if you had any other questions and we will do our best to assist you.
