Broken guide and difficult balances

Home Owner

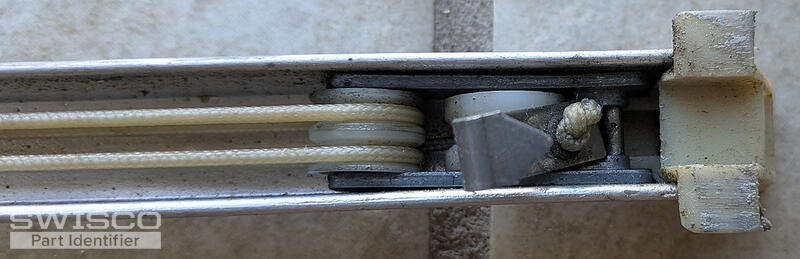

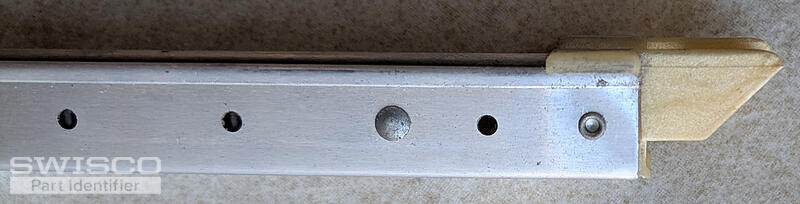

I have two windows which popped a sash guide (probably dried out) and the balances are extremely difficult to move.  I think I located the guides as the 5/8 Norandex variety, but I need to make sure I'm picking up the correct balances.  The only thing on the side of the balance is the stamp "2930", which I read is the spring strength.  I measured the actual metal body at 30" (without the ends).  I am attaching a bunch of photos to 1) make sure I'm correct that this is the Norandex guide and 2) see if you can point me in the right direction to order the correct balances.  Also is a photo of another window, with its guides and balances intact.  Thanks in advance!
5 user uploaded images
3 Replies
Home Owner
I also wanted to note that these are non-tilt windows.
Thanks!
Emily
Emily from SWISCO
SWISCO
Expert

Thanks for reaching out to us. Based on these photos, your balance could be a match for the Series 380, Series 385, or Series 378. The best match depends on the depth of the shoe so you'll have to measure as shown below. You can also select the 2930 stamp option.

As for the top sash guide, we agree that the 18-161 looks like a good match for your old one.

Comparison of the S378, S380 and S385 balance shoes.
Comparison of the S378, S380 and S385 balance shoes.

Profile view of 18-161
Profile view of 18-161

Detail of 18-161
Detail of 18-161
