Broken handle on window

A home owner from Foxboro says:
March 13, 2020
Hello,

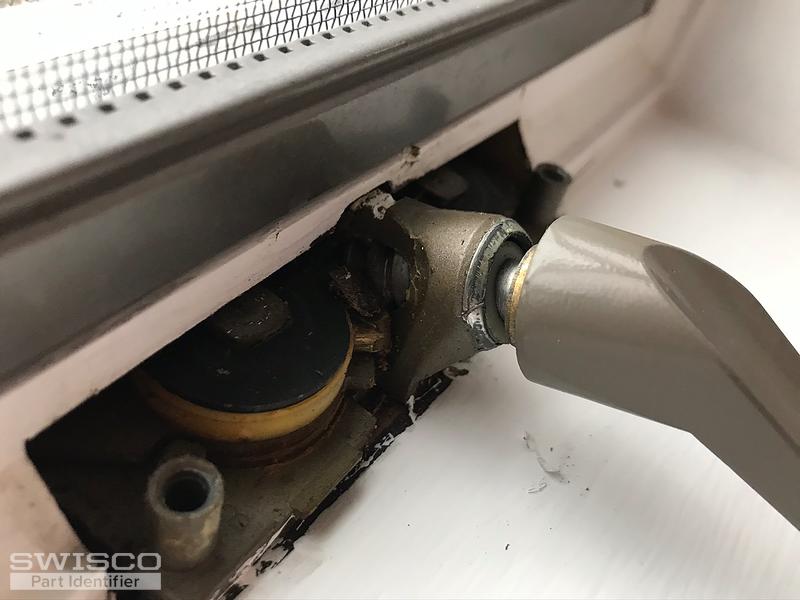

Trying to figure out why handle does not work. Keeps slipping.

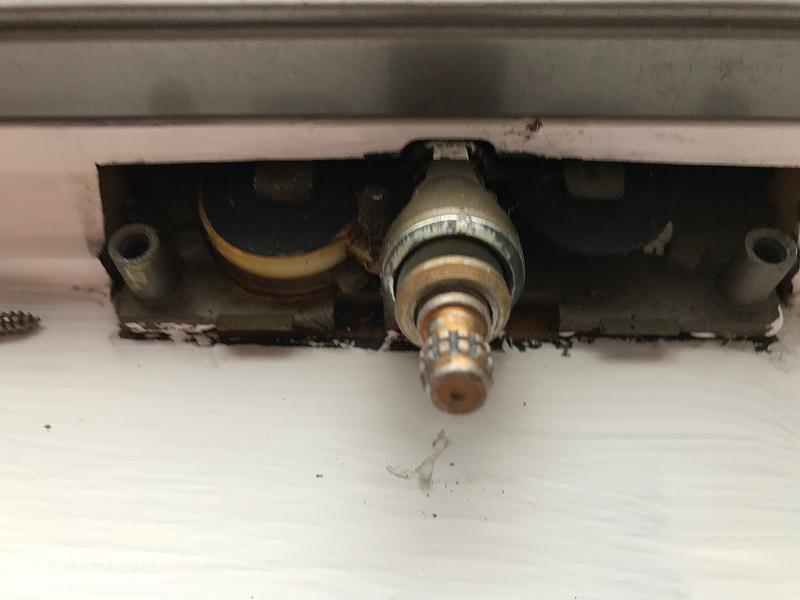

There appears to be a washer on the receptacle part of the hardware which is loose. Could that be the problem?
The number on the stone colored plastic cover is 7191B-33
Thank you.

Paula
Thumbnail of the uploaded file named 9779CA59-2469-49BF-9903-57A1B655A003.jpeg
Thumbnail of the uploaded file named 579E217E-3BFB-4129-A718-8ABD43FA41FA.jpeg
Thumbnail of the uploaded file named 245B260D-306A-4680-B2A9-59EF53E1B0C6.jpeg
Thumbnail of the uploaded file named F32FFCFC-8A4E-4DD4-8137-7292806FCCDB.jpeg
Thumbnail of the uploaded file named 29ACA360-DE88-4D63-9843-A5882A1262EA.jpeg
Profile picture of Tom
Tom from SWISCO responded:
March 16, 2020

It sounds like the worm gear has stripped out. There's no repairing that, unfortunately; you'll need an all new operator.

We can help, but I'll need to see more of the operator itself. Your photos currently only show the base. Can you open the window and show me a top-down photo of the arms? That will be a huge help. Thanks!
