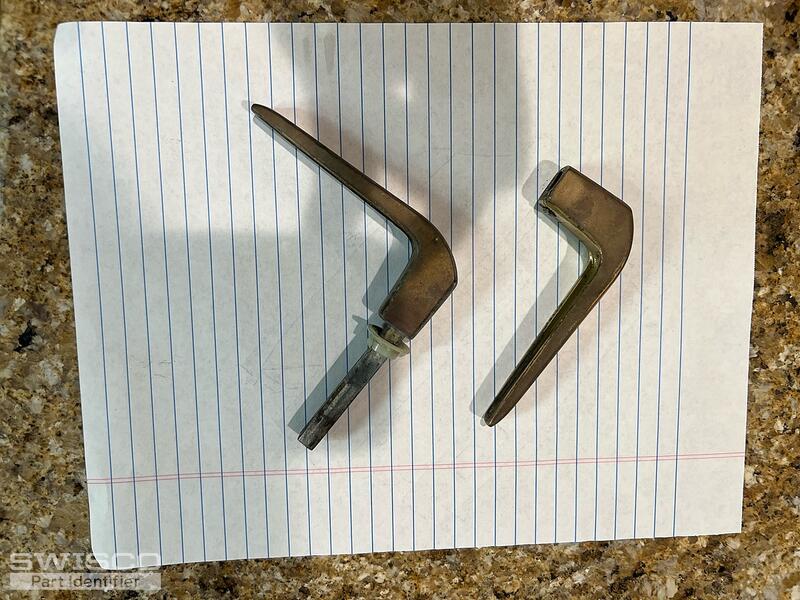

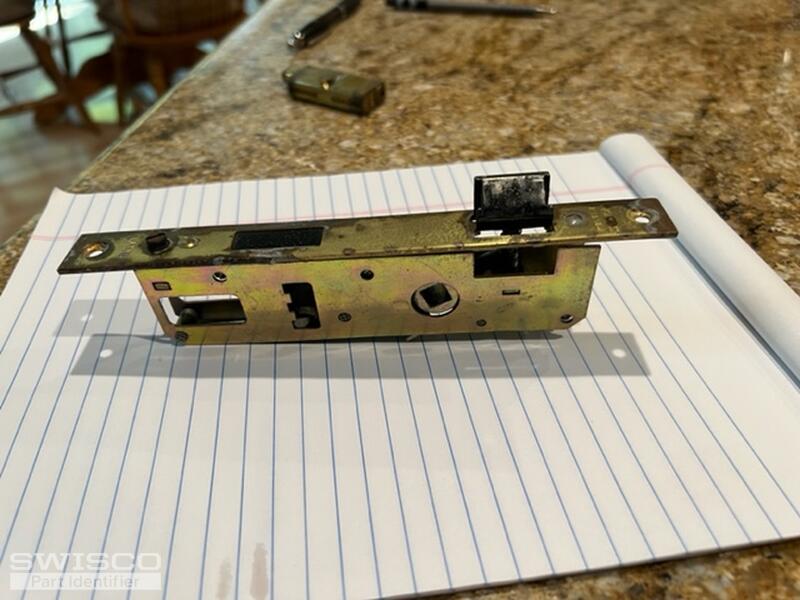

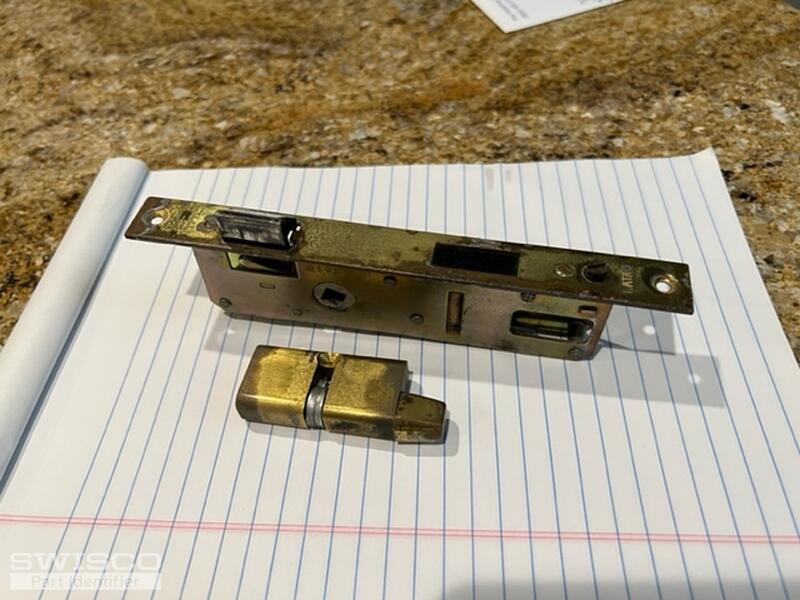

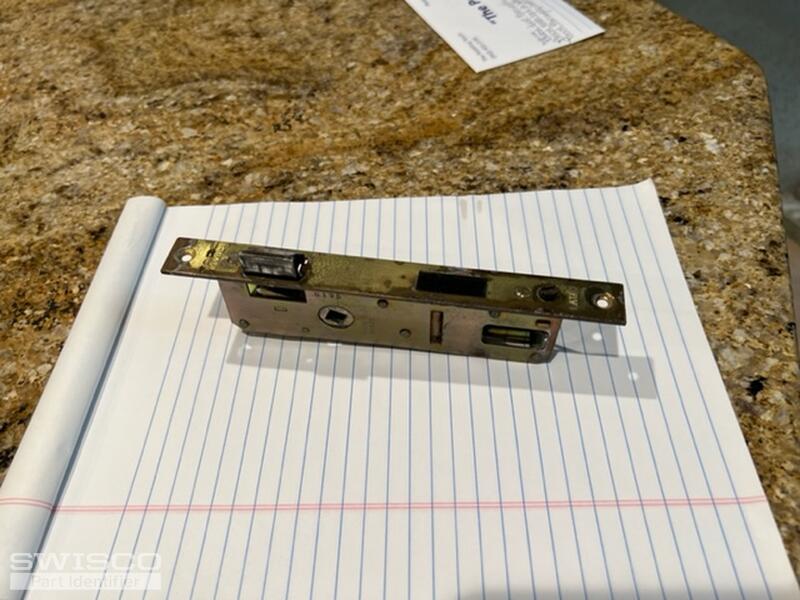

Attached are several photos of my old Dado (approx 25 years) lockset. I think your part number 40-049 might be the correct replacement for it. Do you agree?

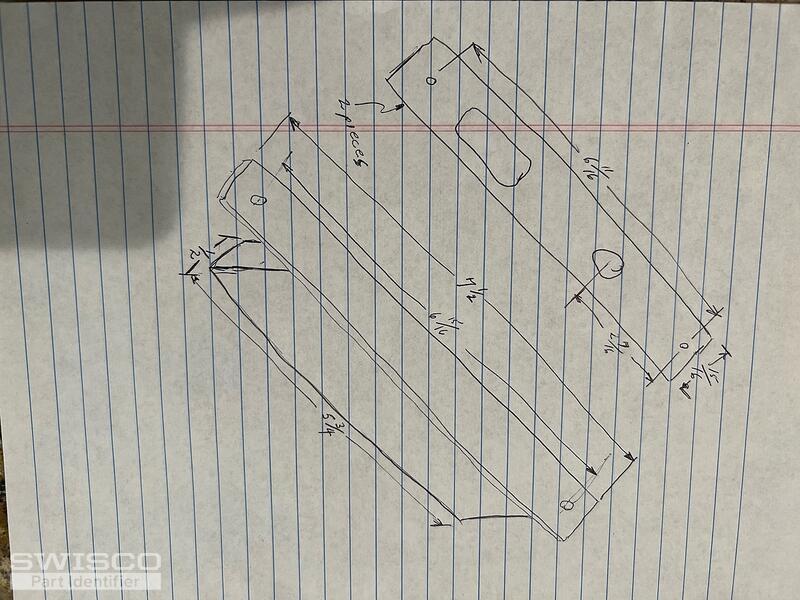

My drawing may be a little rough, but hopefully it provides the information you need. Let me know if you need anything else.
Thanks for your help.
Broken lockset
Quick Learner from USA
Sep 19, 2022 1:26 pm
5 user uploaded images
4 Replies
Casey from SWISCO
Sep 22, 2022 10:05 am
Hello,
I agree that your hardware resembles the mortise lock that comes with the 40-049 lockset but you'll need to confirm that the dimensions shown below match up to your assembly. Thanks for posting.
alternate view of 40-049
Dimensions for 40-049
Quick Learner from USA
Sep 22, 2022 12:43 pm
One more question about dimensions. What is the width of the body of the lockset? That would be the part that goes inside the door. My old one is 1/2 inch.
Thanks,
Rick
Thanks,
Rick
Casey from SWISCO
Sep 23, 2022 8:27 am
The 40-049 mortise lock body also measures 1/2" wide.
