Broken pivot lock shoe

A quick learner from Ohio says:
September 12, 2023
Hello! I hope you can help me identify the proper Pivot Lock Shoe(?) to stop my top sash from slamming down. Thank you in advance!

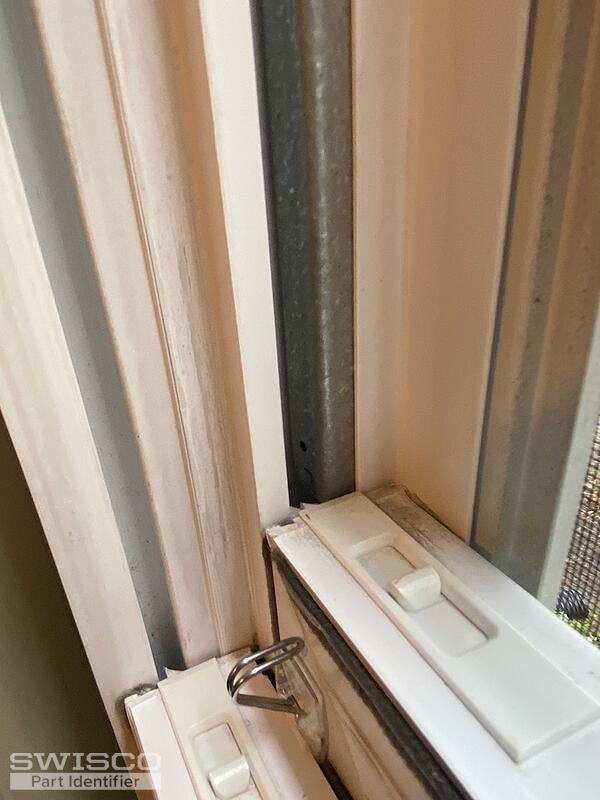

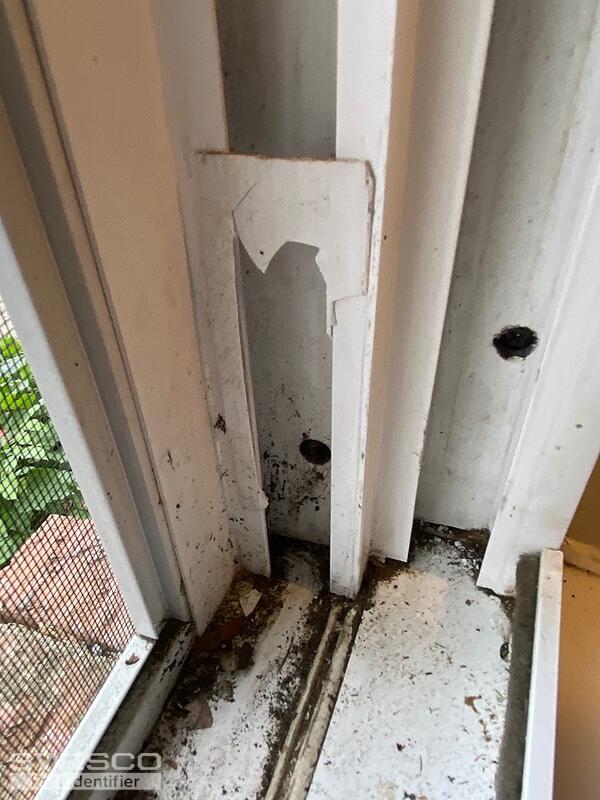

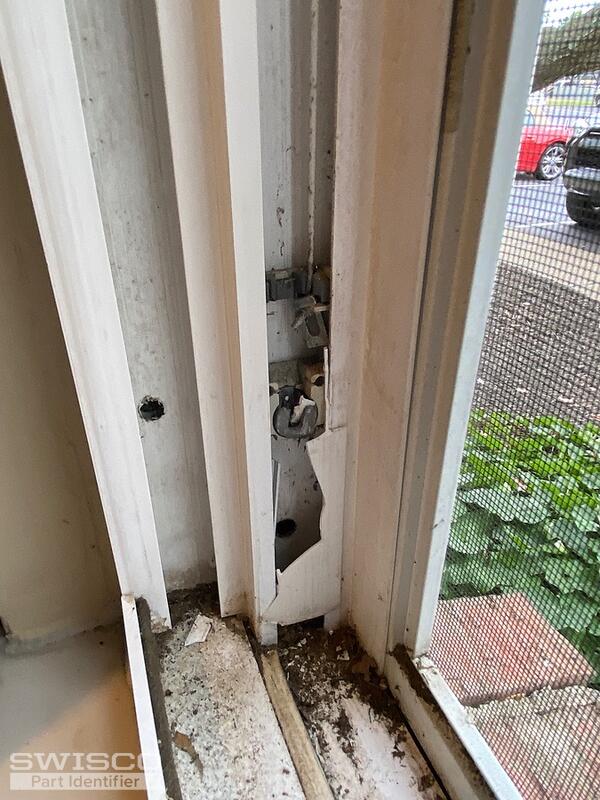

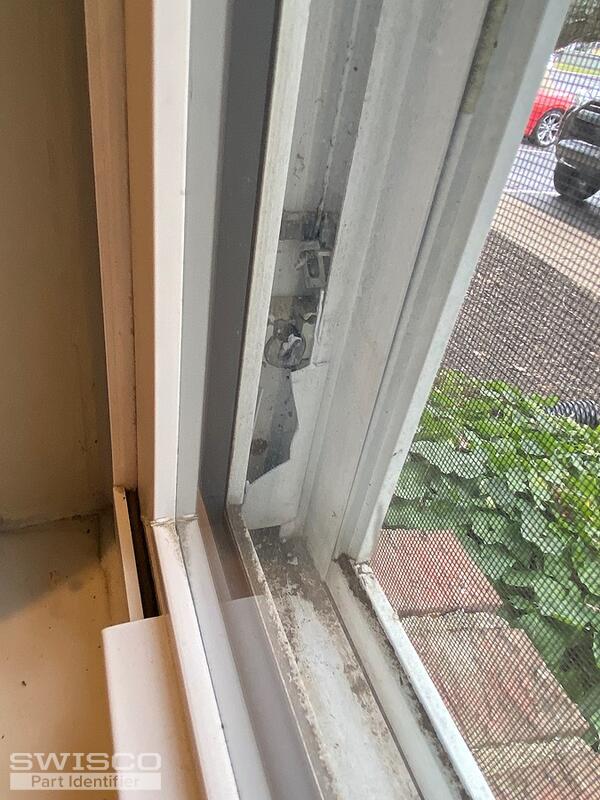

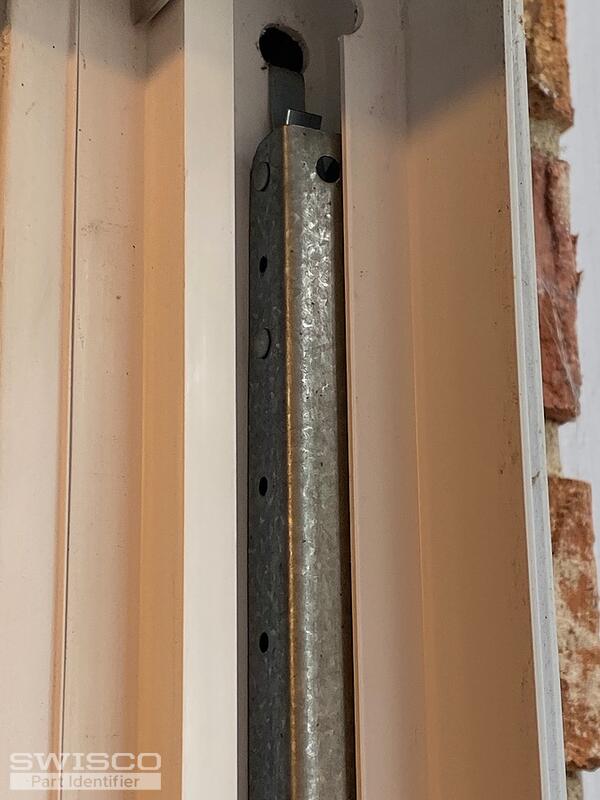

Thumbnail of the uploaded file named IMG_3289.jpeg
Thumbnail of the uploaded file named IMG_3287.jpeg
Thumbnail of the uploaded file named IMG_3285.jpeg
Thumbnail of the uploaded file named IMG_3284.jpeg
Thumbnail of the uploaded file named IMG_3282.jpeg
Profile picture of Jasmine
Jasmine from SWISCO responded:
September 13, 2023

Thanks for writing in! Given the the issue you are having the window, there is a strong likelihood that you'll need to replace the balances in addition to replacing the shoe. To identify the correct replacement balance, I'll need to know the length of the metal channel as well as the stamp from the metal.

Your pivot shoe reminds me of our 15-188 . Although, to confirm that this is the right replacement, you will need to remove it from the window and compare the dimensions.

Alternate image for 15-188
Alternate image for 15-188

Pivot Lock Shoe, 1/2" Thick, Blue Break
Pivot Lock Shoe, 1/2" Thick, Blue Break
15-188
$3.70
