Broken pivot on double hung window

A handy person from Idaho says:
June 2, 2020

The pivot I have is not pictured in your gallery of pivots. It is L-shaped with 2 screws above the L bend. It is for the upper sash of the double hung.window. I was unable to locate a brand name or part numbers for the window on the panes or anywhere else.

Thumbnail of the uploaded file named IMG_1206.jpg
Thumbnail of the uploaded file named IMG_1207.jpg
Thumbnail of the uploaded file named IMG_1208.jpg

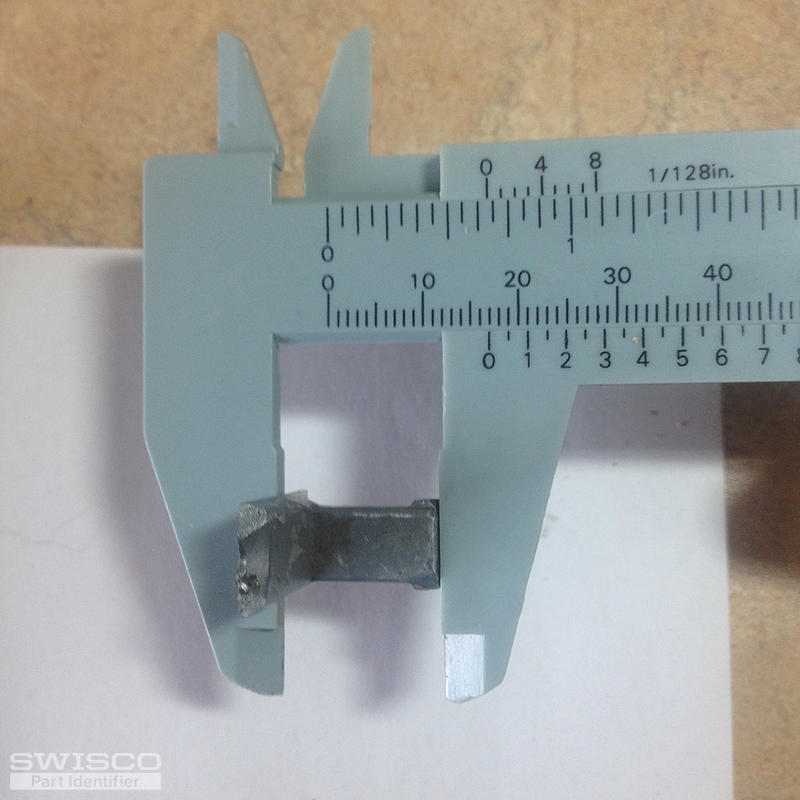

Thumbnail of the uploaded file named IMG_1210.jpg
Profile picture of Casey
Casey from SWISCO responded:
June 5, 2020

Hello,

Our closest match would be the 26-402 side-mounted pivot but you might need to drill new holes for installation. Your pivot shoe would be our 15-135 as long as the width and thickness match up to yours. Thank you!
Pivot Locking Shoe, 1/2" Thick
Pivot Locking Shoe, 1/2" Thick
15-135
$2.57
Side Mount Pivot Bar
Side Mount Pivot Bar
26-402
$1.38
