Broken plastic piece on channel balance and broken plastic piece on sash

Search
Start a new Discussion
Handy Person from Seattle, WA
Mar 10, 2021 5:47 pm

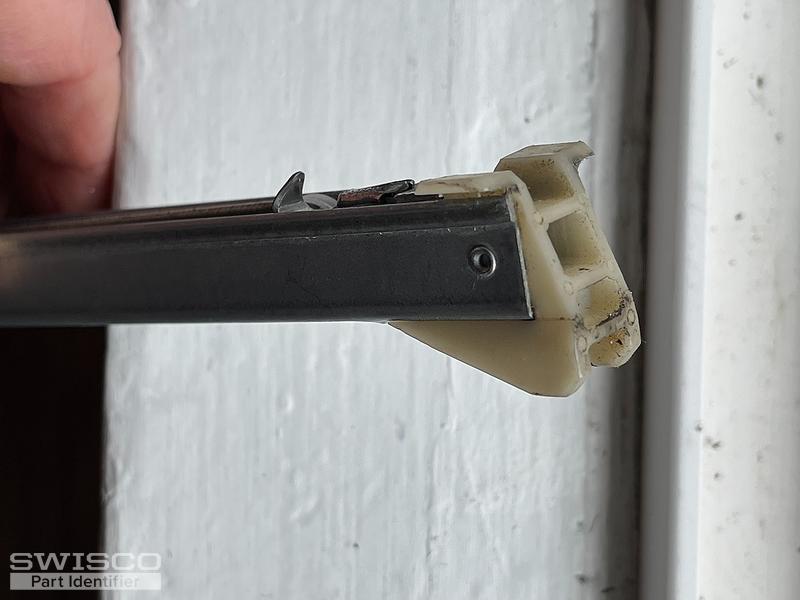

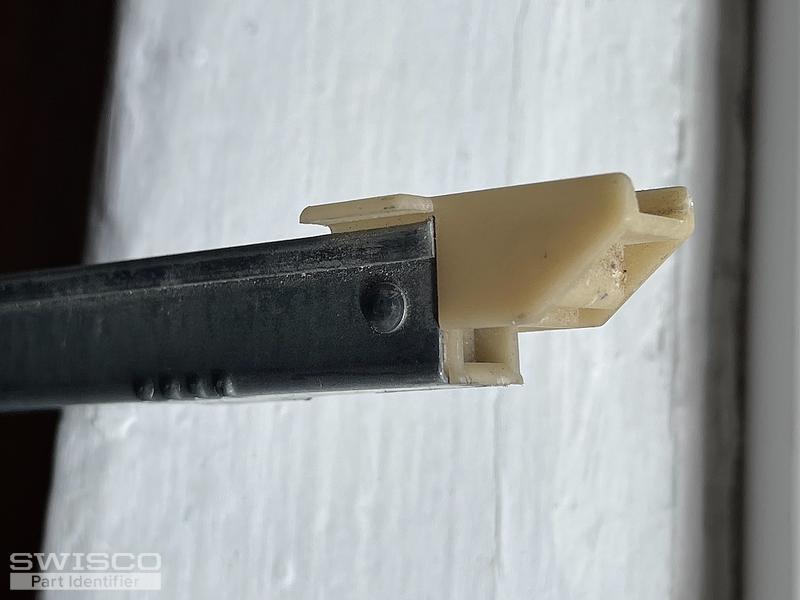

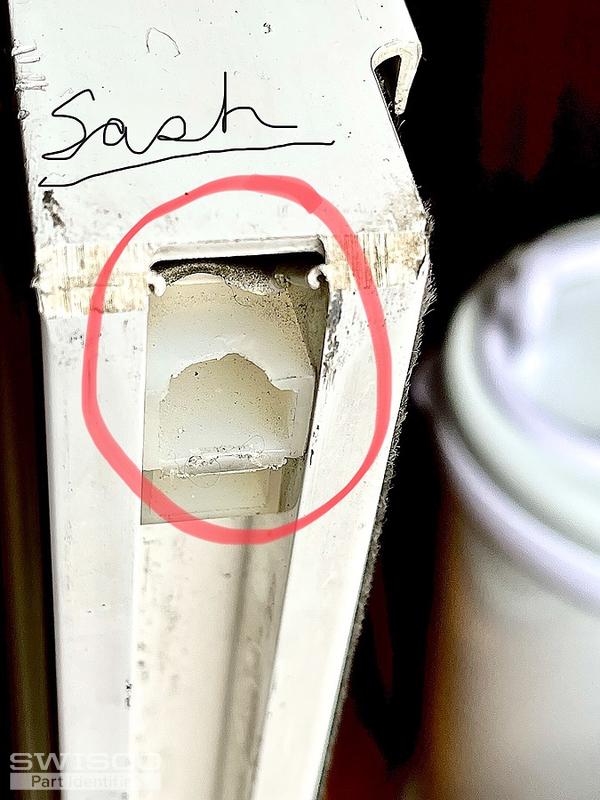

I just spoke to you on the phone regarding a Milkgard window with a broken plastic piece on the channel balance and a broken plastic piece on sash. Photos are attached.

Length of the metal part of the channel balance is 33". It is 1/2 width. No marking codes on balance. Weight of window: @35.5#. Sash is 35" high, @39.75" wide. More photos available if needed

Milgard non-tilt, vinyl window @ 15-20 years old. Do you suggest replacing both channel balances and both plastic pieces in the sash? Could you let me know availability and cost?

Thanks for your help, Joseph

5 user uploaded images
5 Replies
Tom
Tom from SWISCO
Mar 11, 2021 2:58 pm
SWISCO
Expert

Thanks for your photos. Based on what I see here, you have either our S380-33 or S385-33, depending on the depth of the bottom shoe. That's the only difference between them. I recommend measuring your shoe and referring to our dimensions to confirm the best match.

For the top sash guide, I actually don't think yours is made anymore. I think you might have to use our 18-009 but only after you trip the top edges off. Look over the dimensions we show for this product to confirm and let me know what you think of my proposed solution.

Handy Person from Seattle, WA
Mar 11, 2021 4:34 pm
Hi Tom. Thanks for the info. Looks like S385-33 is the one.

For the top sash guide, do you still make 18-188. That looks the closest to what I have and with no top edges. If that isn't made any more, I guess the 18-009 and I will take the top edges off.

I would want 2 of the S385-33 and 2 of the 18-188.

Are these items in stock?

Thanks, Joseph
1 user uploaded image
Handy Person from Seattle, WA
Mar 11, 2021 4:51 pm
I forgot to ask your advice re weight. The sash weighs 35.5#. Right between the 2 spring loads. Is it better to go with the higher weight spring or lower weight? How will the opening and closing work with each (I assume easier to open and harder to close with the stronger spring--in your experience do people prefer easier open or easier close?

Thanks for your advice.
Tom
Tom from SWISCO
Mar 12, 2021 9:30 am
SWISCO
Expert

We do make the 18-188, but my concern is that the dimensions don't match up. If they do, then that would definitely be your best choice. But looking at your old photo I think you have a specific part that isn't made anymore. I could be wrong, of course, I'm kind of just going with my gut on this one, but definitely review the dimensions we show for each product to be 100% sure. If they differ in any way, let me know and I can find something better for you.

If your sash weight is 35.5 pounds then I'd go with the 3265 option. If your sash were exactly 35 pounds on the dot then you could theoretically use both options, but since it's a little over we're safe to go with the 3265. You definitely don't want to use a stronger spring than what your sash weight is, though, otherwise your window will be difficult to close and could even drift up on its own volition.
