Broken rail supports1/2 rail 29 3 EQ CALDWELL

Home Owner from Cocoa Beach Area Florida

Mar 3, 2019 12:33 pm

I need to order these rails in the near future---installed in East Coast Florida block home in 1997--window size if aprox 53 x 33---Thanks

3 user uploaded images

6 Replies

Bob from SWISCO

Mar 4, 2019 9:01 am

Thanks for posting. I think we can help you replace these channel balances; but I am going to need to see one removed from the window, with pictures of any end attachment(s). The length of the metal channel, not including those end attachments, would also be most helpful. Many thanks.

Home Owner from Cocoa Beach Area Florida

Mar 11, 2019 1:06 pm

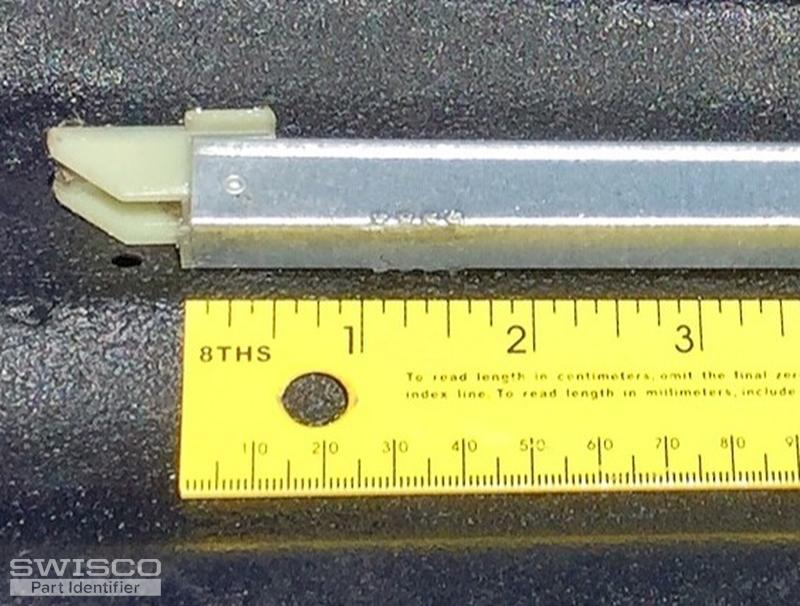

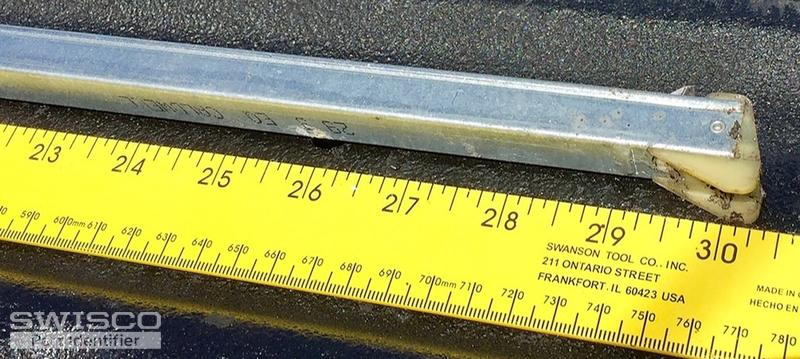

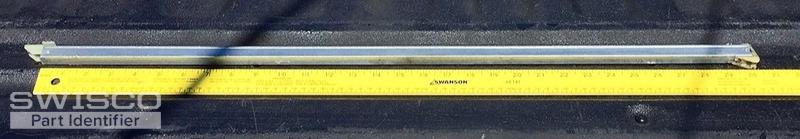

Bob--New photos for your file to order replacement parts--Thanks

3 user uploaded images

Bob from SWISCO

Mar 12, 2019 8:07 am

Thanks for the added photos. See our S395-30. Based on your stamp code of 29 3 you will need to pick a stamp option of 2930, which is for a window sash in the weight range of 16 through 23 lbs. Let us know if you have any other questions.

Bob from SWISCO

Mar 12, 2019 11:14 am

Hey Greg, glad to hear it! Let us know if any questions come up once you receive your order.

Home Owner from Channel replacement

Mar 12, 2019 11:59 am

Thanks for your help, Bob...I will order the suggested parts today...Look forward to fixing our window...I will probably replace all window channels - Thank You for finding the correct replacement part...Greg
