Broken sash lock and keeper.

Home Owner from USA

Mar 13, 2017 8:10 am

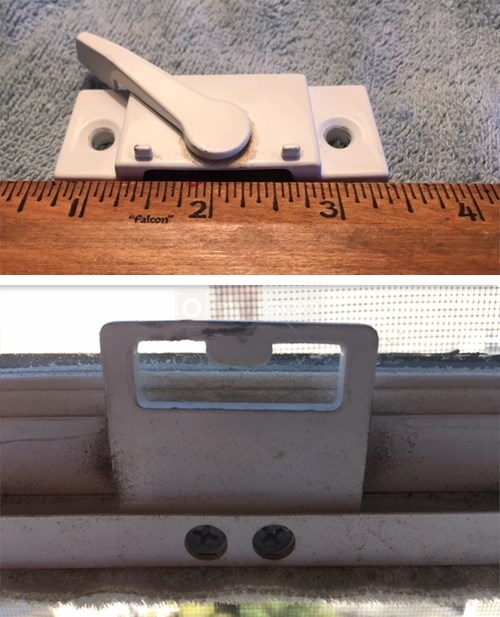

I have a broken lock and keeper that I need to replace, please see attached photos. My home is circa 2002, built by NV Homes.

The keeper appears similar to your 90-257.

Can you please recommend a replacement lock and keeper?

4 Replies

Tom from SWISCO

Mar 20, 2017 2:44 pm

I agree, the 90-257 looks close. I'm not sure about the lock, though. Can you confirm the exact distance between the two installation holes, center-to-center? It's tough to make out in your photo.

Home Owner from Lorton, VA

Mar 22, 2017 9:19 am

Thanks for your response, Tom.

I measured center-to-center on both the lock and the keeper.

Lock = ~2-1/16"
Keeper = ~7/16"

Albert B

Tom from SWISCO

Mar 28, 2017 10:14 am

Thanks! How about the 90-278? This has the same hole spacing, and they're offset 11/16", which I suspect may match yours.
