Broken slide shoe

Home Owner from Fairbanks Alaska

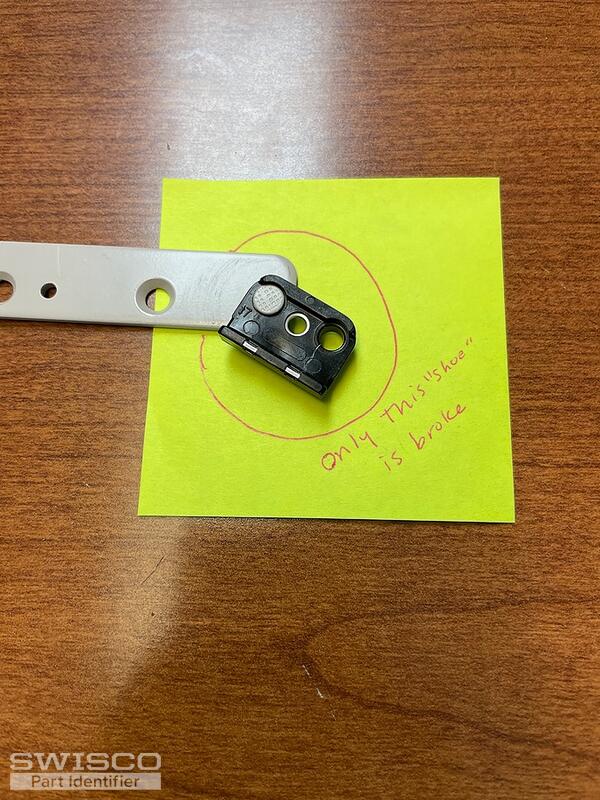

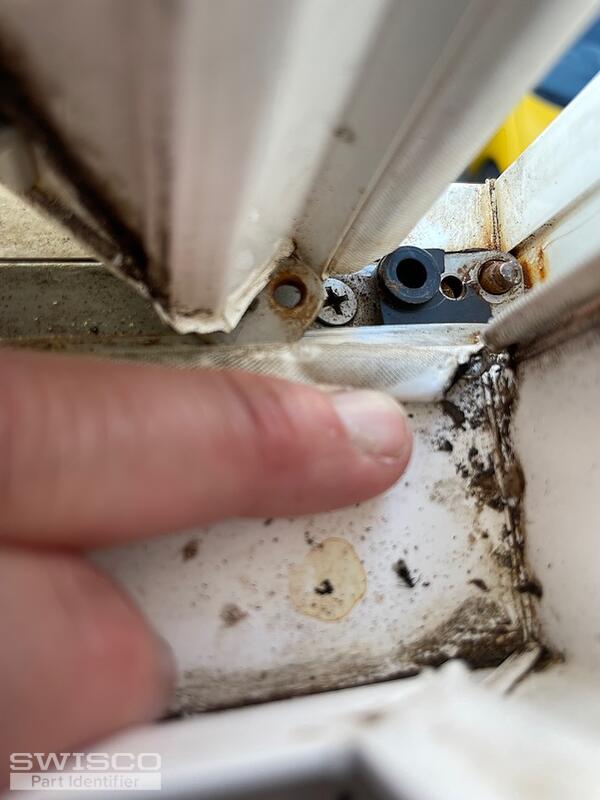

Hello. I have 2 right swinging casement windows from Alpine Windows tat have a broken piece. What is actually broken is the black slide she. The window still operates and opens; it just doesn't bring that piece a long with it. From what I can tell, I can't just replace the shoe and will need to replace the whole hinge.

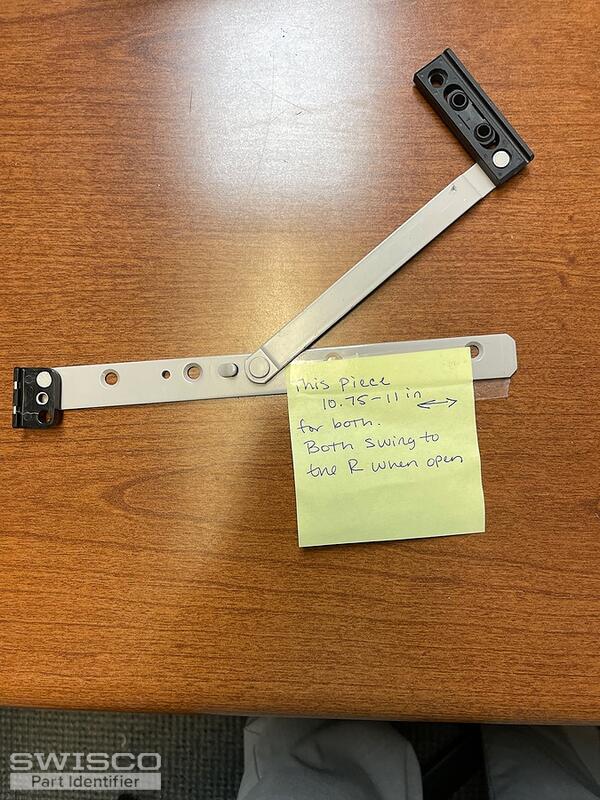

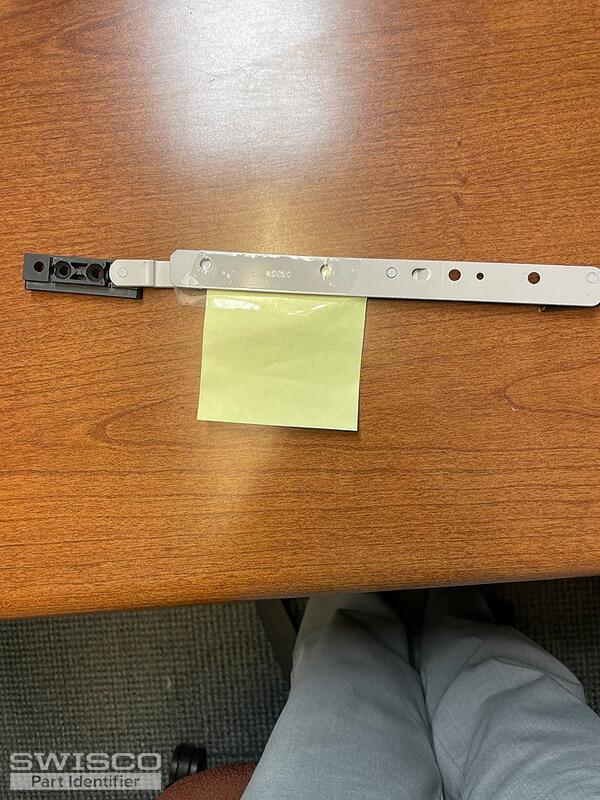

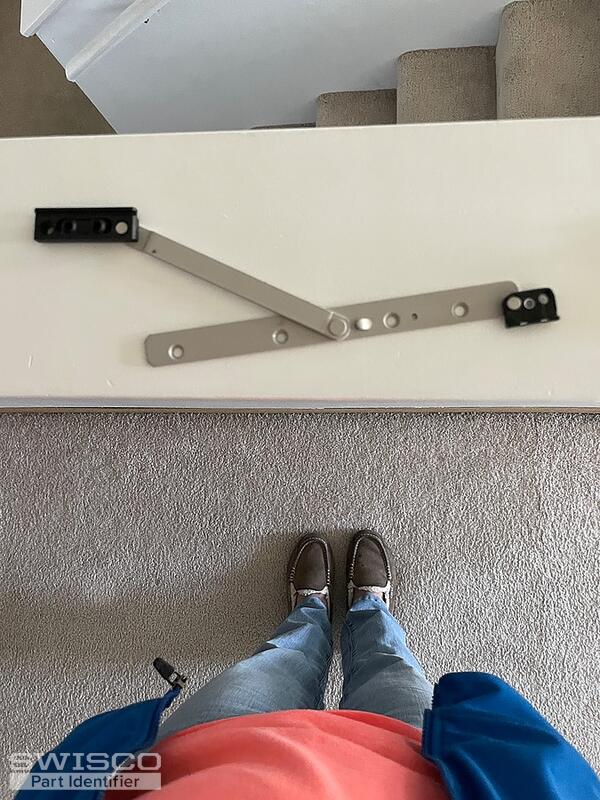

What I have in my pic is one that goes on my other windows; but is a left open v right open. The bar that mounts to the underside of the sash has "40620" imprinted and the other arm is marked 31272. These are Alpine window produced around the early 2000s.

From what I can gather; an equivalent replacement piece would be your product code: 36-048 But yours is missing that larger black slide shoe. So maybe there is a better replacement hinge?
Any help is greatly appreciated! Thank you!
5 user uploaded images
2 Replies
Casey
Casey from SWISCO
SWISCO
Expert

Hello,

Unfortunately, I am not familiar with the exact hinge assembly shown in your photos. With that being said, I agree that the 36-048 would be our best replacement option. This may work for you as long as you replace the top and bottom hinges at the same time. If you decide to give it a try and run into any issues, our return policy can be found here. Take a look and see what you think. Thank you!

Detail of 36-048
Detail of 36-048

Additional dimensions for 36-048
Additional dimensions for 36-048
