Broken sliding door handle

Quick Learner from New Hope, PA 18938

Aug 15, 2023 3:42 pm

The
Manufacturer is PPG Herculte
Hole spacing 5 1/2 inches
Entire handle is 8 1/2 inches
Door is 2 inches thick
I would be interested in just a handle if available. Thank you

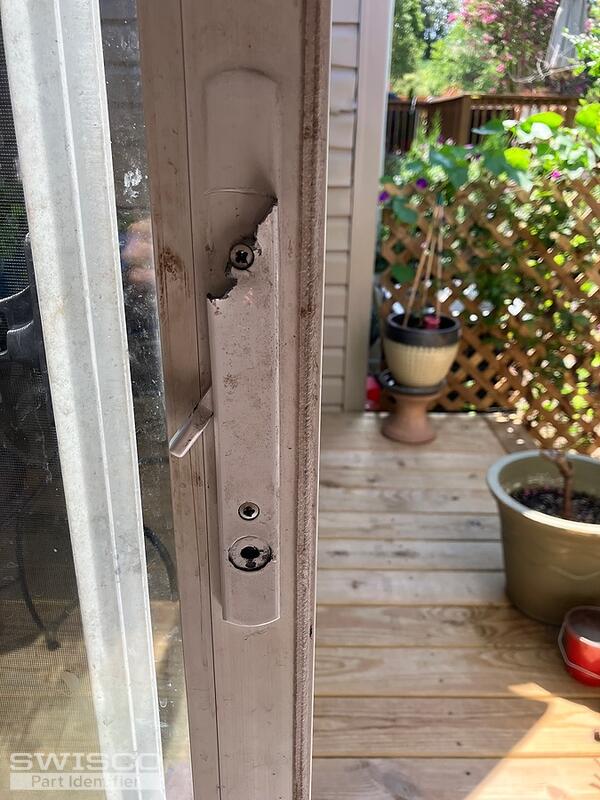

2 user uploaded images

6 Replies

Emily from SWISCO

Aug 17, 2023 10:12 am

Thanks for reaching out to us. I believe we should be able to help with this but your handle is too damaged to identify. Can you write out the distance between the two installation holes in the door, measured from center to center? It'd also be helpful if we could see a photo of the mortise lock.

Quick Learner from New Hope,PA 18938

Aug 18, 2023 2:22 pm

Hole spacing 5 1/2 inches
Entire handle 8 1/2 inches

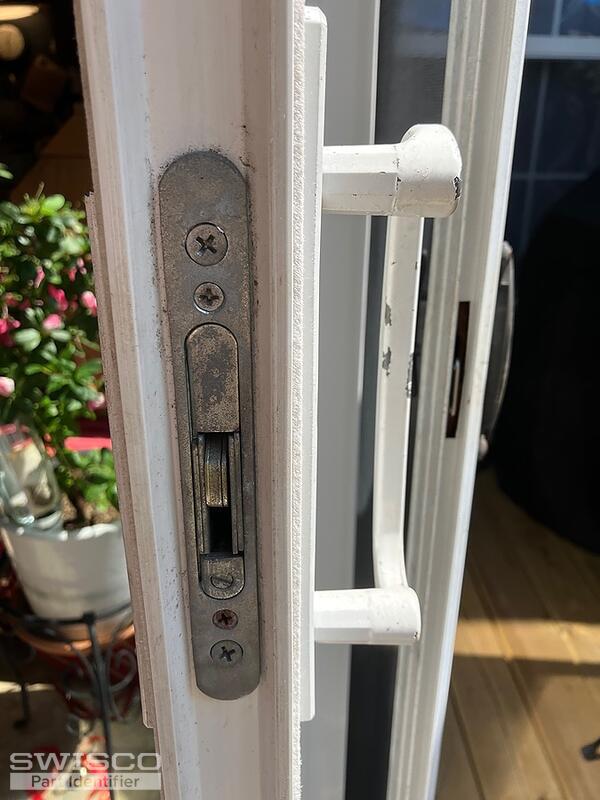

3 user uploaded images

Emily from SWISCO

Aug 21, 2023 8:49 am

I'm afraid we don't sell a handle with 5-1/2" hole center spacing. Your mortise lock appears to be a match for the 82-226 which is commonly used with handles that measure 3-15/16" on the installation hole centers. I've outlined the installation holes on your handle below just in case. If they measure 3-15/16" on center then the 82-030 is what I would recommend.

Quick Learner from New Hope, PA 18938

Aug 22, 2023 8:59 pm

Thank you so much. Your illustration of where to measure was extremely helpful! I have ordered the handle you recommended!
You are awesome!
Trudell

Emily from SWISCO

Aug 23, 2023 8:02 am

No problem, I'm happy I could help! Please let me know if I can be of further assistance and good luck with your repair!
