Broken spiral balances

A quick learner from Nashville TN says:

May 2, 2023

Spiral balances in my windows are in rather bad shape from a lack of proper maintenance over the years and one of them snapped. After watching a few of your videos, I am certain I can replace the balances. Could you help me make sure I order the correct ones?

They are in a plastic tube that changes the length and I am not sure which measurement to order.

Tip - red
The length of the plastic tube is 33 7/8
The length of the metal coil inside is 33 3/8
The diameter of the tube is 9/16 so I guess 5/8 should be good based on your video

Could you also help me select the tool to assist with installation and removal?

Kind Regards,

Mgada

Thumbnail of the uploaded file named IMG_2026.jpg

Thumbnail of the uploaded file named IMG_2028.jpg

Thumbnail of the uploaded file named IMG_2029.jpg

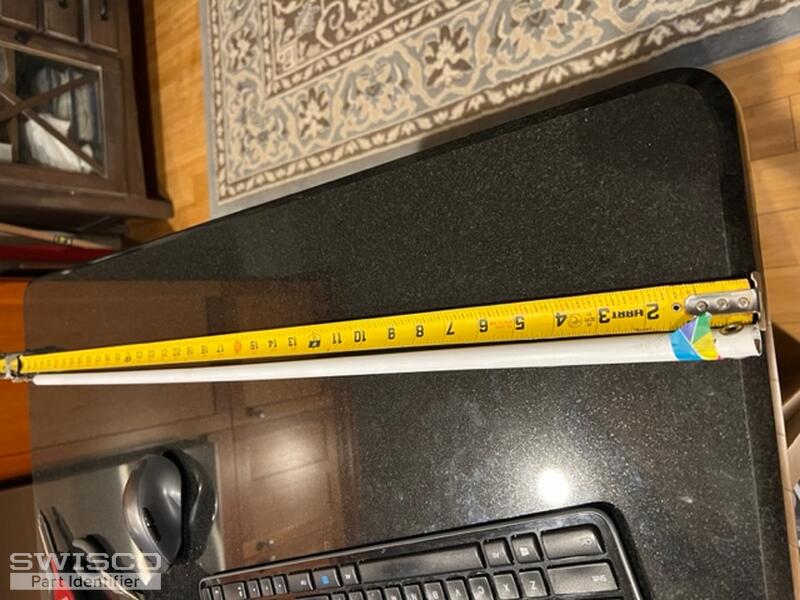

Thumbnail of the uploaded file named IMG_2027.jpg

Casey from SWISCO responded:

May 3, 2023

Hello,

Based on the photos and information you've provided, take a look at the S600-34 spiral balance for tilt windows. You will also need a red-tip strength option. As for a charging tool, see the 75-006 for tilt windows. Take a look at the specifications on our product pages and the videos related on this page for more information. Thank you!

Spiral Balance Charging Tool for Tilt Windows

75-006

$9.97

34" Series 600 Spiral Tilt Window Balance

S600-34

$10.20

How to Identify a Replacement Spiral Balance

VIDEO

WATCH >

How to replace a tilt window spiral balance.

VIDEO

WATCH >

How to adjust a spiral balance on a tilt window

GUIDE

READ >

How to choose the proper spiral balance tip color

GUIDE

READ >
