Contractor from Buffalo NY

Jul 30, 2024 4:56 pm

No brand name, latch is gone. Would like to see what options are available and what finishes are available.

Thank you,
Dan

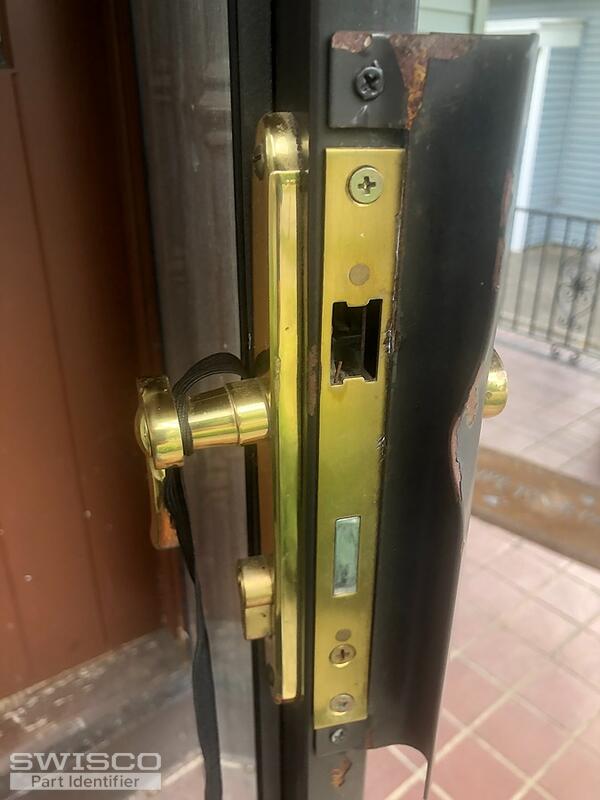

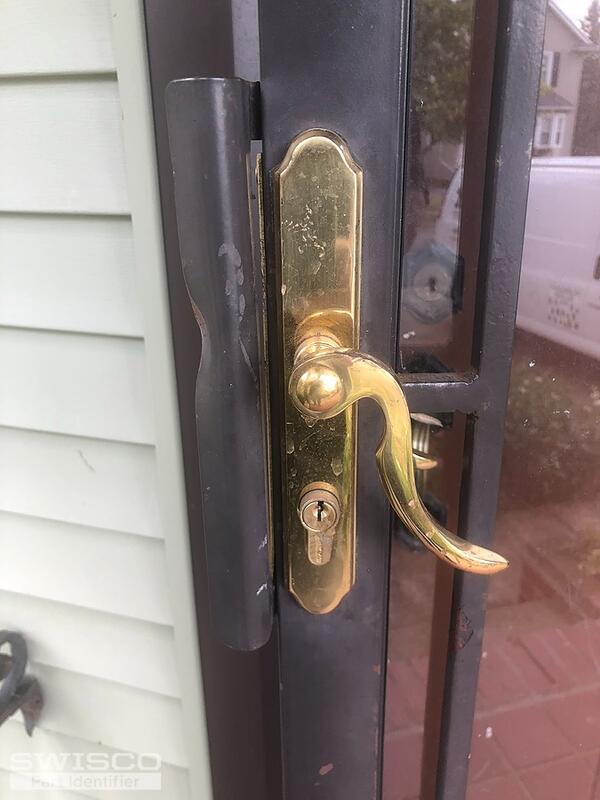

3 user uploaded images

4 Replies

Emily from SWISCO

Aug 1, 2024 11:48 am

Hi there Dan.

Thanks for reaching out to us. We don't sell this exact handle set. The 40-049 appears to be our best option though. Take a look at the specifications and see if you think this could work for you.

We also have other finishes such as the 40-183 and 40-097.

alternate view of 40-049

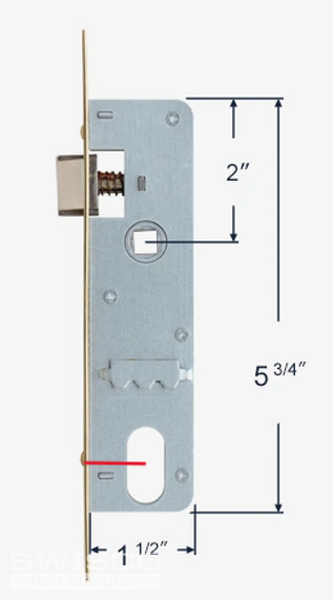

Dimensions for 40-049

Contractor from Buffalo NY

Aug 2, 2024 10:32 am

What is the backset? Edge of door to center of cylinder

Thank you,

Dan

Emily from SWISCO

Aug 5, 2024 9:05 am

Hi Dan,

The measurement as shown below is 7/8". Please let us know if you have any additional questions!
