Broken tabs for lower roller attachment on a Millard screen

Quick Learner from Lake Arrowhead CA
I h av T screen doors that have the mounting tab broken off

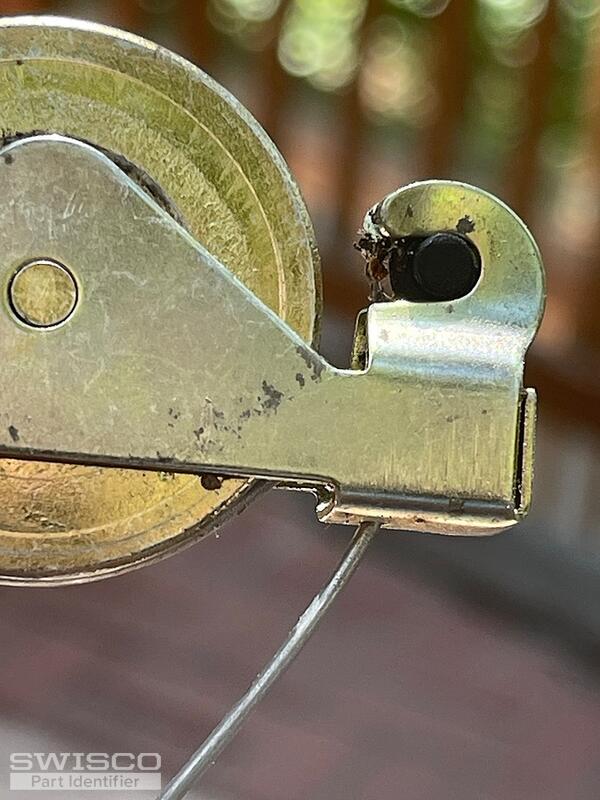

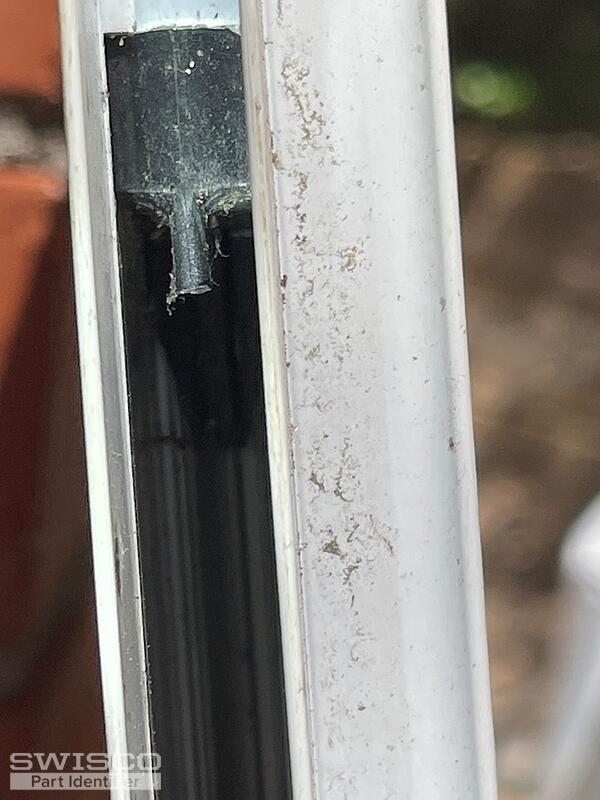

One door has 1 1/4 roller the other 1 3/8 do you have corners for Milgard doors? One picture shows the broken tab, the other shows the roller with the broken piece .
2 user uploaded images
2 Replies
Casey
Casey from SWISCO
SWISCO
Expert

Hello,

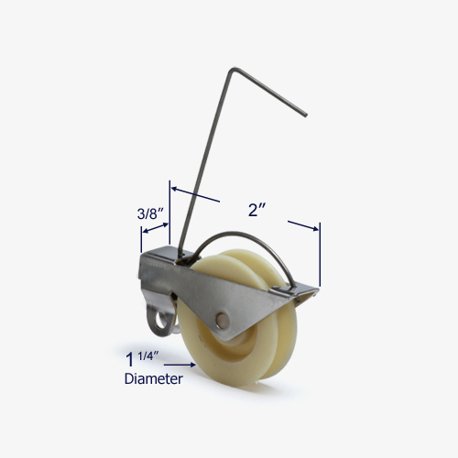

Unfortunately, we do not carry a Milgard-specific screen corner but it looks like your roller is a similar style to the 84-101 or 84-104 shown below. Both options are often used with the 95-020 Acorn corner. I would recommend removing your corner from the door to compare to the specifications below. Unfortunately, we do not carry any screen door rollers with 1-3/8" diameter wheels.

Alternate image for 84-101
Alternate image for 84-101

Alternate image for 84-104
Alternate image for 84-104

Dimensions for 95-020
Dimensions for 95-020

Alternate view of 95-020
Alternate view of 95-020
