Broken upper holding clips

A quick learner from China Grove, NC says:
Request replacement parts or the entire replacement for two #5.737.877 25 inch and one 31 inch balances.

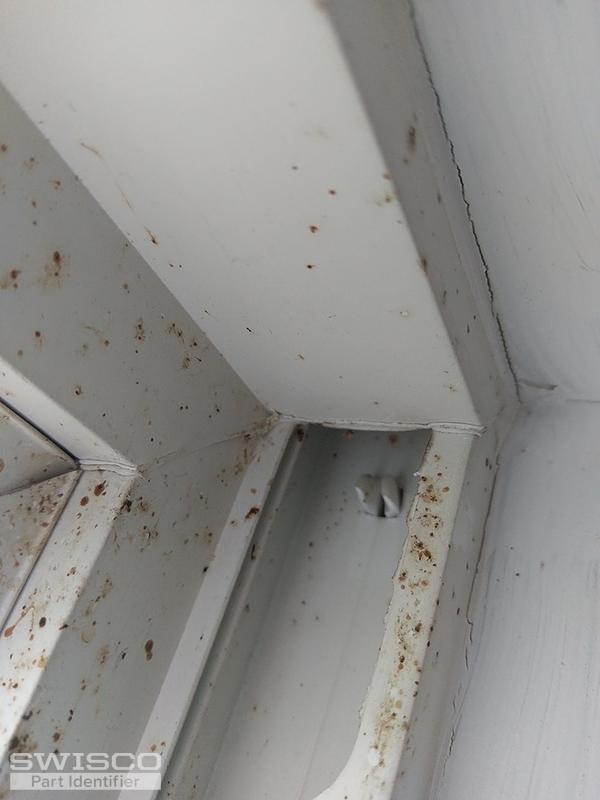

Image 3267 is the broken upper hook.
Image 3250 is the 31 inch 5.737.877 balance (the two 25 inch are the same but shorter)
Image 3246 is the shoe end
Image 3245 is the upper attachment.
Thumbnail of the uploaded file named IMAG3245.jpg
Thumbnail of the uploaded file named IMAG3246.jpg
Thumbnail of the uploaded file named IMAG3250.jpg
Thumbnail of the uploaded file named IMAG3267.jpg
A quick learner from China Grove, NC says:
my T-shaped shoes are 1 1/4 inches so I will need a 15-195.
Rounding down I need two 24 inch balances and one 30 inch. I am working on the weight of the sashes. Will let you know soonest.
Profile picture of Tom
Tom from SWISCO responded:

Looks like you have an old rod type balance. It also looks like you have it pretty much figured out. I'll post our usual video here just in case you need some guidance. This will walk you through everything you need.

A quick learner from China Grove, NC says:
Okay, I think I have everything now.
Need two replacement 795 channel balances T-lock for out-dated #5.737.877
sash weight 18.2 lbs.
length 24 inches.
shoe width 1 1/4 inches = 15-196
Need one 795 channel balance for out-dated #5.737.877
sash weight 26.4 lbs.
length 30 inches
shoe width 1 1/4 inches
A quick learner from China Grove, NC says:
Oh, and I'll need three screw plugs 26-200
Profile picture of Tom
Tom from SWISCO responded:

Great! Glad you got everything you needed together. All orders can be placed directly on our site at your convenience.

Thanks for reaching out to us and please let me know if you had any other questions.

A quick learner from China Grove, NC says:
I received the 795 T-lock channel balances. I forgot to order the pivot bars and I'm a bit confused about getting the right one. The video shows that I need a 26-366 or a 26-021.
Attached are some photos.
The hole displacement from the tip to the hole is a little better than an inch and a half or 1 5/8 inches
Profile picture of Tom
Tom from SWISCO responded:

Your pivot bar looks like it has the same base style as the 26-366, so that would b e the one you want.

Just note that your old pivot bar appears to have a slightly longer "peg" than what one usually sees on this window. As such, you may need to drill new holes to make up for the difference in length, since the 26-366 will likely be shorter. I would try it as-is first, since it might work fine anyway, I just wanted to give you a heads up.
