Broken window attachment k&k window hardware

A home owner from Arcadia, Oklahoma says:
October 17, 2021

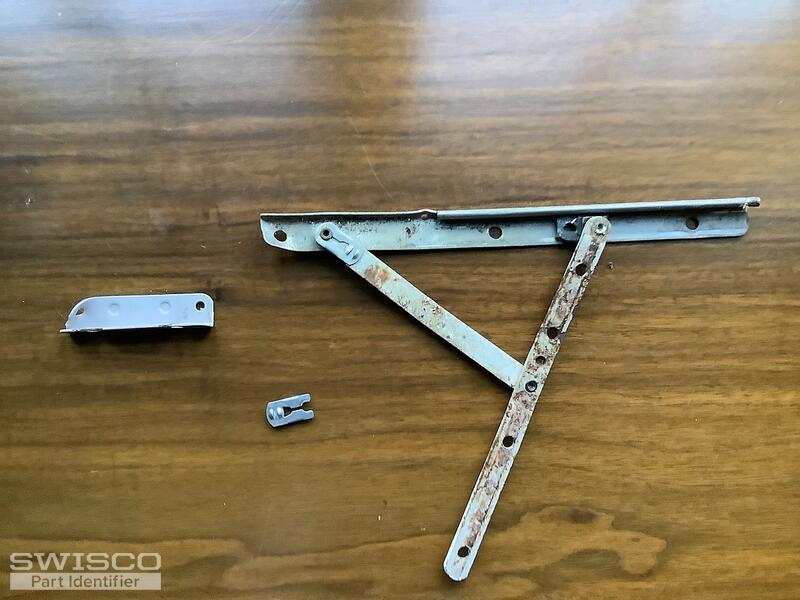

I have a window just like this one that has fallen off the mechanism at the bottom and bent the attachment to the crank. The cranking mechanism appears ok but the hardware that actually attaches to the window is pretty much trashed - any ideas on replacements parts for this ?
Thumbnail of the uploaded file named 59BF3AA3-36F1-4C71-9791-680E79F5C482.jpeg
Thumbnail of the uploaded file named 3843BF4B-DF78-4944-8C61-A8D23BE09996.jpeg
Thumbnail of the uploaded file named 131EA69F-EC54-4379-969D-96D5E6AC9B71.jpeg
Thumbnail of the uploaded file named 32FE3484-397E-4F09-903F-F07CC411BE6F.jpeg
A home owner from Arcadia, Oklahoma says:
October 17, 2021
D904 appears to be on one of the arms - it's rusty but it looks like only 4 characters
Profile picture of Lauren
Lauren from SWISCO responded:
October 21, 2021

Hello, thank you for posting!

Your hinge resembles our 36-048 hinge set, please review the dimensions on the product page to confirm a good match. For the bracket, please review our 39-516 or 39-517 depending on the orientation. I have also related the 39-105 detach clip incase needed. Please let me know if you have any questions.
Clip-Stud Bracket, Left Handed
Clip-Stud Bracket, Left Handed
39-516
$3.70
Clip-Stud Bracket, Right Handed
Clip-Stud Bracket, Right Handed
39-517
$3.70
2-Bar Hinge Set, 10"
2-Bar Hinge Set, 10"
36-048
$17.47
Stainless Steel Detach Clip
Stainless Steel Detach Clip
39-105
$0.84
Connecting a casement window operator to stud bracket
Connecting a casement window operator to stud bracket
VIDEO
WATCH >
How to Replace a 2-Bar Hinge Set on a Casement Window
How to Replace a 2-Bar Hinge Set on a Casement Window
VIDEO
WATCH >
