Window is 24"height x 29"wide, weighs 14lbs
1 1/4" thick double pane vinyl window.
A great many of these have failed, do you have anything to replace them?
Broken window balance
Quick Learner from Rossmoor, Monroe Twp, NJ
Apr 4, 2023 2:43 pm
5 user uploaded images
4 Replies
Casey from SWISCO
Apr 5, 2023 9:33 am
Hello,

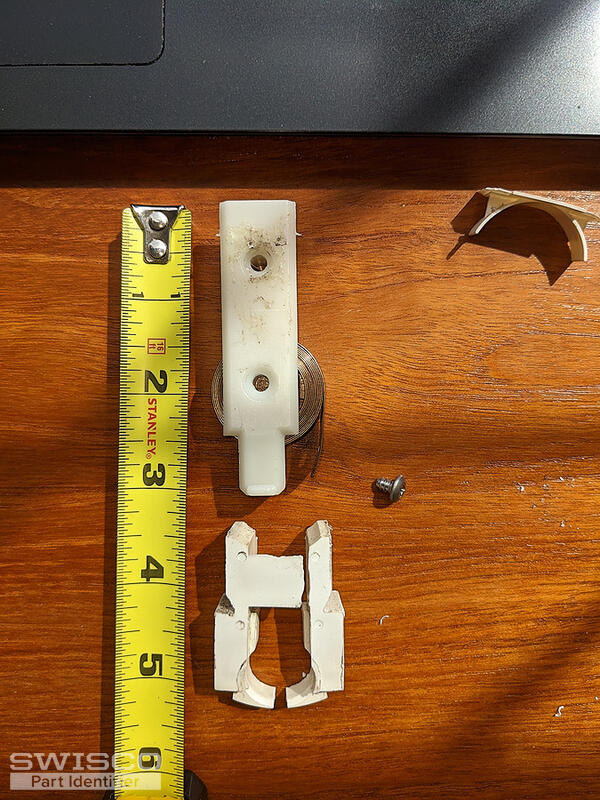

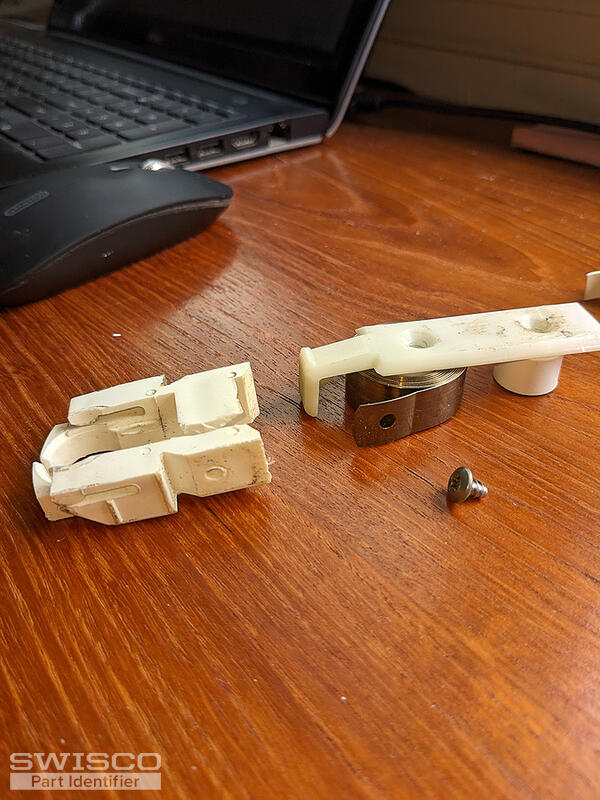

Your pivot shoe resembles our 15-180, which is designed to work with the Series 190 coil springs. Your original coils should have stamp codes on them that you'll use to choose the corresponding strength option. For a 14-pound sash, I would generally recommend using one S190-740 coil on each side.
Review the specifications shown on our product pages to confirm they match up to yours. We've also related a few videos on this page to help you through the process. Thanks for posting!
Quick Learner from Rossmoor, Monroe Twp, NJ
Apr 8, 2023 1:02 pm
Excellent. The recommended coil balance shoes arrived very quickly and fit perfectly.
Casey from SWISCO
Apr 10, 2023 8:22 am
That's great to hear! We appreciate your business and please let us know if there is anything else that we can do to assist you.
