Quick Learner from Santa Clara

Dec 20, 2023 4:32 pm

Mine is a vertical push up window. On the fallen balance it writes 29-6 KX CMC 7 which i am not quite sure if that's helpful. And my window brand is Milgard

3 user uploaded images

6 Replies

Jasmine from SWISCO

Dec 21, 2023 11:25 am

Thanks for reaching out! I am confident that we can supply you with the replacement balances needed for your window. However, there are a few details you'll need to confirm to properly identify the right replacement.

To start, I'll need to see a photo of the top attachment of your balance. You'll also need to confirm the measurement for the depth of the bottom shoe.

Quick Learner from Santa Clara

Dec 22, 2023 12:37 pm

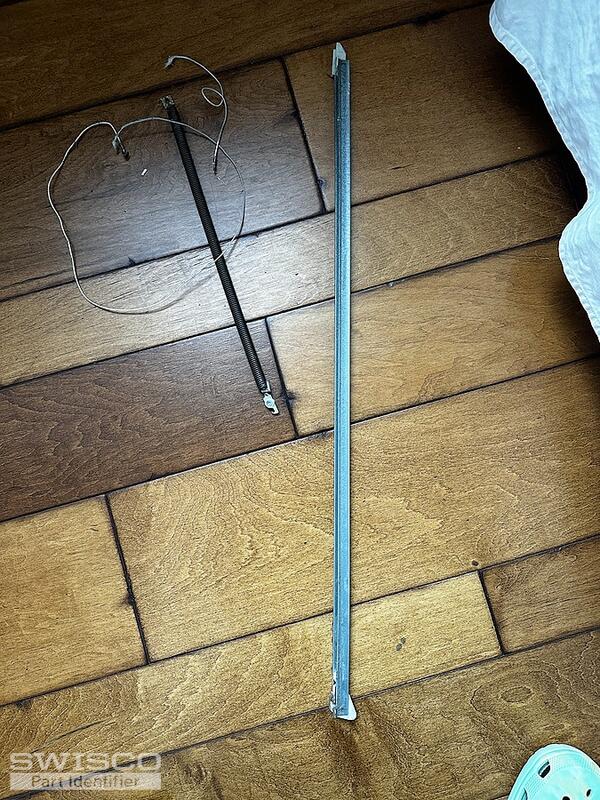

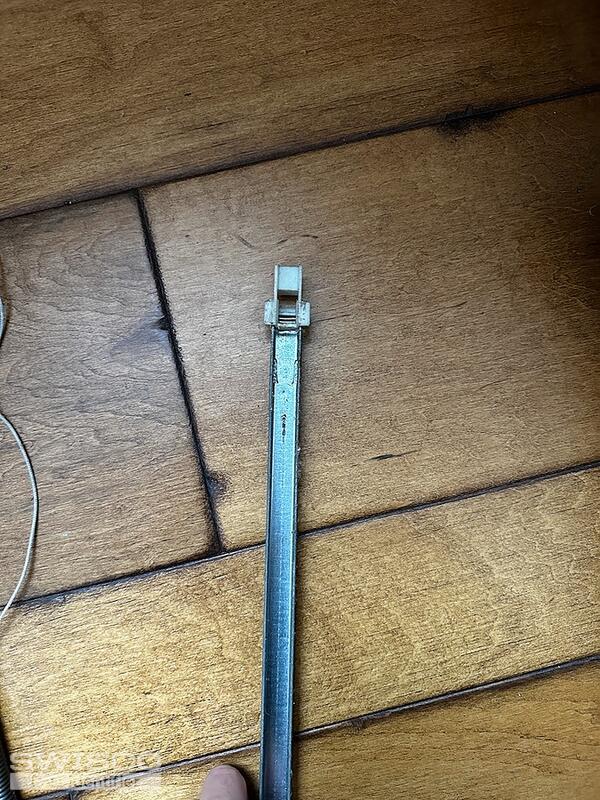

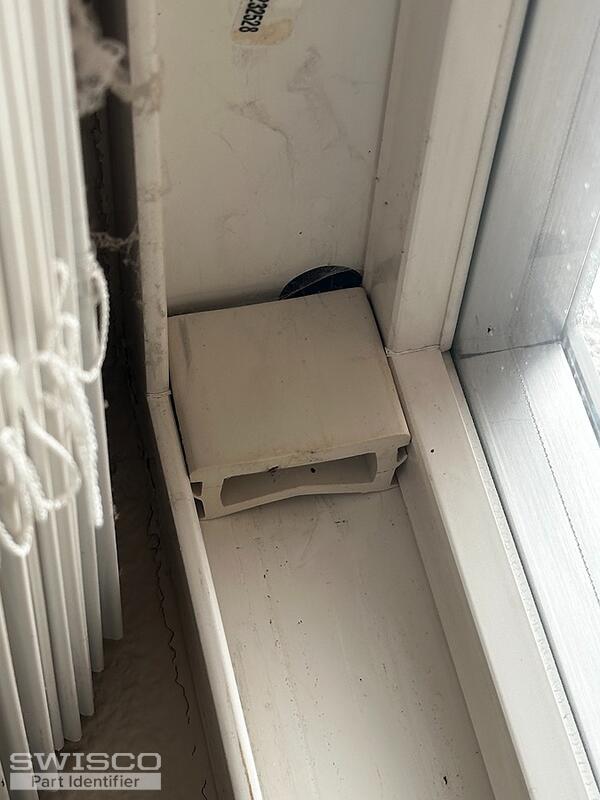

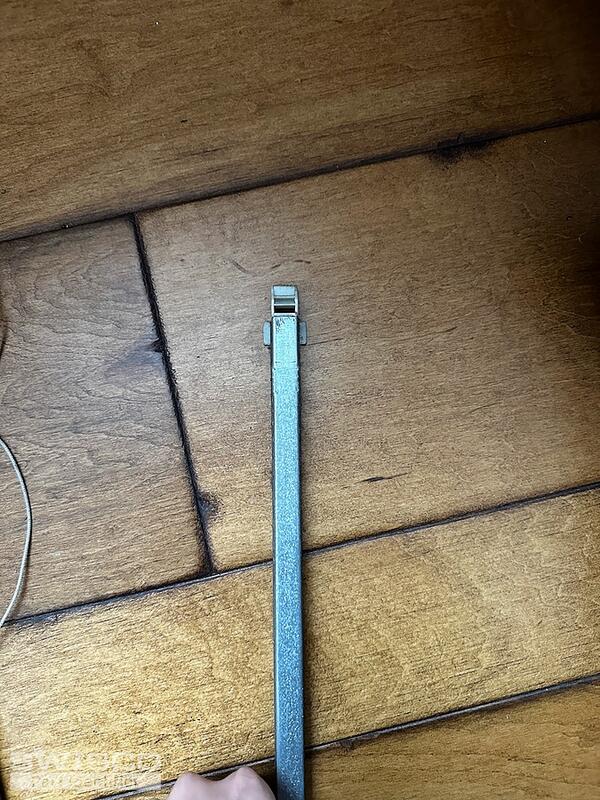

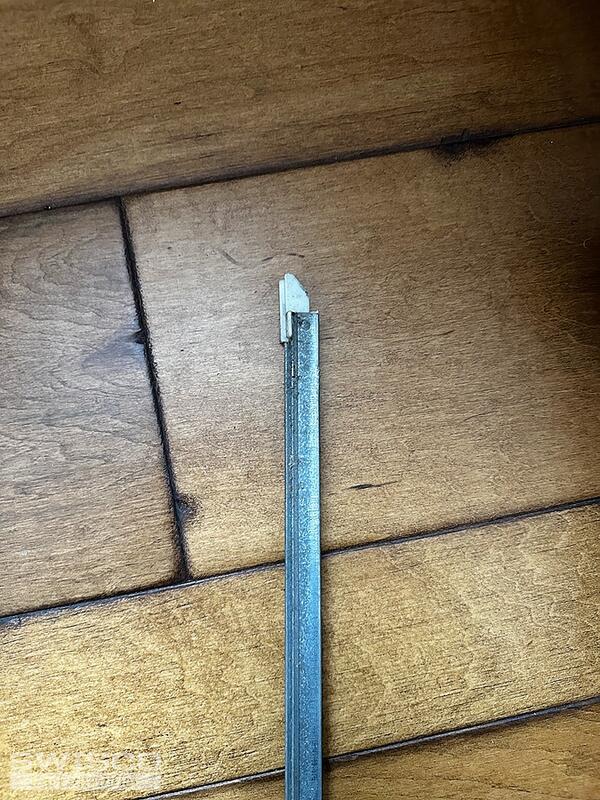

Thank you! I've attatched the following photo, but the spring falls out during the balance take out. Also, are you refering to the shoe on the top? Because I only seem to have that. If that's what you are refering to, its depth is around 1.65 inch

5 user uploaded images

Jasmine from SWISCO

Dec 26, 2023 9:46 am

Thank you for the additional pictures,

What we need is the depth of the bottom show attachment on the metal channel.

With this combination of attachments, you could have either an S380 or S385 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment.

The length of the metal channel excluding the nylon attachments should measure 30" and you will need a 2960 stamp option. Please review and let me know if you have any additional questions.

Comparison of the S378, S380 and S385 balance shoes.

Quick Learner from Santa Clara

Dec 26, 2023 1:36 pm

Thanks, the measured depth is 1", does that mean I should go for the S380-30 balance attatched above?

Jasmine from SWISCO

Dec 26, 2023 1:53 pm

Hello,

Yes, with a 1" shoe depth, please review the S380-30 channel balance with a 2960 stamp option. Let me know if you have any additional questions!
