Broken window coil spring

A quick learner from Philadelphia PA says:

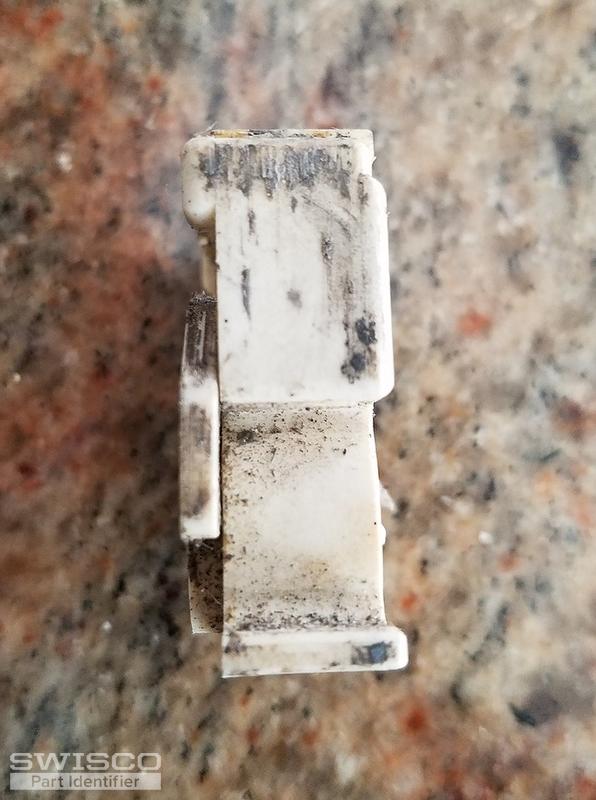

Can you help me identify what replacement part I need to repair a broken window coil spring.
Thumbnail of the uploaded file named 15830761818923259981652434194497.jpg
Thumbnail of the uploaded file named 15830762184208478668344103491743.jpg
Thumbnail of the uploaded file named 15830762584113547471492848170996.jpg
Thumbnail of the uploaded file named 15830762767885400280675297851098.jpg
Thumbnail of the uploaded file named 15830762993512468763347147319880.jpg
A quick learner from Philadelphia PA says:

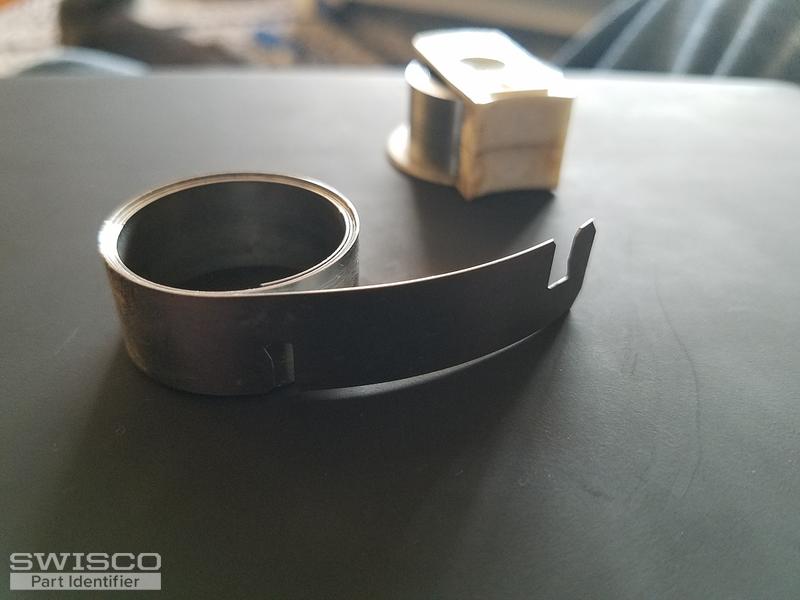

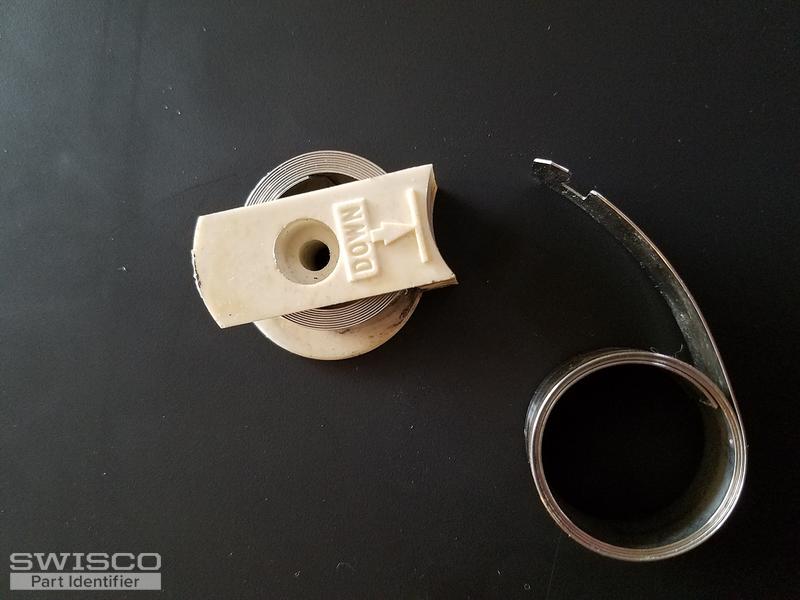

I just wanted to add pics of the coil as well. I did find a number 5 stamped on the coil.
Thumbnail of the uploaded file named 15830999385134565463261174337922.jpg
Thumbnail of the uploaded file named 15830999752965994285506235728386.jpg
Thumbnail of the uploaded file named 15831000154128432761994116253841.jpg
Profile picture of Tom
Tom from SWISCO responded:

Sure thing! I recommend our 15-140 pivot shoe, which is compatible with the Series 150 spring. Since yours is stamped with "5" I would go with the S150-5.

If you also need new covers, see our 15-143, 15-144, and 15-145 drum.

This hardware all looks very similar to the parts in your photos, but review our information and let me know if you agree.
