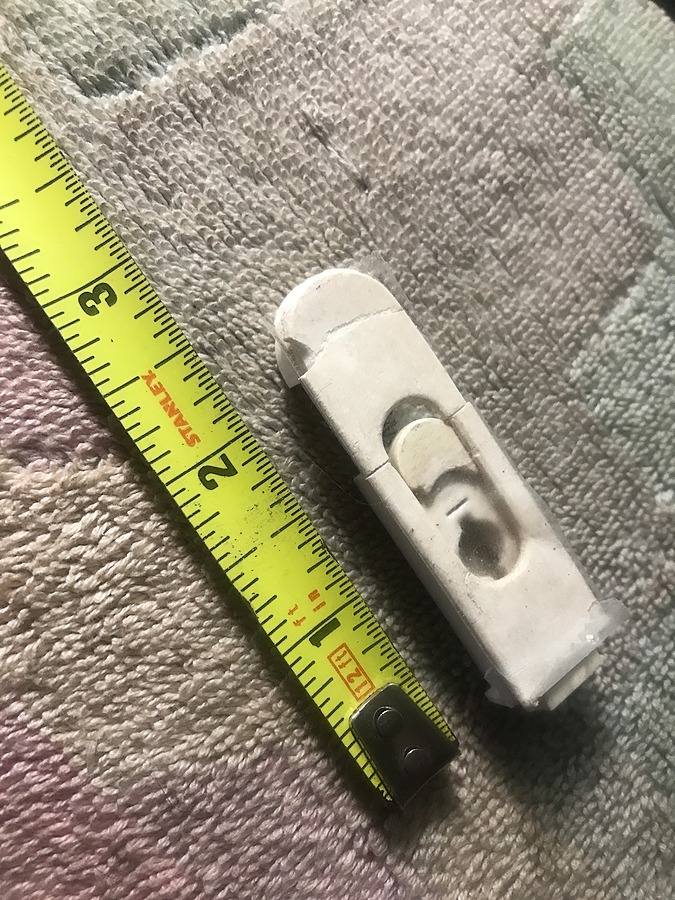

The dimensions are: 2 3/8" x 3/4" x 7/16". White. Appears these latches are installed by sliding the back rounded end into place and then pounding the front end into the grooves. This one window also does not close up to the hardware behind it as closely as the other windows, which is probably why it broke. The latches are under pressure when you try to close that window. The thin line of felt padding hits a metal edge and prevents the latches from catching to lock the window. It's that far away from where I think it should go.
Broken window latches
Handy Person from Clearwater, FL
Jun 5, 2026 7:17 pm
4 user uploaded images
2 Replies
Jasmine from SWISCO
Jun 11, 2026 11:28 am
Thanks for reaching out! Your tilt window latch reminds me of the 26-393A Tilt Latch Pair. To determine if this will work to replace your latches, carefully double check the specifications below.
It is not an exact match but I do believe it will work for the repair.
Dimensions for 26-393A
