Broken window pivot bar

Home Owner from Quincy

Oct 7, 2017 3:06 pm

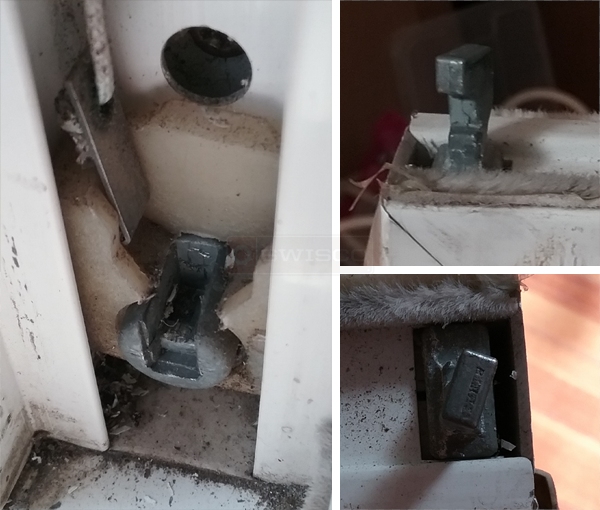

Could you please confirm which bar I need to buy in order to replace the broken one in my window pictures? Also, are there instructions as to how to change out the bar once I've ordered the correct one?

8 Replies

Paul from SWISCO

Oct 12, 2017 10:46 am

I have two options of possible replacement parts: our 26-164 and 26-416 pivot bars. For the best confirmation, we would need for you to remove yours and compare it to ours.

Quick Learner from Quincy, MA

Oct 12, 2017 4:54 pm

Are you able to provide instructions for me on how to remove and replace the pivot bars?

Paul from SWISCO

Oct 16, 2017 9:25 am

I've attached a video on the right side of the page that might help you.

Quick Learner from Reading, MA

Sep 4, 2020 4:12 pm

Hello,

I believe I have the same window and pivot bars as the ones pictured above. I am struggling to get the nylon window piece off to access the pivot bar. The video provided doesn't help too much with this specific pivot bar. Is there anymore information you could provide that helps show the process of replacing the pivot bar.

Thanks so much,
Colin

Tom from SWISCO

Sep 9, 2020 3:12 pm

I'm not sure I understand your issue. These pivot bars are typical held in with screws. I don't recall a specific nylon piece that obscures those screws. Can you go into more detail? Some photos might help, especially.

Quick Learner from Reading, MA

Sep 18, 2020 12:54 pm

Hello,

See the photos attached.
It seems as though the top frame piece of the window needs to be taken off to access the screws that hold the pivot bars in. The pivot bars cannot be removed unless the top piece is removed but I am not sure how to remove it.

Thanks,
Colin

2 user uploaded images

Paul from SWISCO

Sep 28, 2020 8:53 am

Thank you for your patience during this busy season. The vinyl piece that is covering the screws to the pivot bar is snapped on to the sash. You need a putty knife or similar tool to wedge between the vinyl cover and sash and gently force the piece off, working it off the sash. Once you get it started you will find it easy to come off. After you replace the pivot bar you can snap on the cover to the sash by starting on one end and working it across the sash.
