Broken window springs

Home Owner from 11445 Emery St, El Monte, Ca 91732

Apr 16, 2021 1:32 pm

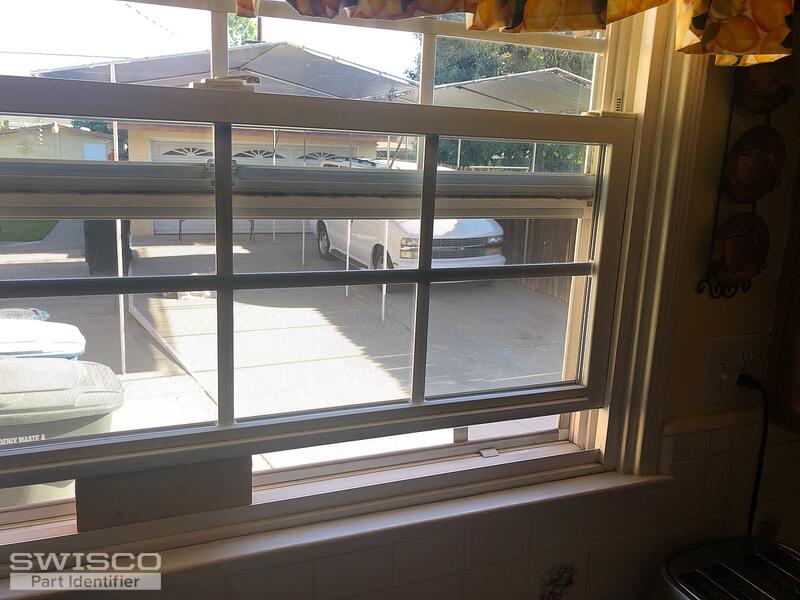

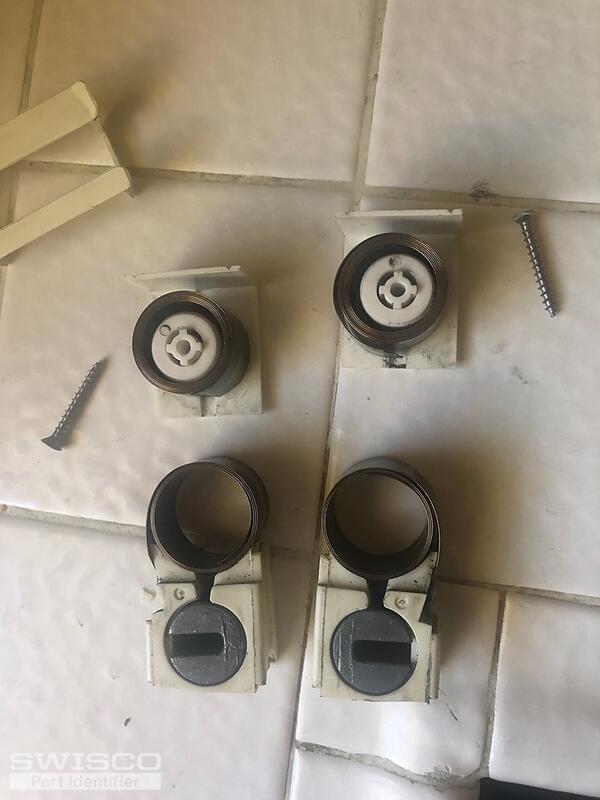

I hope you can help me with this. The springs are broken on both sides there is a marking 3010 on each spring. It looks like they come all in one unit for each side. I have 10 Certainteed windows in my house, this one I put in in 1999

3 user uploaded images

3 Replies

Home Owner from 11445 Emery St, El Monte, Ca 91732

Apr 19, 2021 11:28 am

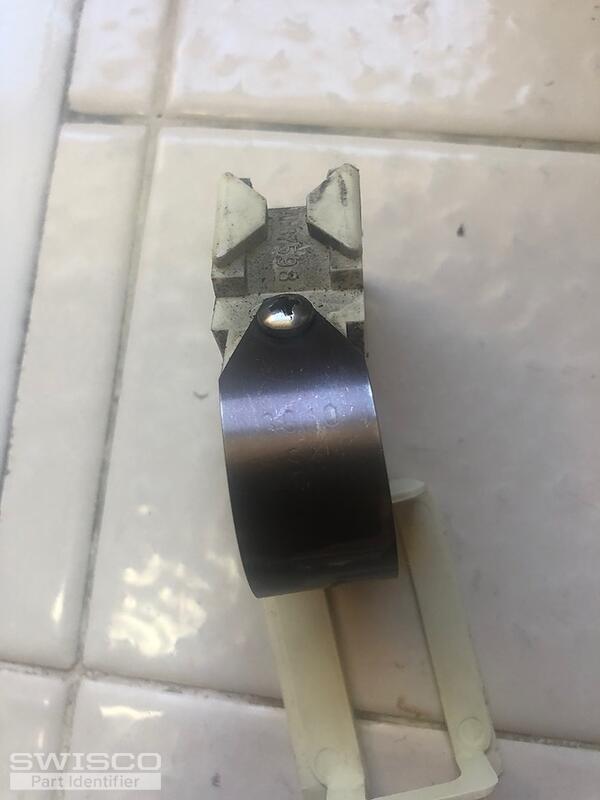

After getting the spring under a better light I see the number is 3610, The window weighs 20 pounds, so I would need a 10 pound spring on each side.

3 user uploaded images

Emily from SWISCO

Apr 22, 2021 8:31 am

Hello! It looks like you have our 15-192 pivot shoe which uses the Series 170 and Series 171 coil springs. We only carry up to 9 pound springs but you can use two 5 pound springs on each side of the window to support your 20 pound sash.
