Broken window track

Home Owner from La Habra Heights
Hi

I have been told my windows can't be fixed. I'm trying to get the parts.
5 user uploaded images
4 Replies
Paul
Paul from SWISCO
SWISCO
Expert

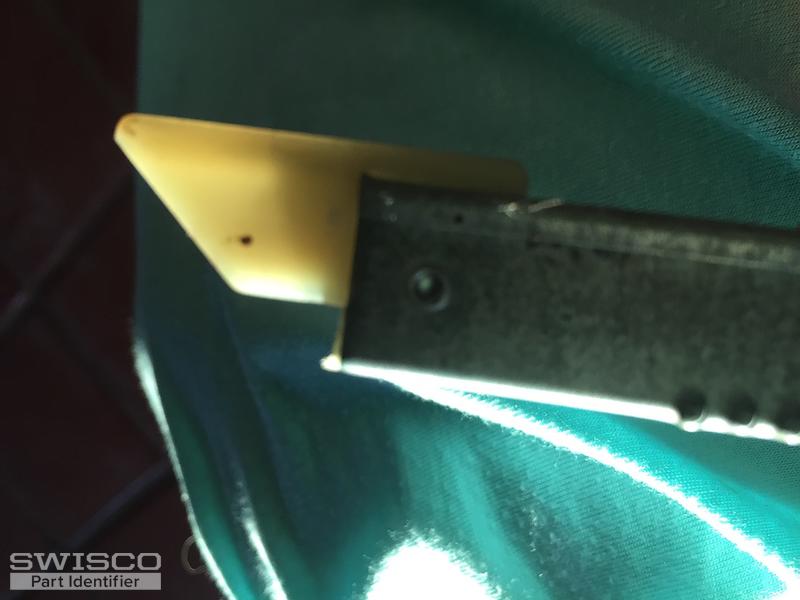

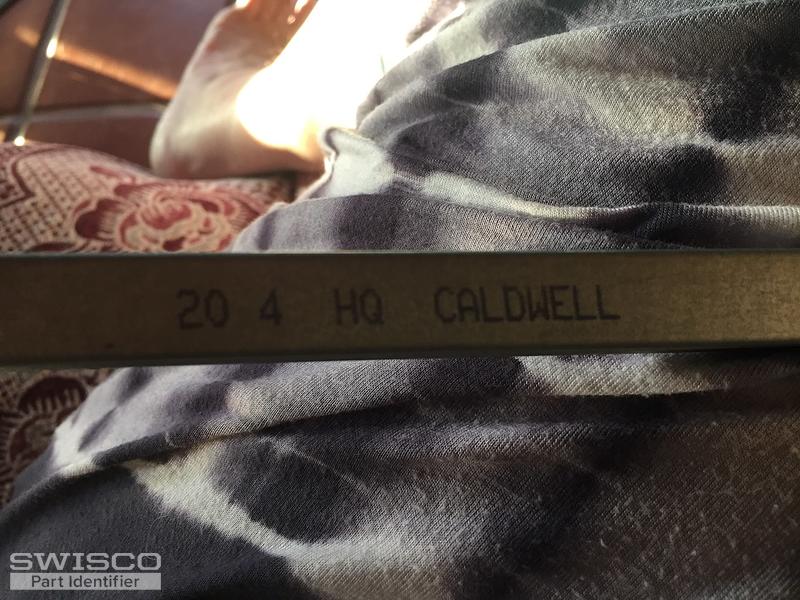

The broken window part you showing us is known as a channel balance. Two come to mind when looking at yours: our S351-21 and S390-21. These look almost look identical with the exception of the bottom balance shoe. The Series 351 comes with a 1" shoe and the Series 390 comes with a 1-1/8" shoe. You will need to measure the depth of your bottom balance shoe like in the diagram below to determine which balance would make the better match. Whichever one chosen will go with a 2040 option.

Comparison of 15-001 & 15-002
Comparison of 15-001 & 15-002
Home Owner from La Habra Heights

Hi

The shoe is 1-1/4 inches.

Tom
Tom from SWISCO
SWISCO
Expert

Can you confirm that measurement? A 1-1/4" depth would make it a truly massive shoe. I don't know of anything made in that size.
