Home Owner from Georgia

Sep 29, 2025 7:55 pm

To whom it may concern,

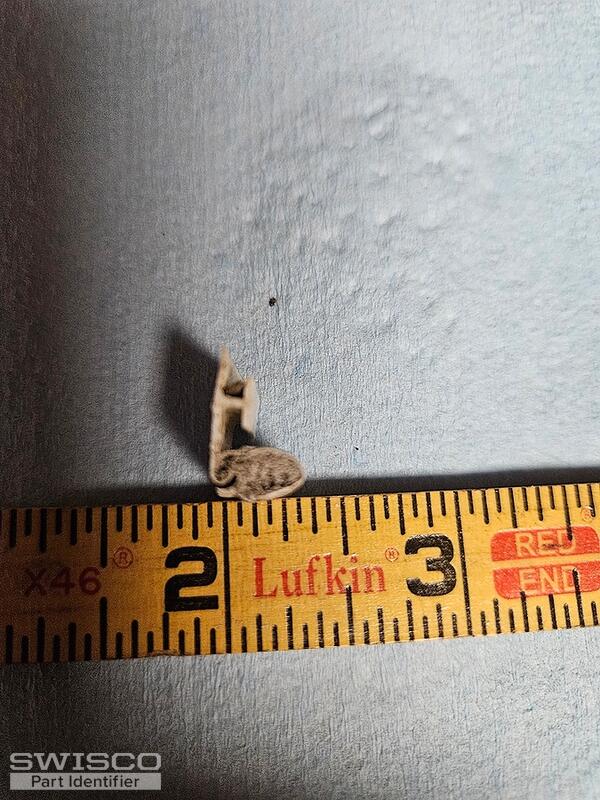

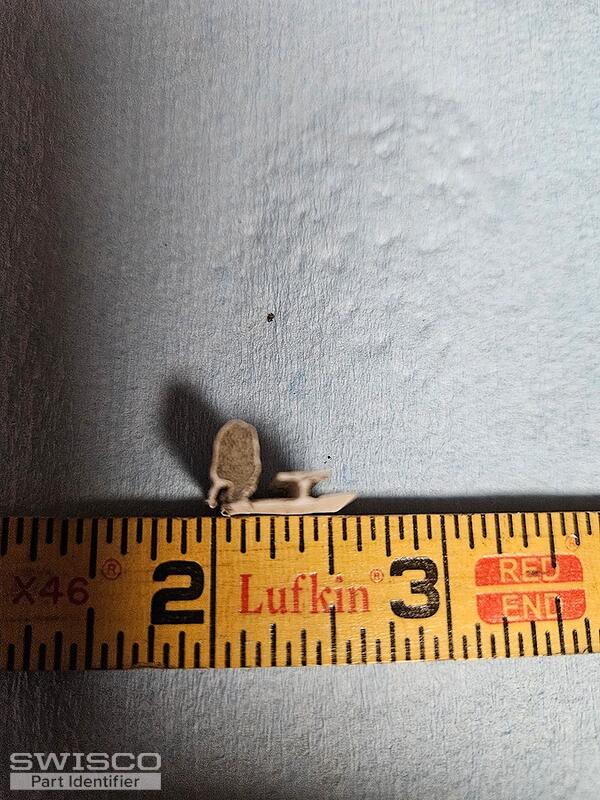

Hopefully these pictures are what you need to identify the correct size bulb weatherseal i need. If you need more pictures let me know .

Thanks,Keith

5 user uploaded images

9 Replies

Emily from SWISCO

Oct 6, 2025 10:23 am

Hi there Keith.

The 58-171 and 58-182 look like matches. The important difference is the size of the T-slot, which we can't determine from photos of a tape measure. Review the specifications and see what you think.

Profile diagram of 58-171

Profile of 58-182

Home Owner from Georgia

Oct 6, 2025 11:46 am

Emily,
Thank you for the response. I will measure the T slot and go from there.
Thanks,Keith

Emily from SWISCO

Oct 6, 2025 12:58 pm

No problem, Keith! Please don't hesitate to reach out if you have any questions.

Home Owner from Georgia

Oct 6, 2025 8:10 pm

Hi, Emily

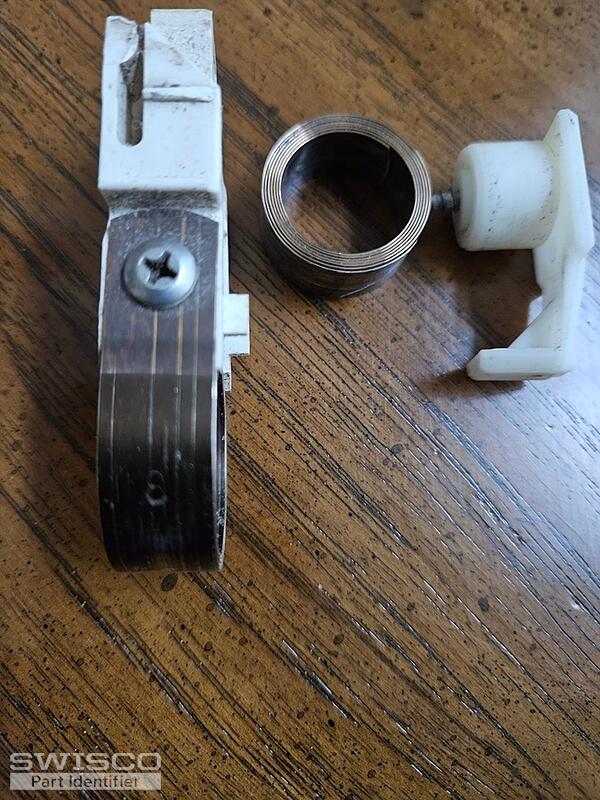

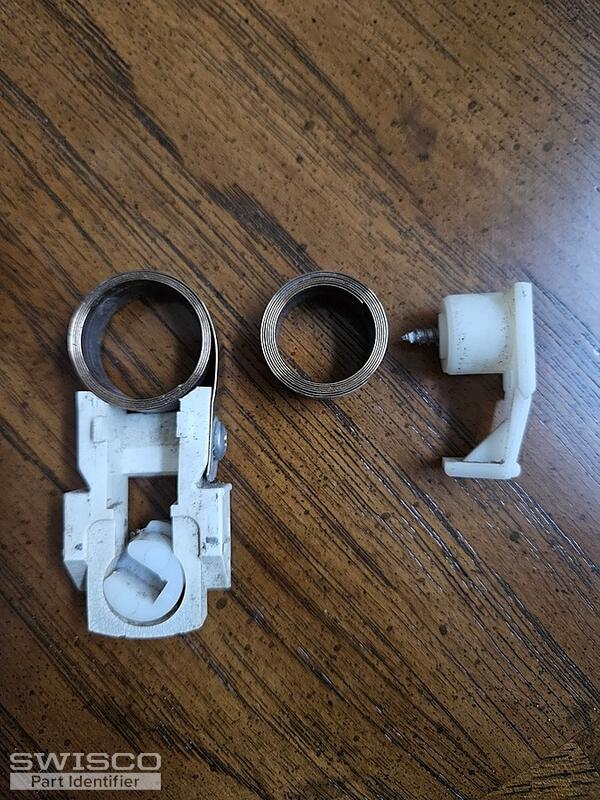

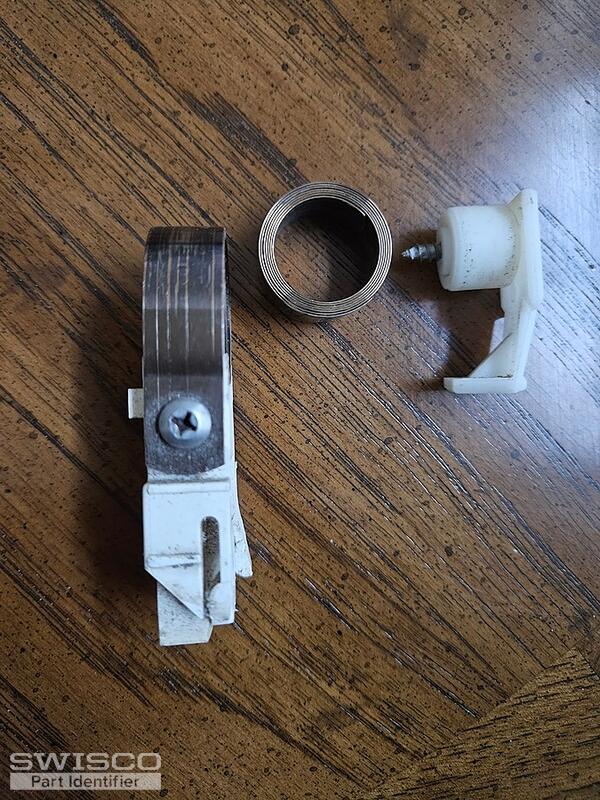

Coil balance is broken not sure which coil balance i need here are some pictures there is #8 stamped in the coli. Window sash weighs 19.2 lbs. 33.5 wide x 29.5 tall. If you need more info please let me know. Thanks, Keith

3 user uploaded images

Emily from SWISCO

Oct 7, 2025 10:13 am

The 15-180 shoe matches what you show here. Has this window ever given any issues when opening or closing? Two 8-pound springs on each side of the window would total 16 pounds of overall support, which wouldn't be strong enough for the sash weight given.

With a 19.2-pound sash, you can use two S190-540 5-pound springs on each side, which will total 20 pounds of overall support. You will also need the 15-181 double spring support.

Home Owner from Georgia

Oct 7, 2025 10:42 am

Emily,
I guess with the broken coils the 8 lb coils are not strong enough. I will take your advice on two 5 lb on each side. Some of our windows are two on each side. Thank you for your advice!
Keith

Emily from SWISCO

Oct 7, 2025 10:57 am

I'm happy I could help. Good luck with the repair!

Home Owner from Georgia

Oct 7, 2025 11:30 am

Thank you!
