Bypass closet door roller

Quick Learner from Sacramento, Ca

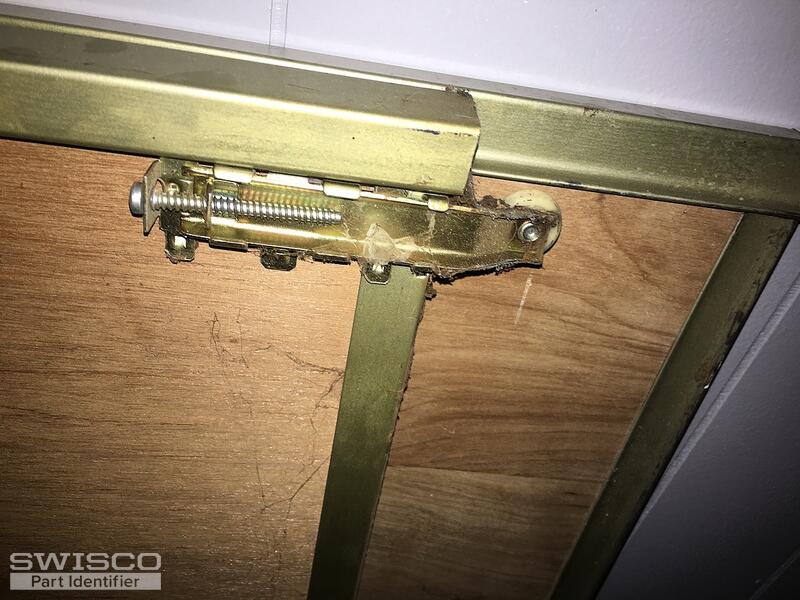

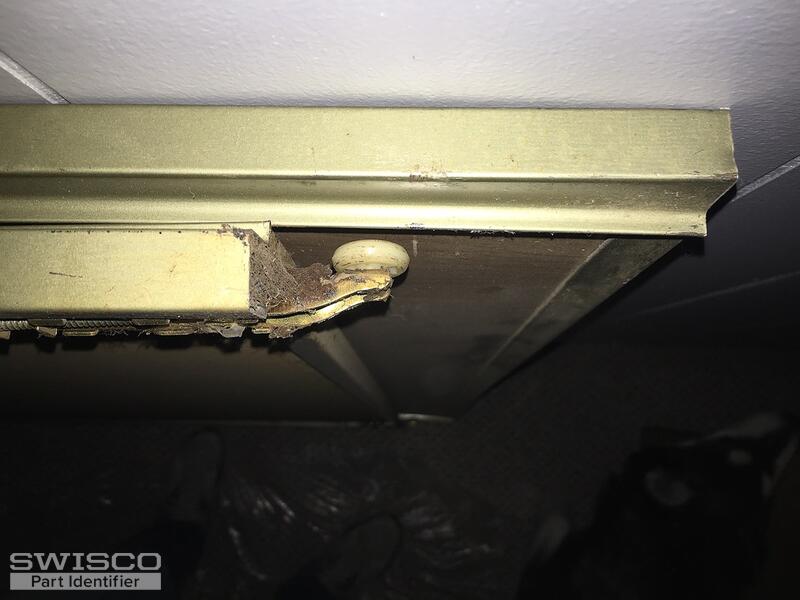

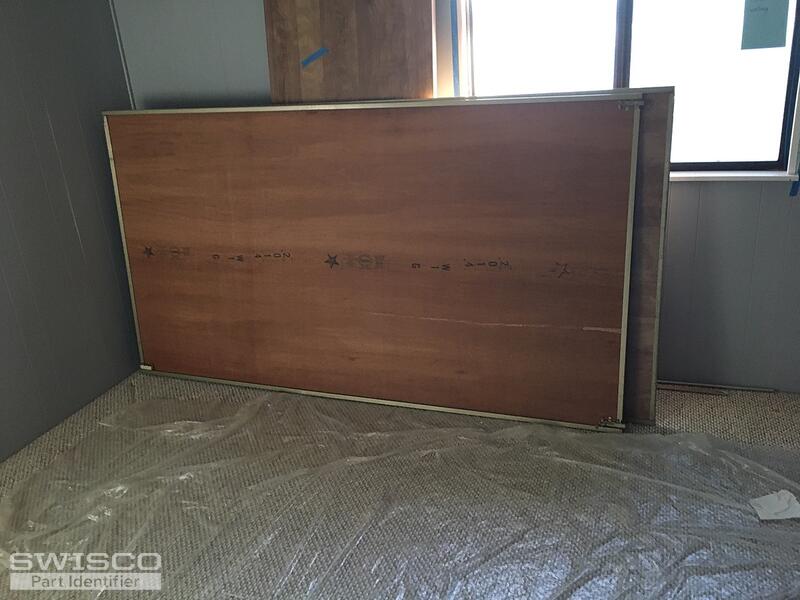

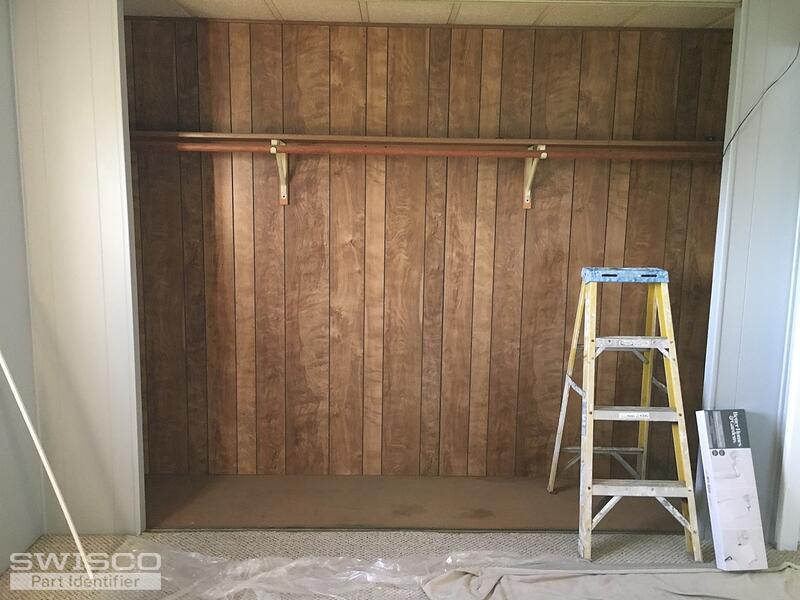

These doors are from a 70's? Single wide mobile home. They measure 95 x 89.5 I am missing one roller assembly. Not sure where to get it. Please refer to the photos

I live near Sacramento CA If there is somewhere you can suggest I go to near there. Or online is also an option. Thank you for your time.

4 user uploaded images
6 Replies
Jasmine
Jasmine from SWISCO
SWISCO
Expert

Thanks for reaching out! Your bypass closet door roller resembles our 23-046. Compare the dimensions to your roller to determine if this roller will work for you. See what you think.

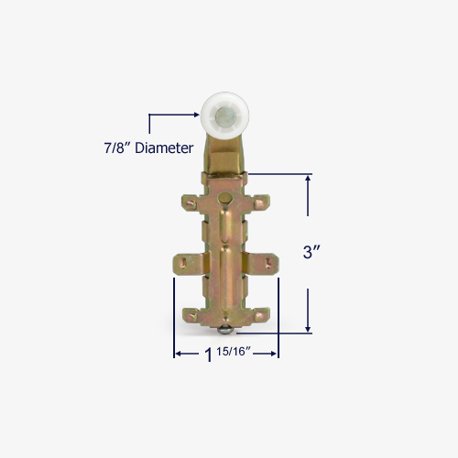

Dimensions for 23-046
Dimensions for 23-046

Quick Learner from Sacramento, Ca

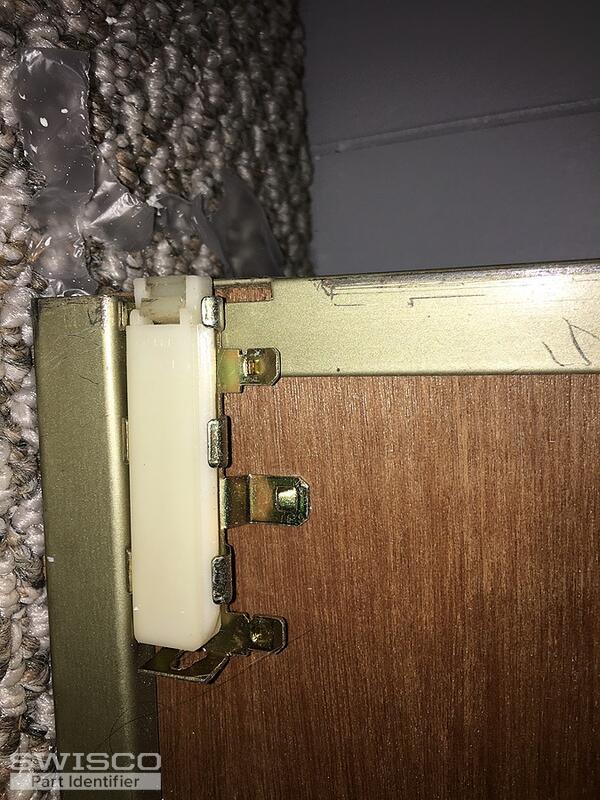

Thank you I will measure tomorrow, Friday. Would you also have the bottom stabilizer? Not sure if that's what it's called and I only have one to compare it to. Should the doors have 2 of these on the bottom as well?
1 user uploaded image
Jasmine
Jasmine from SWISCO
SWISCO
Expert

I believe the part you are searching for is what we refer to as the bottom mount guide. Take a look at part 23-021 and compare it to your bottom mount to determine if this would work for you.

Dimensions for 23-021
Dimensions for 23-021

Quick Learner from Sacramento
Yes I believe both of those are correct. How do I order 4 of each?
Thank you
Jasmine
Jasmine from SWISCO
SWISCO
Expert

You can place the order for these items via the website. Once you've added each item to your online cart, you'll be able to select your shipping options and checkout.

If you need assistance with placing your order, you may call (888) 991-1929 to speak with a member of customer service.
