CALDWELL Window Balance

A quick learner from California says:
I need replacement for Single hung window balance. The balance is stamped as "32 6 JP CALDWELL". I have attached the photos. I need two of these. Please help me identify part number. Thanks.
Thumbnail of the uploaded file named E58FEBDC-216E-4C9F-9496-441256737BC7.jpeg
Thumbnail of the uploaded file named 22FBCDE7-B1BB-4000-8F1E-6445499E6C00.jpeg
Thumbnail of the uploaded file named 636FD5A8-6528-4700-A598-21B02B4E1A55.jpeg

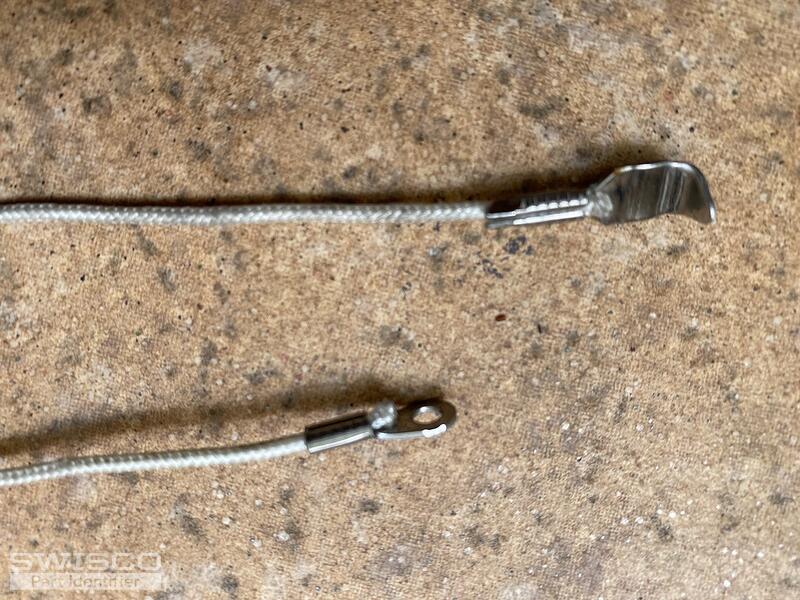

Thumbnail of the uploaded file named 0BFF1B60-D2F8-4577-90DF-6645576B42FA.jpeg

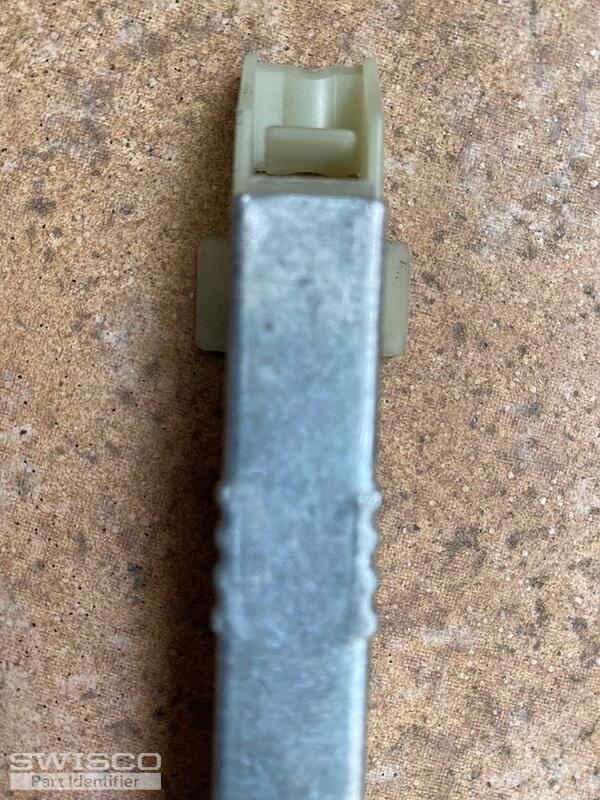

Thumbnail of the uploaded file named A80C8BC2-BF44-4A67-86EE-97049EC78690.jpeg
Profile picture of Casey
Casey from SWISCO responded:

Hello,

With this combination of attachments, you could have either an S380-33 or S385-33 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need 3260 spring strength options for your replacement balances.

Thank you and let us know if you have any other questions or concerns.


Comparison of the S380 and S385 balance shoes.
Comparison of the S380 and S385 balance shoes.
